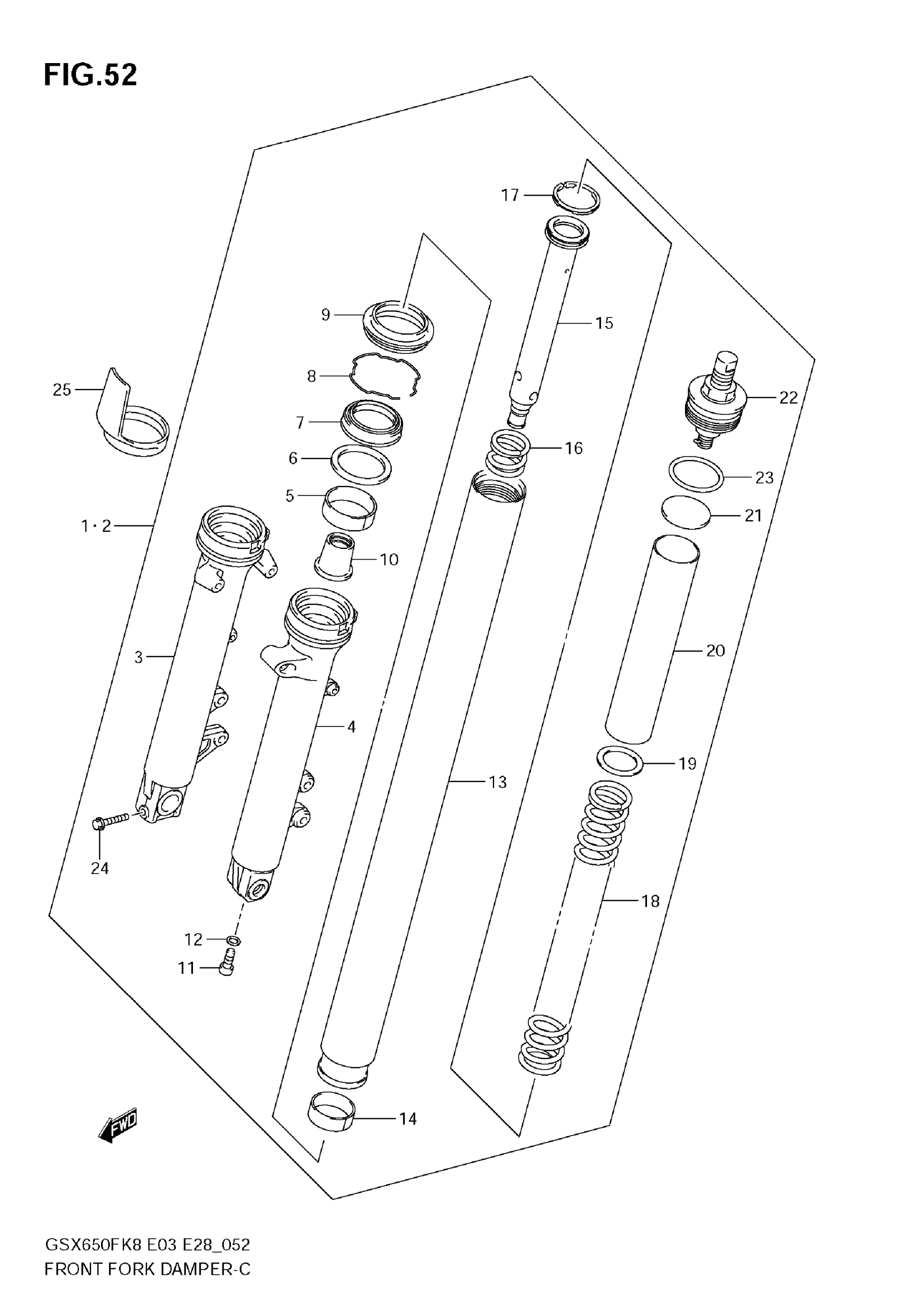

Suzuki GSX650F (2009) FRONT FORK DAMPER Diagram

#

Description
Price

1

DAMPER ASSY, FRONT FORK RH

51103-17H10

Unavailable

2

DAMPER ASSY, FRONT FORK LH | Includes Item(s) 3 - 23

51104-17H10

Unavailable

3

TUBE, OUTER RH

51130-17H00

Unavailable

4

TUBE, OUTER LH

51140-17H00

Unavailable

5

METAL, SLIDE

51167-26E10

$23.09

6

WASHER

51158-05A00

$5.34

7

SEAL, OIL

51153-10G50

$18.94

8

RING, STOPPER

51156-49440

$4.75

9

SEAL, DUST

51173-14F00

$21.12

10

PIECE, OIL LOCK

51195-33D10

$29.57

11

BOLT

51147-16510

$4.09

12

WASHER

51148-41310

$2.14

13

TUBE, INNER

51110-17H00

Unavailable

14

BUSH, SLIDE

51121-23EA0

$26.03

15

CYLINDER

51146-17H20

Unavailable

16

SPRING

51177-06C00

$14.73

17

RING, PISTON

51196-31F00

$6.63

18

SPRING, FRONT

51171-17H20

Unavailable

19

SEAT, SPRING LOWER

51356-17H00

Unavailable

20

COLLAR, SPRING

51176-12D10

Unavailable

21

O RING

51192-27A00

$7.30

22

CAP

51351-31FA0

Unavailable

23

O RING

09280-32001

$2.07

24

BOLT

51451-10G00

$4.81

25

PROTECTOR

51201-31F00

Unavailable
