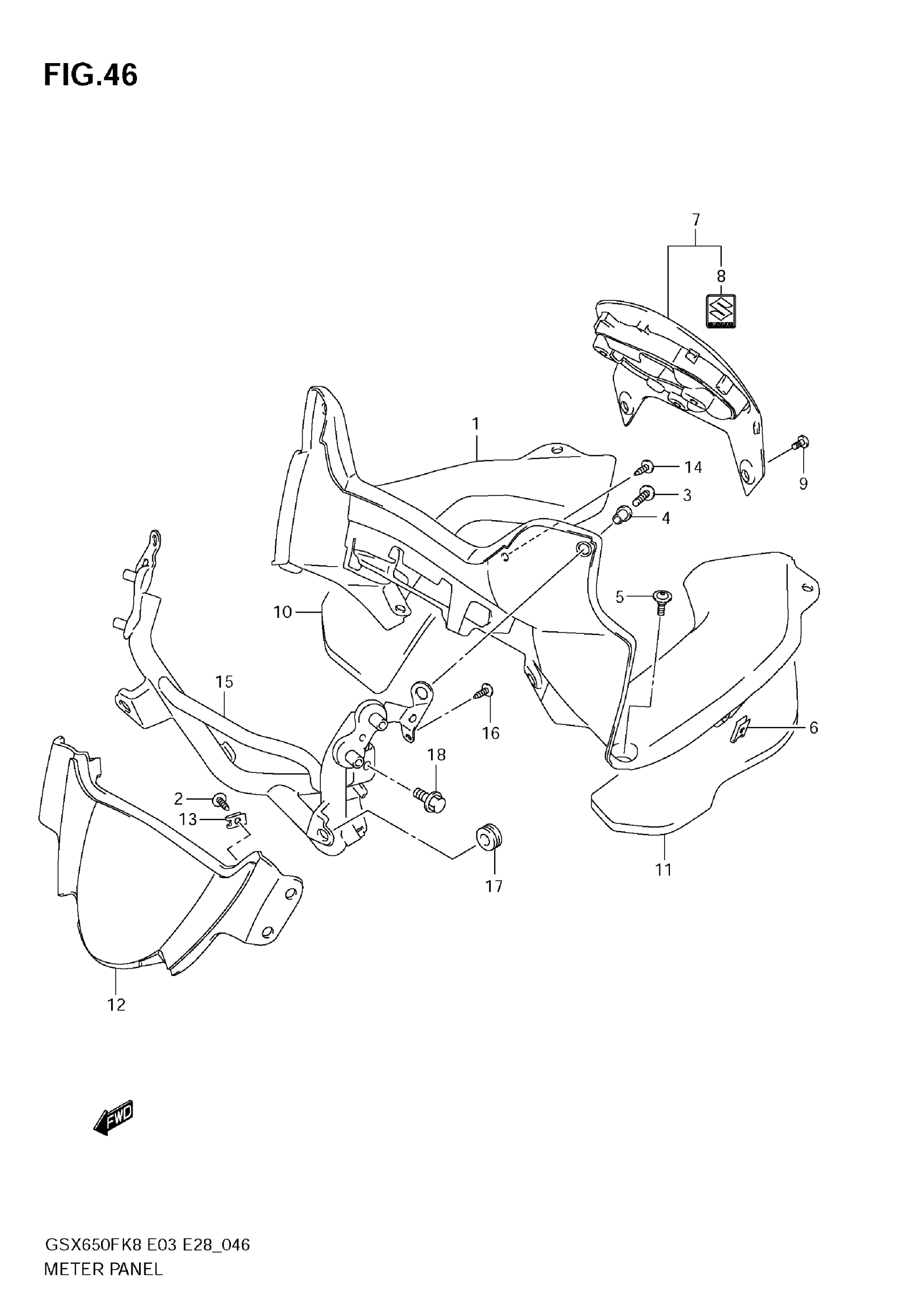

Suzuki GSX650F (2009) METER PANEL Diagram

#

Description
Price

1

PANEL,METER This part replaces 94671-17H00.

94671-17H01

$135.68

2

SCREW

03541-1516B

$2.87

3

SCREW, UPPER

02142-1520B

$2.28

4

NUT

09159-05019

$7.14

5

SCREW, SIDE

09139-05074

$2.61

6

NUT

09148-05052

$3.37

7

LID COMP,METER | Includes Item(s) 8 This part replaces 94640-17H00.

94640-17H10

$119.33

8

EMBLEM

68281-35F00

$16.45

9

SCREW

09139-06114

$7.95

10

CUSHION, PANEL RH

94674-17H00

Unavailable

11

CUSHION, PANEL LH

94684-17H00

Unavailable

12

PANEL, METER FRONT

94672-17H00

Unavailable

13

NUT

09148-05038

$1.97

14

SCREW

03541-1516B

$2.87

15

BRACE, COWLING

94510-17H00

$389.20

16

SCREW

03241-0516B

$1.74

17

CUSHION

09320-08028

$3.04

18

BOLT, BRACE

01550-0820B

$2.83
