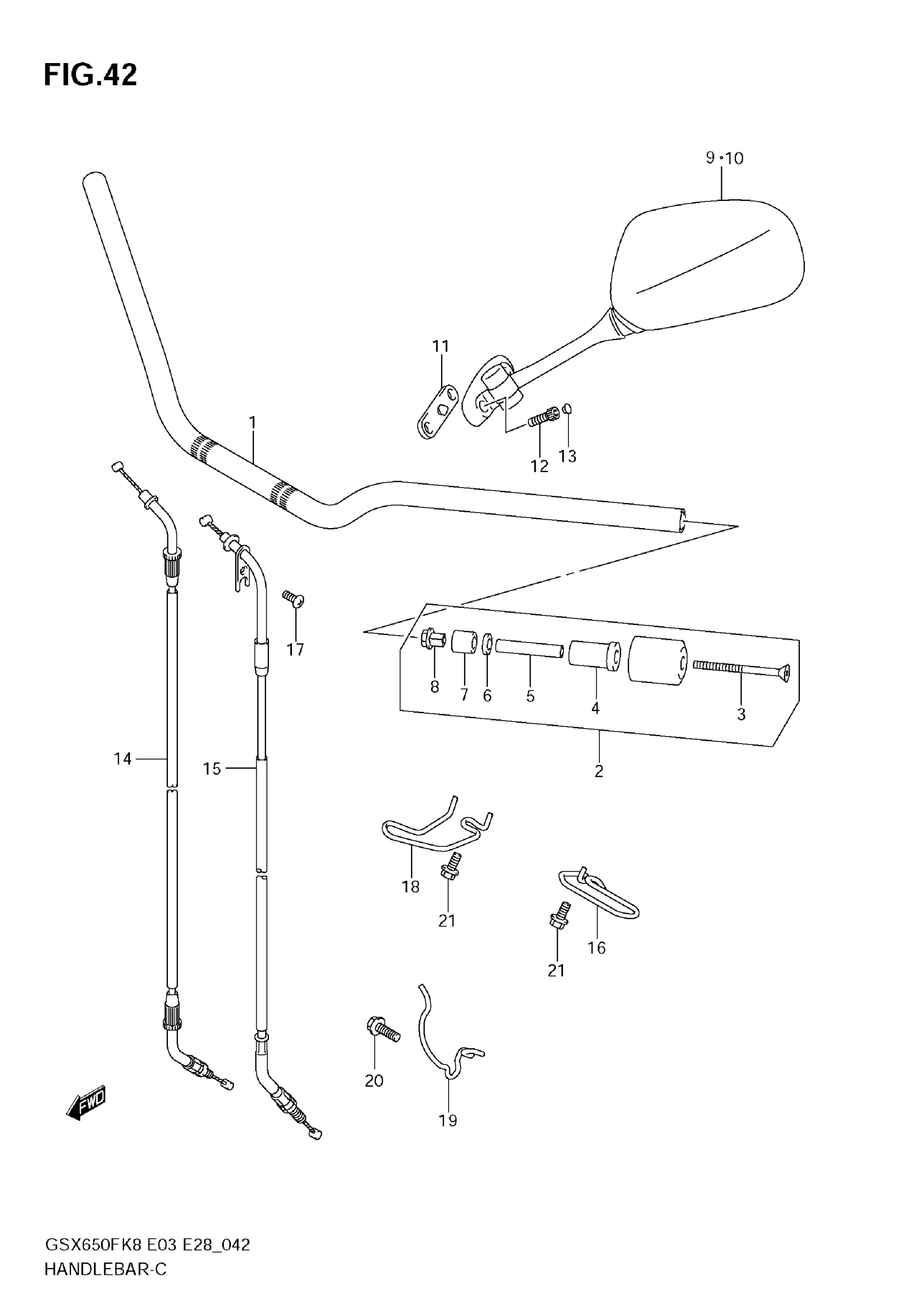

Suzuki GSX650F (2009) HANDLEBAR Diagram

#

Description
Price

1

HANDLEBAR This part replaces 56111-49G10.

56111-49G11

$209.51

2

BALANCER SET,HA | Includes Item(s) 3 - 8 This part replaces 56200-38822.

56200-38824

$44.33

3

SCREW

09127-06018

$3.38

4

EXPANDER, OUTER

56272-19D00

Unavailable

5

SPACER

56276-17D00

$5.07

6

WASHER

09160-06131

$2.50

7

.EXPANDER,HANDLE BALANCER This part replaces 56272-10G00.

56272-10G01

$4.72

8

NUT

56273-10G10

$8.65

9

MIRROR, REAR VIEW RH

56500-38G21

$173.21

10

MIRROR, REAR VIEW LH

56600-38G21

$173.21

11

CUSHION

94576-24F00

$6.52

12

BOLT

07130-0616B

$2.39

13

CAP

09250-05009

$2.19

14

CABLE ASSY,THRO This part replaces 58300-18H40.

58300-18H41

$44.07

15

CABLE ASSY, THROTTLE NO.2

58300-18H50

Unavailable

16

GUIDE, THROTTLE CABLE

58631-38G00

Unavailable

17

SCREW This part replaces 02142-0510A.

02142-0510B

$1.78

18

GUIDE, THROTTLE CABLE

58621-18H10

Unavailable

19

GUIDE, CABLE

58622-38G00

Unavailable

20

BOLT, GUIDE RH

01550-0620A

$1.97

21

BOLT, GUIDE

01550-0612A

$1.97
