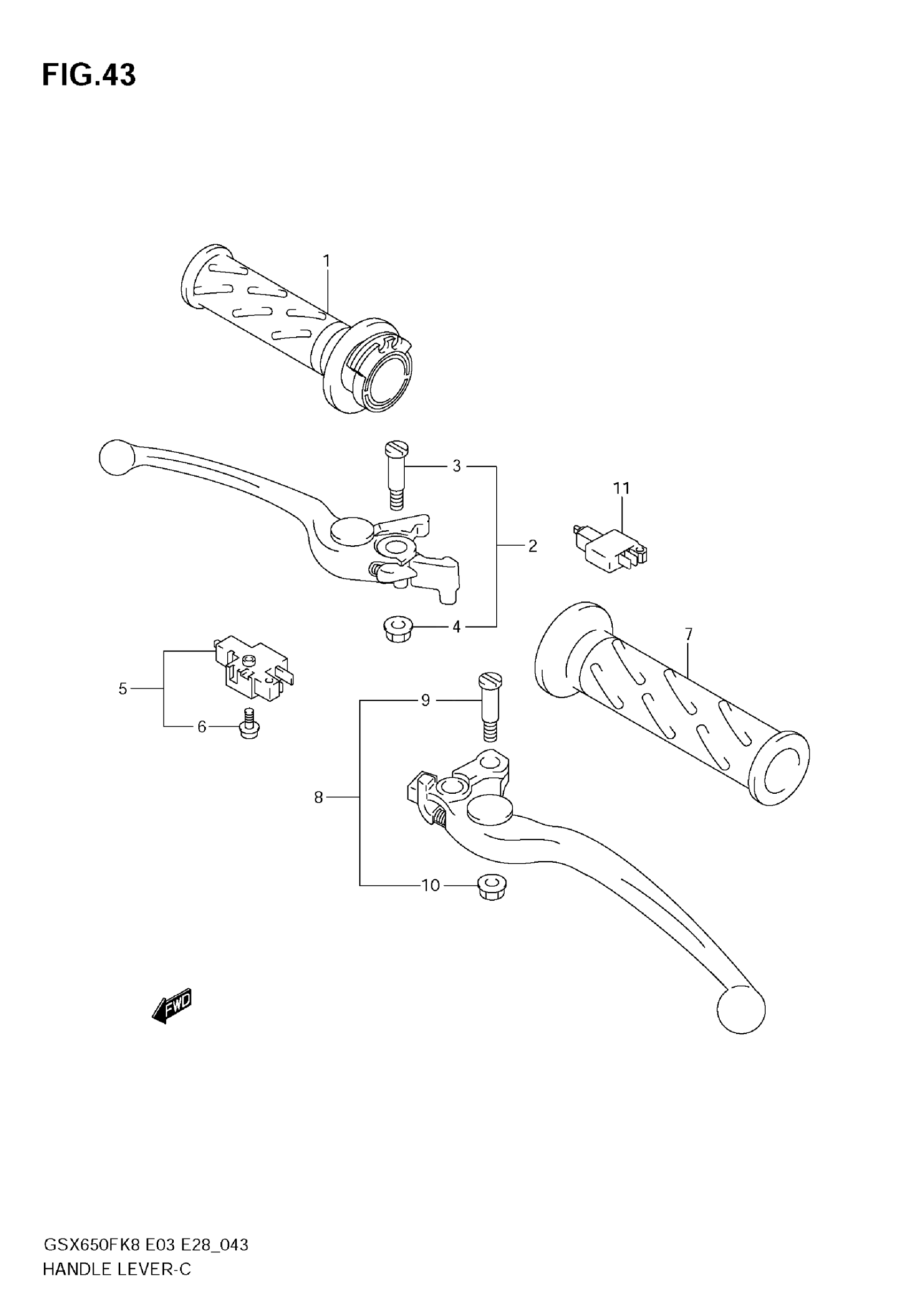

Suzuki GSX650F (2009) HANDLE LEVER Diagram

#

Description
Price

1

GRIP, THROTTLE (BLACK) This part replaces 57110-29G01.

57110-29G02-291

$27.40

2

LEVER ASSY, FR BRAKE | Includes Item(s) 3 - 4 This part replaces 57300-44G10.

57300-44G12

$50.00

3

.BOLT, PIVOT This part replaces 57431-17H00.

57431-17H02

$6.72

4

NUT

08319-2106A

$1.89

5

SWITCH ASSY,FR BRAKE | Includes Item(s) 6 This part replaces 57460-17C11.

57460-14J02

$35.21

6

SCREW

57465-17C00

$2.37

7

GRIP, LH (BLACK) This part replaces 57211-22D01.

57211-22D02-291

$13.32

8

LEVER ASSY,CLUTCH | Includes Item(s) 9 - 10 This part replaces 57500-24F20.

57500-24F22

$52.42

9

.BOLT, PIVOT This part replaces 57431-17H00.

57431-17H02

$6.72

10

NUT

08316-1006B

$2.50

11

SWITCH ASSY,CLUTCH

57560-02FA0

$21.58
