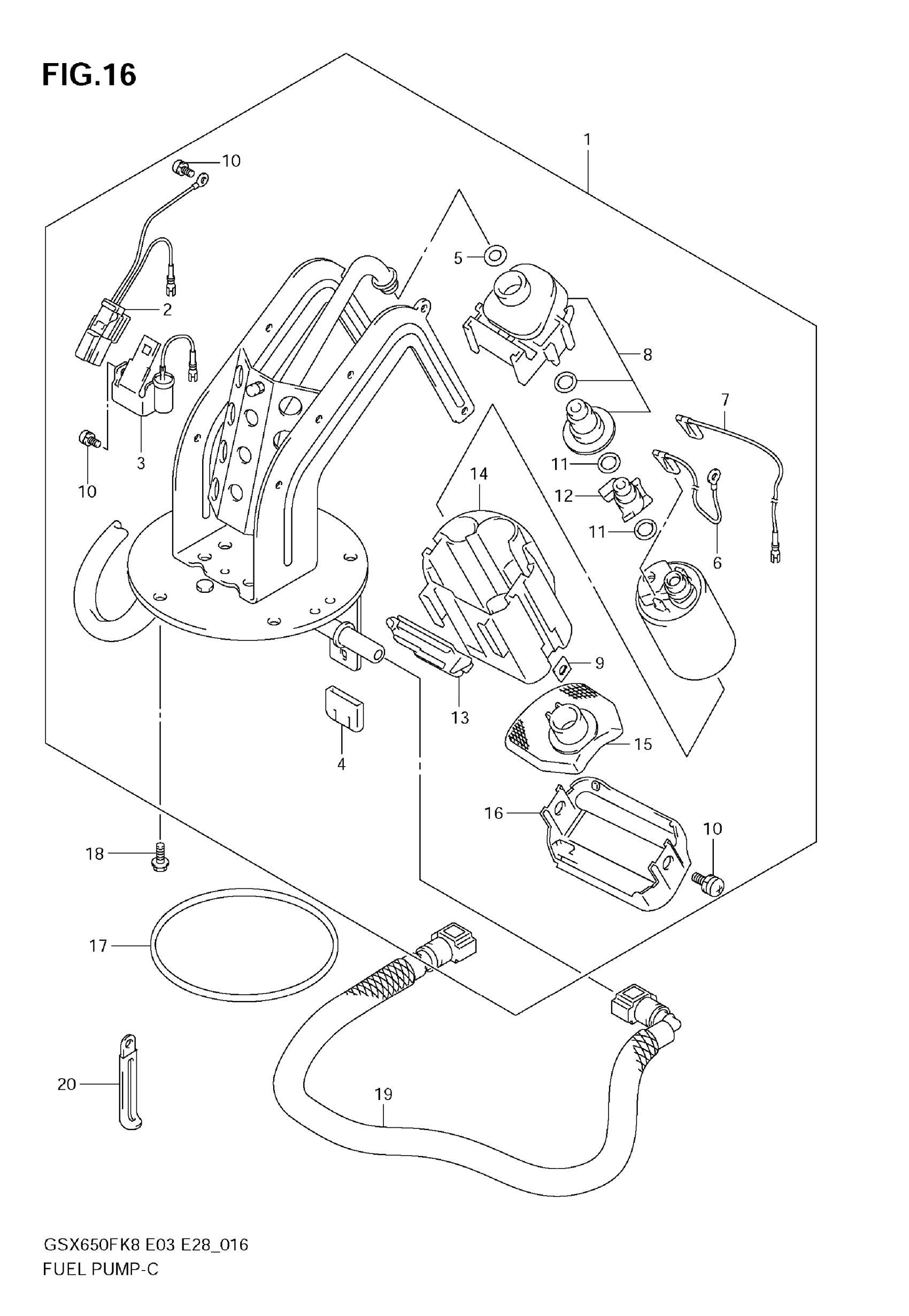

Suzuki GSX650F (2009) FUEL PUMP Diagram

#

Description
Price

1

PUMP ASSY,FUEL | Includes Item(s) 2 - 16 This part replaces 15100-18H00.

15100-18H11

$530.49

2

HARNESS, GAUGE

15246-18H00

$87.70

3

THERMISTOR

15240-18H00

$203.42

4

CAP

15583-18H00

Unavailable

5

O RING

15113-35F00

$8.91

6

WIRE, EARTH

15114-05H00

Unavailable

7

WIRE, LEAD

15115-05H00

Unavailable

8

REGULATOR

15610-18H00

$201.52

9

STOPPER

15117-05H00

$7.53

10

SCREW

15116-10F00

$5.58

11

O RING

15113-05H00

$19.98

12

JOINT

15112-05H00

$28.12

13

COVER

15118-18H00

$30.70

14

CUP

15111-18H00

$42.43

15

STRAINER

15420-05H00

$41.17

16

CAP This part replaces 15425-18H00.

15426-05H00

$18.42

17

O-RING

15201-35F00

$27.60

18

BOLT

07120-0612A

$2.50

19

HOSE,FUEL This part replaces 15810-18H00.

15810-18H10

$119.18

20

CLAMP

09404-06429

$1.83
