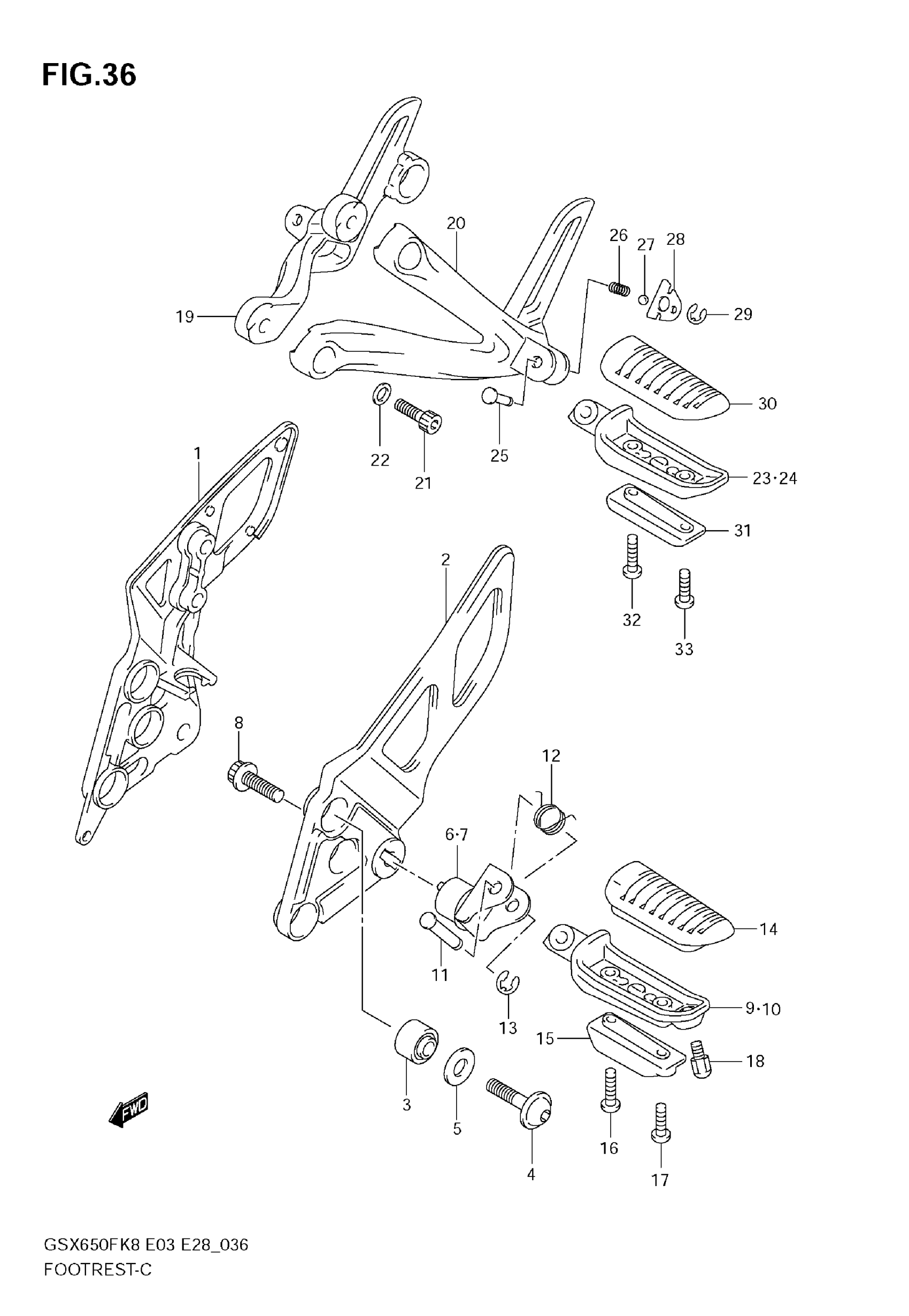

Suzuki GSX650F (2009) FOOTREST Diagram

#

Description
Price

1

BRACKET, FRONT FOOTREST RH

43511-38G00

$185.15

2

BRACKET, FRONT FOOTREST LH

43521-38G00

$185.15

3

BUSH This part replaces 09319-08047.

09319-08048

$12.77

4

BOLT

09106-08147

$6.25

5

WASHER, OUTER

09161-12009

$4.32

6

HOLDER, FOOTREST RH

43530-18H00

Unavailable

7

HOLDER, FOOTREST LH

43540-18H00

Unavailable

8

BOLT

09106-10064

$4.90

9

BAR, RH

43511-44G00

$59.87

10

BAR, LH

43521-44G00

$59.87

11

PIN

09208-08018

$2.79

12

SPRING

09448-14046

$4.17

13

E RING

08332-1106A

$1.49

14

RUBBER

43550-44G00

$35.55

15

BALANCER

43536-44G00

$45.09

16

SCREW, INNER

02142-0530B

$2.60

17

SCREW, OUTER

02142-0525B

$2.34

18

.BOLT,BANK SENSOR

43576-07D01

$8.85

19

BRACKET, PILLION RH

43811-18H10

$185.15

20

BRACKET, PILLION LH

43821-18H00

$181.73

21

BOLT

09106-08172

$3.27

22

WASHER

09164-08015

$3.21

23

BAR, PILLION RH

43611-44G00

$54.83

24

BAR, PILLION LH

43621-44G00

$54.83

25

PIN

09208-08020

$3.23

26

SPRING

09440-05005

$1.58

27

BALL

06111-07004

$1.49

28

PLATE,PILLION F This part replaces 43816-01H01.

43816-01H02

$5.88

29

E RING

08332-1106A

$1.49

30

RUBBER

43550-44G00

$35.55

31

BALANCER,PILLIO This part replaces 43534-44G00.

43534-44G01

$42.83

32

SCREW, INNER

02142-0525B

$2.34

33

SCREW, OUTER

02142-0520B

$1.78
