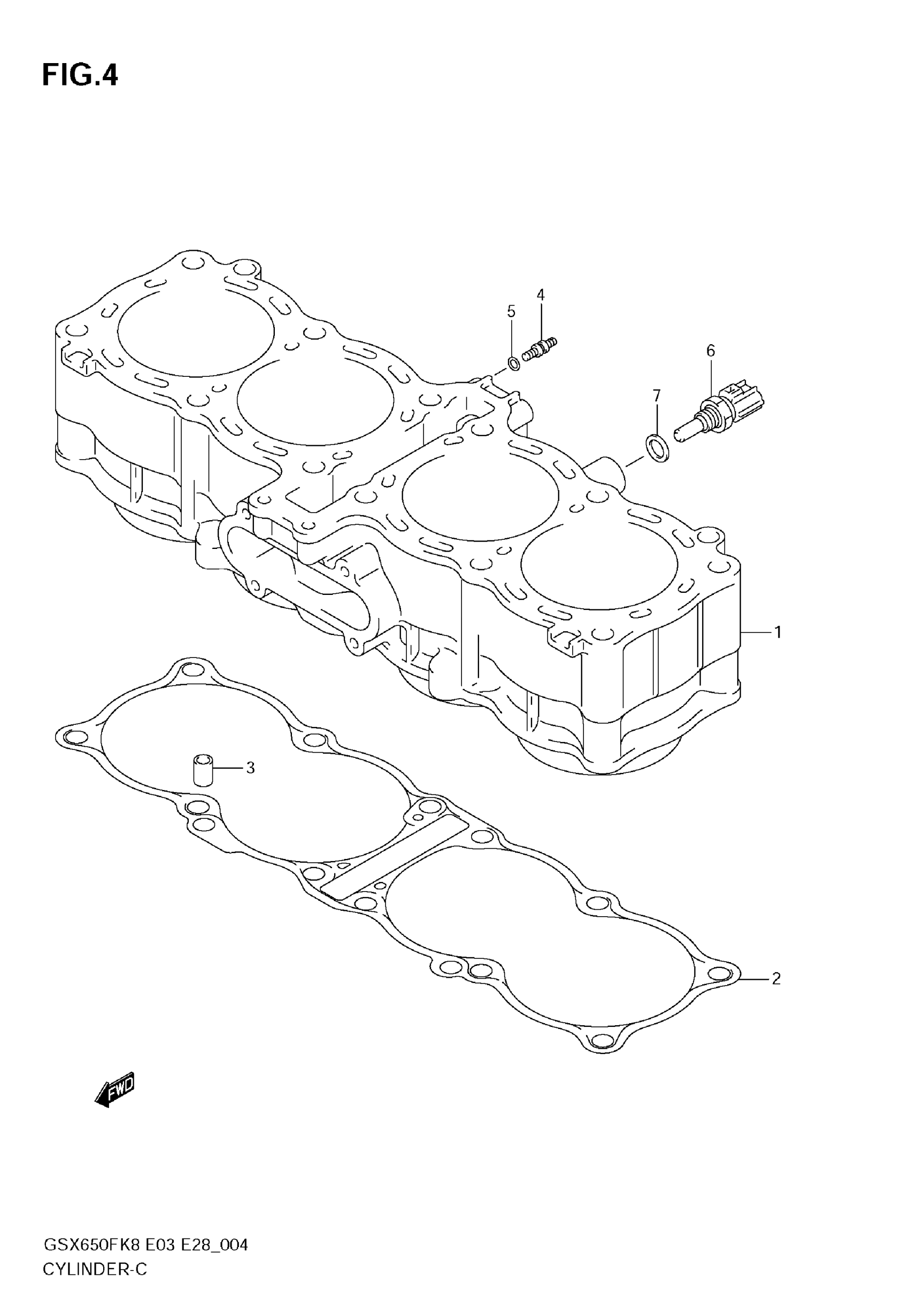

Suzuki GSX650F (2009) CYLINDER Diagram

#

Description

Price

1

CYLINDER

11211-17H00-0F0

Unavailable

2

GASKET, CYLINDER

11241-18H00

$40.48

3

PIN

04211-11169

$1.78

4

JET, OIL GALLERY

09493-80005

$16.25

5

O RING

09280-04004

$1.91

6

SENSOR, WATER TEMP

13650-49X00

$90.19

7

GASKET

09168-12017

$1.95
