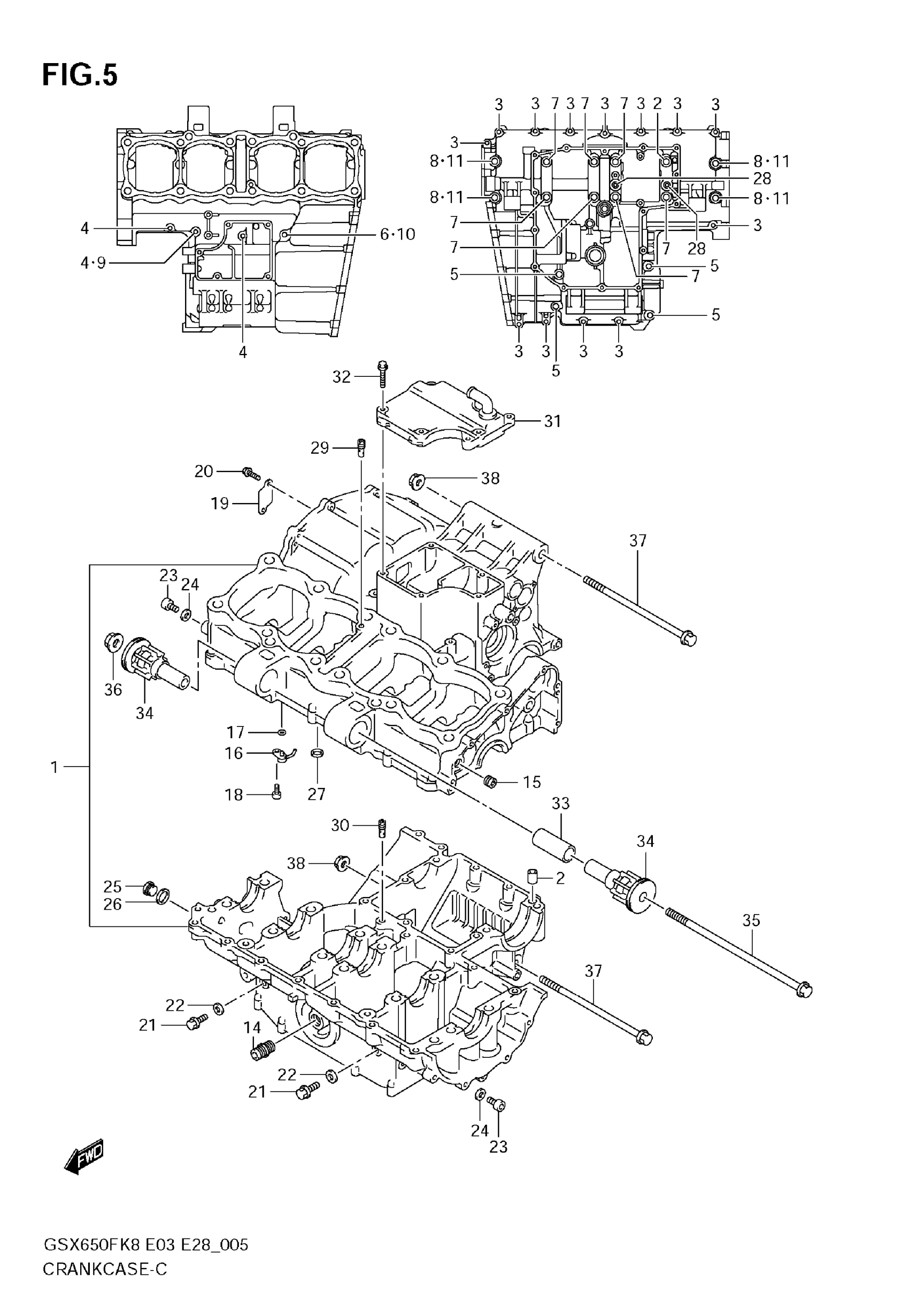

Suzuki GSX650F (2009) CRANKCASE Diagram

#

Description
Price

1

CRANKCASE SET | Includes Item(s) 2 - 14

11300-17860

Unavailable

2

PIN,CRANKCASE

11319-33E50

$5.32

3

BOLT

01547-0640A

$2.32

4

BOLT

01547-0655A

$2.42

5

BOLT

01550-0870A

$4.32

6

BOLT

01550-0890A

Unavailable

7

BOLT (9X135)

09103-09005

$8.83

8

BOLT (9X95)

09103-09008

$7.59

9

GASKET (5.8X13X1.2)

09168-06023

$2.35

10

GASKET (8.2X14X1)

09168-08016

$1.65

11

.GASKET (10.2X20X2.3)

09168-10031

$2.03

12

BEARING, THRUST RH (GREEN) | SEE ILLUS ON FIG.8

12228-17E00-0D0

$9.50

13

BEARING, THRUST LH (RED) | SEE ILLUS ON FIG.8

12228-17E00-0A0

$11.38

13

BEARING, THRUST LH (BLACK)

12228-17E00-0B0

$9.69

13

BEARING, THRUST LH (BLUE)

12228-17E00-0C0

$9.69

13

BEARING, THRUST LH (GREEN)

12228-17E00-0D0

$9.50

13

BEARING, THRUST LH (YELLOW)

12228-17E00-0E0

$11.38

13

BEARING, THRUST LH (WHITE)

12228-17E00-0F0

$11.60

14

UNION,OIL STAND

16591-06B01

$7.05

15

JET,OIL GALLERY (3.6)

11329-02F00

$6.70

16

JET, PISTON COOLING

11390-18H00

Unavailable

17

O RING (D:1.2,ID:4.0)

09280-04004

$1.91

18

BOLT, PISTON COOLING

09106-06075

$2.48

19

PLATE, OIL SEPARATOR

11317-18H00

Unavailable

20

BOLT

01547-0612A

$2.03

21

PLUG, OIL GALLERY

01550-0612A

$1.97

22

GASKET

09168-06018

$1.77

23

PLUG, OIL GALLERY

07130-0812A

$3.72

24

GASKET (8.2X14X1)

09168-08016

$1.65

25

PLUG, OIL GALLERY

09248-16012

$4.64

26

GASKET, OIL GALLERY

09168-16002

$1.91

27

O RING (D:1.9,ID:7.8)

09280-08012

$3.68

28

O RING (D:1.9,ID:12.6)

09280-12009

$3.18

29

JET, HEAD

09493-28012

$16.87

30

JET, T/M

09493-36006

$16.87

31

COVER, BREATHER

11330-18H00

Unavailable

32

BOLT

09103-06213

$2.47

33

SPACER

11611-48G00

Unavailable

34

BUSH

11652-10G30

$24.62

35

BOLT (10X215) This part replaces 09103-10041.

09103-10041-A05

$10.40

36

NUT

08319-3110A

$2.73

37

BOLT (12X155)

09103-12031

Unavailable

38

NUT

08319-3112A

$3.76
