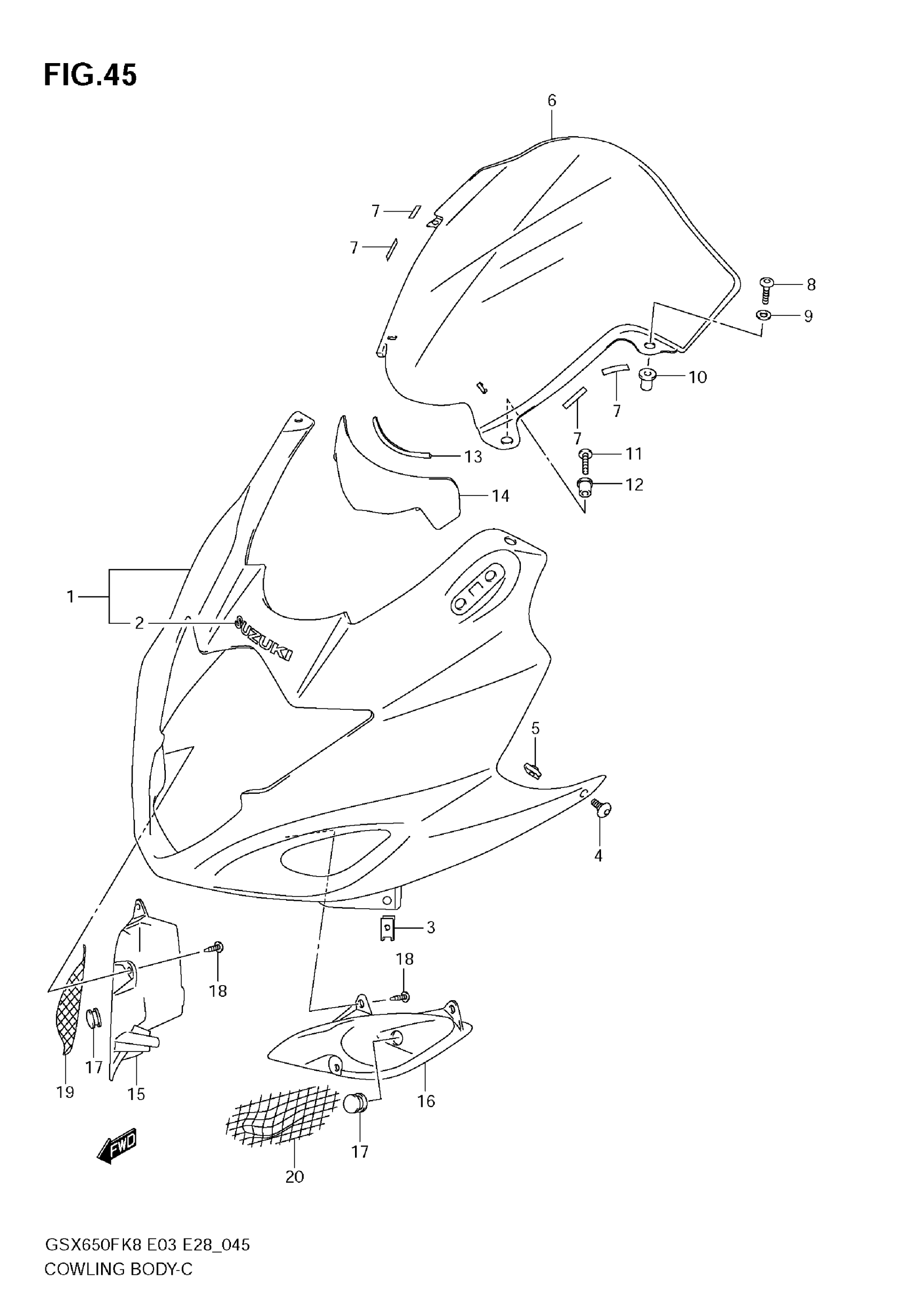

Suzuki GSX650F (2009) COWLING BODY Diagram

#

Description
Price

1

BODY,COWLING | FOR YAY This part replaces 94410-17H00-YAY.

94410-17H01-YAY

$615.68

1

BODY,COWLING | FOR CWH This part replaces 94410-17H00-YKY.

94410-17H01-YKY

$596.88

1

BODY,COWLING | FOR EGR,FKE This part replaces 94410-17H00-4CX.

94410-17H01-4CX

$557.18

1

BODY, COWLING (ORANGE) | FOR EAJ

94410-17H00-YME

Unavailable

1

BODY,COWLING | FOR GLR; Includes Item(s) 2 - 2 This part replaces 94410-17H00-YSF.

94410-17H01-YSF

$596.88

2

EMBLEM,"SUZUKI" | FOR YAY This part replaces 68641-19F00-YU8.

68641-19F01-YU8

$9.92

2

EMBLEM,"SUZUKI" | FOR YKY,YSF This part replaces 68641-19F00-YBD.

68641-19F01-YBD

$12.82

2

EMBLEM,"SUZUKI" | FOR 4CX This part replaces 68641-19F00-YD8.

68641-19F01-YD8

$10.30

2

.EMBLEM,"SUZUKI" (BLACK) | FOR YME This part replaces 68641-19F00-019.

68281-24F11-019

$10.89

3

NUT COWL

94484-24F00

$4.03

4

SCREW

09139-05077

$3.25

5

NUT, PANEL

09148-05052

$3.37

6

WIND SCREEN

94611-17H00

$250.35

7

TAPE, SCREEN

94433-06G00

Unavailable

8

SCREW, SCREEN

09139-05042

$2.90

9

WASHE

08322-0105B

$2.26

10

NUT, SCREEN

09159-05019

$7.14

11

SCREW, LOWER

02142-1516B

$2.83

12

NUT, LOWER

09159-05048

$7.22

13

CUSHION, SCREEN

94612-01H00

$4.91

14

COVER, SCREEN This part replaces 94612-17H00.

94612-17H01

$37.82

15

COVER, INTAKE RH

94421-17H00

$27.97

16

COVER, INTAKE LH

94431-17H00

$27.07

17

CUSHION,NET COV This part replaces 43585-18G00.

43585-18G01

$3.67

18

SCREW

03241-0512B

$1.60

19

NET, INTAKE RH

94412-17H00

Unavailable

20

NET, INTAKE LH

94413-17H00

$50.50
