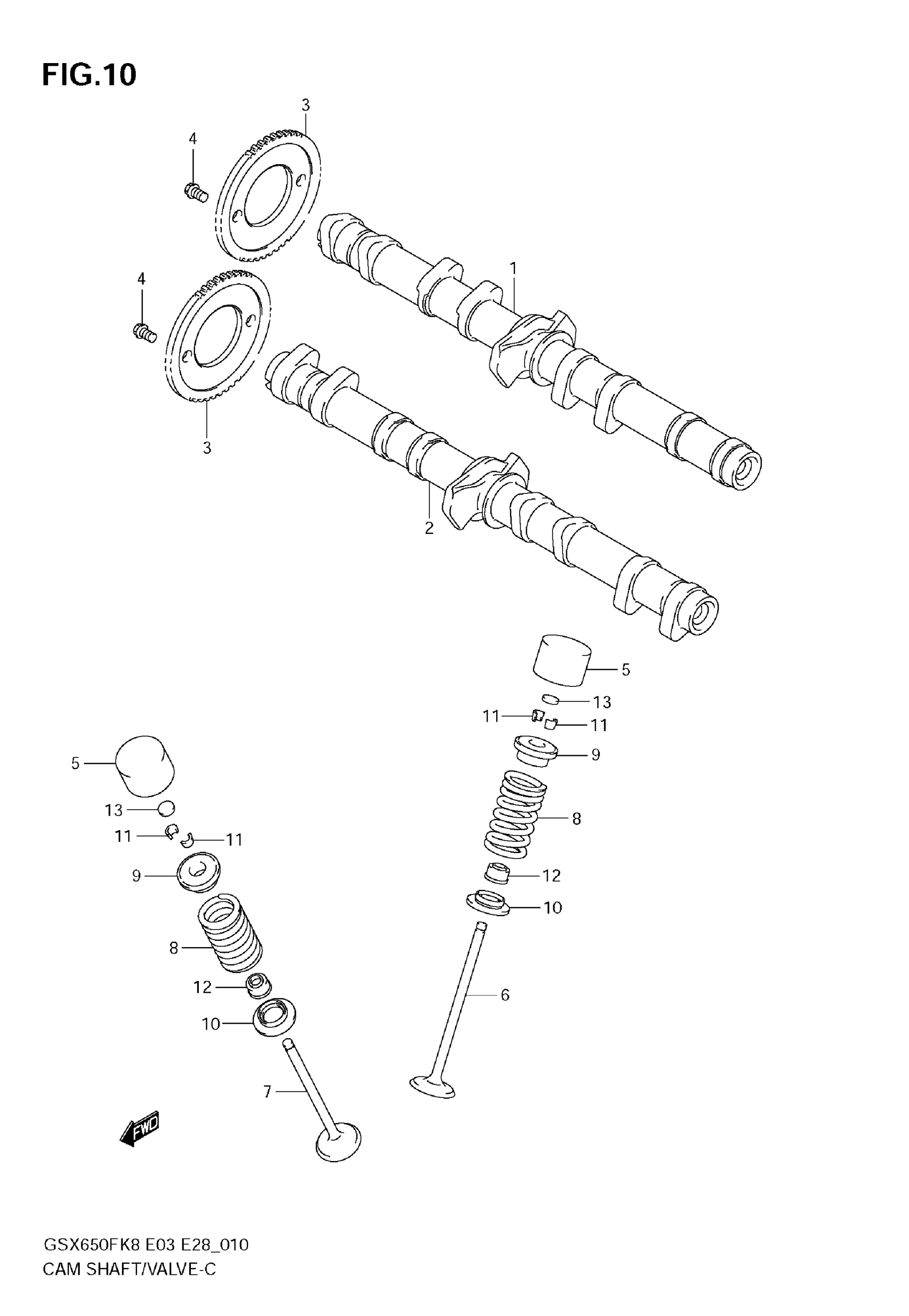

Suzuki GSX650F (2009) CAM SHAFT - VALVE Diagram

#

Description
Price

1

CAMSHAFT, INTAKE

12710-17H00

Unavailable

2

CAMSHAFT, EXHAUST

12720-17H00

Unavailable

3

SPROCKET

12741-17H00

Unavailable

4

BOLT

09103-07001

$2.43

5

TAPPET This part replaces 12891-18H00.

12891-47H00

$68.43

6

VALVE, INTAKE

12911-17H00

Unavailable

7

VALVE, EXHAUST

12912-17H00

Unavailable

8

SPRING,VALVE This part replaces 12921-46E00.

12921-46E01

Unavailable

9

RETAINER,VALVE SPRING

12931-17E01

$16.13

10

SEAT,VALVE SPRING

12933-17E00

$6.89

11

COTTER, VALVE

12932-32C00

$2.03

12

OIL SEAL

09289-04002

$6.49

13

SHIM, TAPPET (T:1.20)

12892-05C00-120

$11.60

13

SHIM, TAPPET (T:1.25)

12892-05C00-125

$11.83

13

SHIM, TAPPET (T:1.30)

12892-05C00-130

$10.06

13

SHIM, TAPPET (T:1.35)

12892-05C00-135

$10.06

13

SHIM, TAPPET (T:1.40)

12892-05C00-140

$11.83

13

SHIM, TAPPET (T:1.45)

12892-05C00-145

$9.87

13

SHIM, TAPPET (T:1.50)

12892-05C00-150

$11.83

13

SHIM, TAPPET (T:1.55)

12892-05C00-155

$9.69

13

SHIM, TAPPET (T:1.60)

12892-05C00-160

$9.69

13

SHIM, TAPPET (T:1.65)

12892-05C00-165

$9.69

13

SHIM, TAPPET (T:1.70)

12892-05C00-170

$11.60

13

SHIM, TAPPET (T:1.75)

12892-05C00-175

$9.87

13

SHIM, TAPPET (T:1.80)

12892-05C00-180

$11.38

13

SHIM, TAPPET (T:1.85)

12892-05C00-185

$11.83

13

SHIM, TAPPET (T:1.90)

12892-05C00-190

$11.83

13

SHIM, TAPPET (T:1.95)

12892-05C00-195

$11.83

13

SHIM, TAPPET (T:2.00)

12892-05C00-200

$11.60

13

SHIM, TAPPET (T:2.05)

12892-05C00-205

$11.83

13

SHIM, TAPPET (T:2.10)

12892-05C00-210

$11.83

13

SHIM, TAPPET (T:2.15)

12892-05C00-215

$11.83

13

SHIM, TAPPET (T:2.20)

12892-05C00-220

$11.83

14

SHIM SET, TAPPET T:1.20, 1.25...2.95, 3.00 (5PCS.EACH) & NO.15 | OPT NOT SHOWN; Includes Item(s) 15

12800-05830

$1,211.58

15

CASE, TAPPET SHIM | OPT NOT SHOWN

99000-69491

Unavailable
