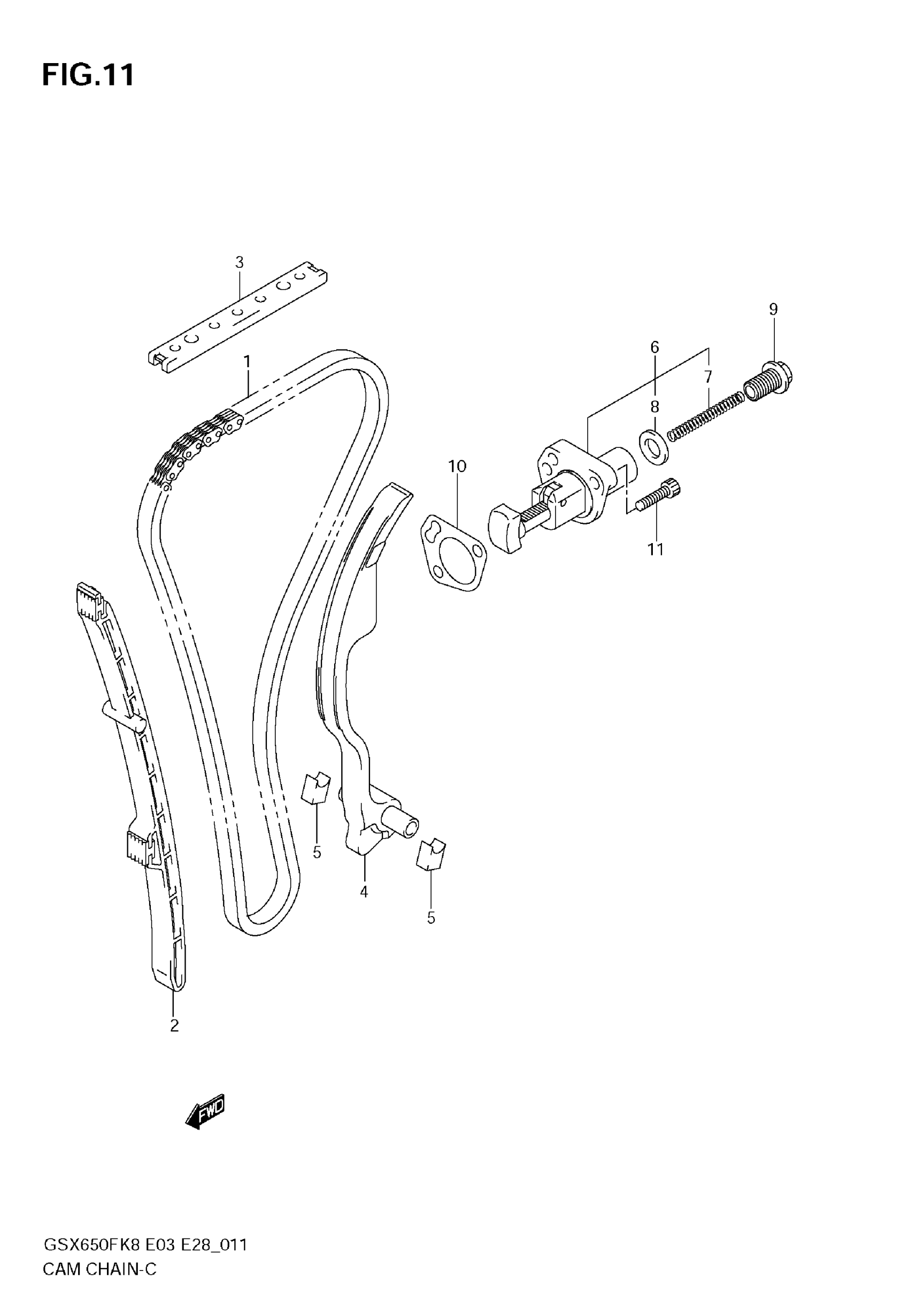

Suzuki GSX650F (2009) CAM CHAIN Diagram

CHAIN, CAM SHAFT DRIVE

12760-18H00

Unavailable

GUIDE,CAM CHAIN This part replaces 12771-18H00.

12771-18H01

$31.70

GUIDE,CAM CHAIN This part replaces 12782-18H00.

12782-18H01

$35.23

TENSIONER, CAM CHAIN

12810-18H00

Unavailable

CUSHION

12814-34200

$5.58

ADJUSTER ASSY, TENSIONER | Includes Item(s) 7 - 8

12834-48G00

$186.82

SPRING

12831-35F00

$6.87

GASKET

12837-24F10

$4.78

PLUG

12833-17G00

$7.87

GASKET, ADJUSTER

12837-27G00

$4.72

BOLT

07130-0625B

$3.04
