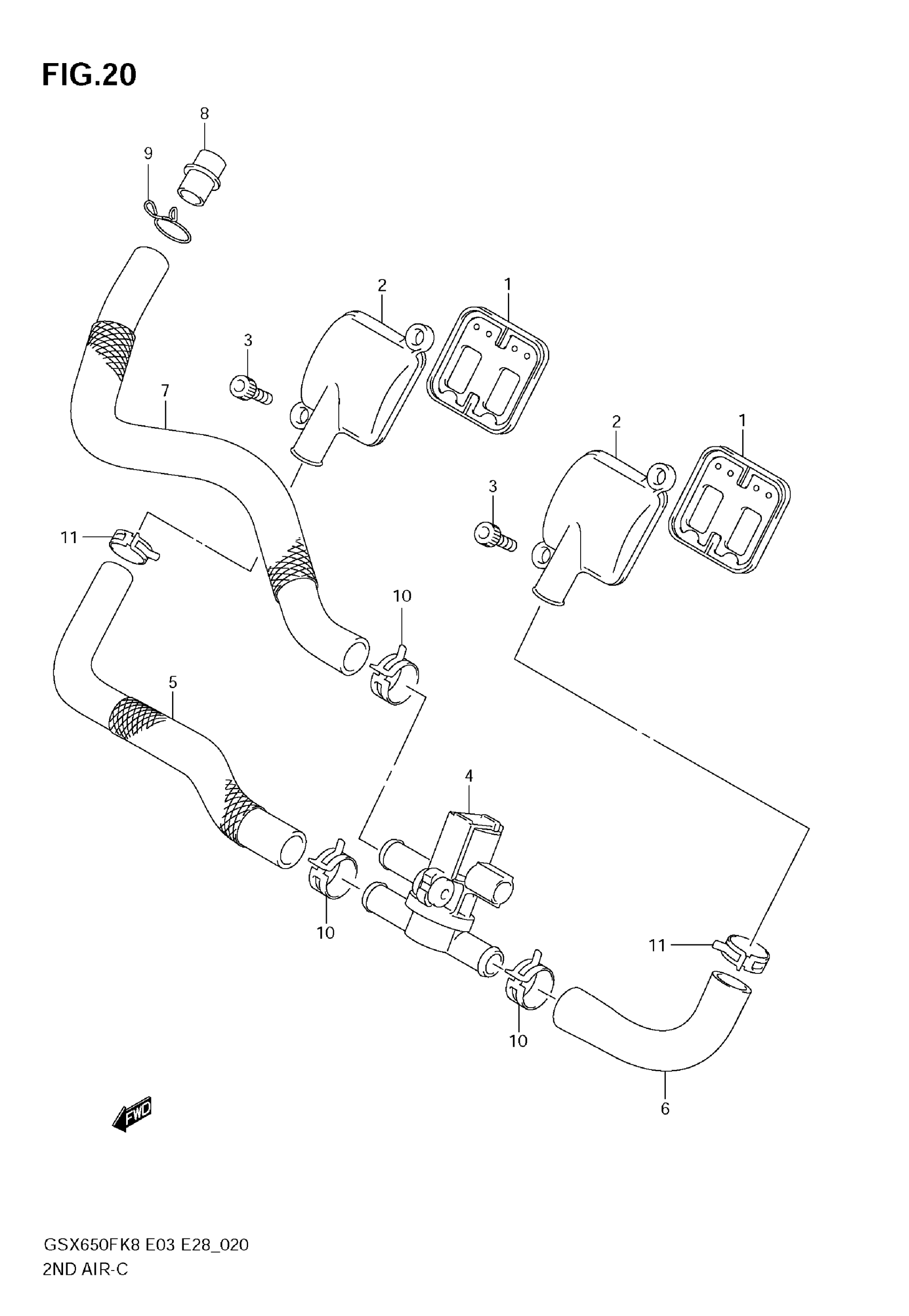

Suzuki GSX650F (2009) 2ND AIR Diagram

#

Description
Price

1

VALVE ASSY, 2ND AIR REED

18450-35F30

$99.63

2

COVER, VALVE

18531-15H00

Unavailable

3

BOLT

09106-06073

$2.39

4

VALVE ASSY, AIR CUT

18510-29G20

Unavailable

5

HOSE, VALVE RH

18461-18H00

Unavailable

6

HOSE, VALVE LH

18471-18H00

Unavailable

7

HOSE, AIR CLEANER

18711-18H00

Unavailable

8

JOINT 2ND AIR CLEANER HOSE

13888-19B00

$8.28

9

CLIP

09401-15101

$2.26

10

CLIP

09401-17401

$3.08

11

CLIP

09401-18404

$1.90
