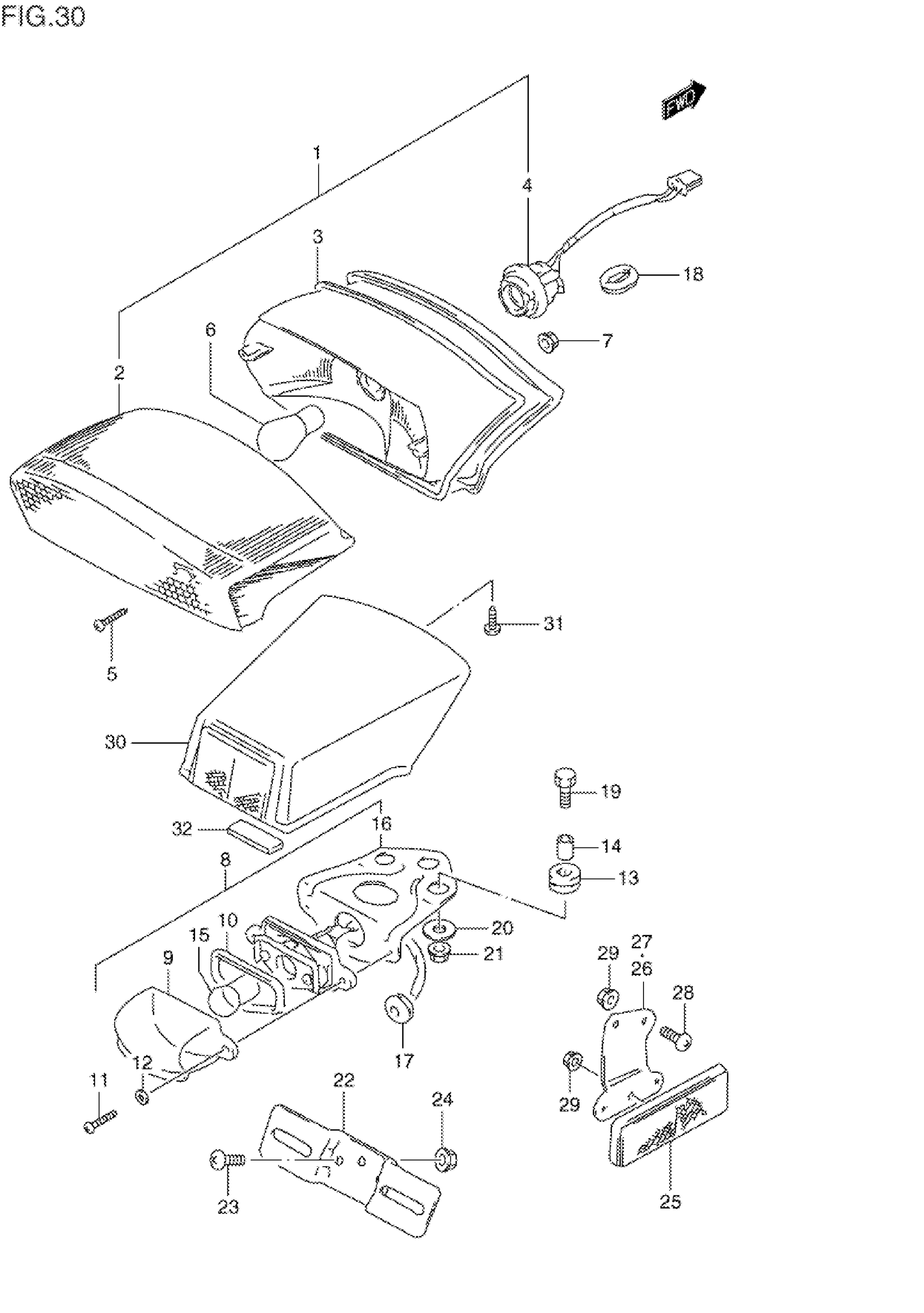

Suzuki GSX600FV (1997) TAIL LAMP Diagram

#

Description
Price

1

LAMP ASSY, REAR COMBINATION | Includes Item(s) 2 - 6

35710-19C30

Unavailable

2

LENS

35712-19C00

Unavailable

3

GASKET

35713-19C00

Unavailable

4

SOCKET

35718-19C00

Unavailable

5

SCREW This part replaces 03211-04203.

03211-04207

$1.49

6

BULB (12V,21/5W)

09471-12128

$6.73

7

NUT This part replaces 08316-20063.

08316-2006A

$2.63

8

LAMP ASSY, LICENSE | Includes Item(s) 9 - 16

35910-19C00

Unavailable

9

LENS

35912-00A10

Unavailable

10

GASKET

35913-04A00

Unavailable

11

SCREW This part replaces 02112-04163.

02112-0416A

$1.49

12

WASHER

08322-01047

$1.86

13

CUSHION

35765-35300

$3.71

14

SPACER

35766-19C00

Unavailable

15

BULB (12V5W) This part replaces 09471-12140.

09471-12058

$2.33

16

BRACKET, LICENSE LAMP

35916-19C00

Unavailable

17

GROMMET

09308-07009

Unavailable

18

GROMMET

09308-12007

Unavailable

19

BOLT

09116-06115

$1.97

20

WASHER (6.5X20X1.2)

09160-06077

$1.91

21

NUT This part replaces 08316-20063.

08316-2006A

$2.63

22

BRACKET, LICENSE PLATE

35927-00A30

Unavailable

23

SCREW This part replaces 02112-06163.

02112-0616A

$1.49

24

NUT This part replaces 08310-00063.

08310-0006A

$1.84

25

REFLEX REFLECTOR, RR SIDE

35970-24D60

$25.98

26

BRACKET, RH

35975-20C01

Unavailable

27

BRACKET, LH

35976-20C01

Unavailable

28

.SCREW This part replaces 02142-05123.

02142-0512A

$1.49

29

NUT This part replaces 08310-00053.

08310-0005A

$1.84

30

COVER, LICENSE LAMP

35917-19C00

Unavailable

31

SCREW This part replaces 03541-05163.

03541-0516A

$1.49

32

CUSHION This part replaces 35995-05C00.

33652-49000

$3.58
