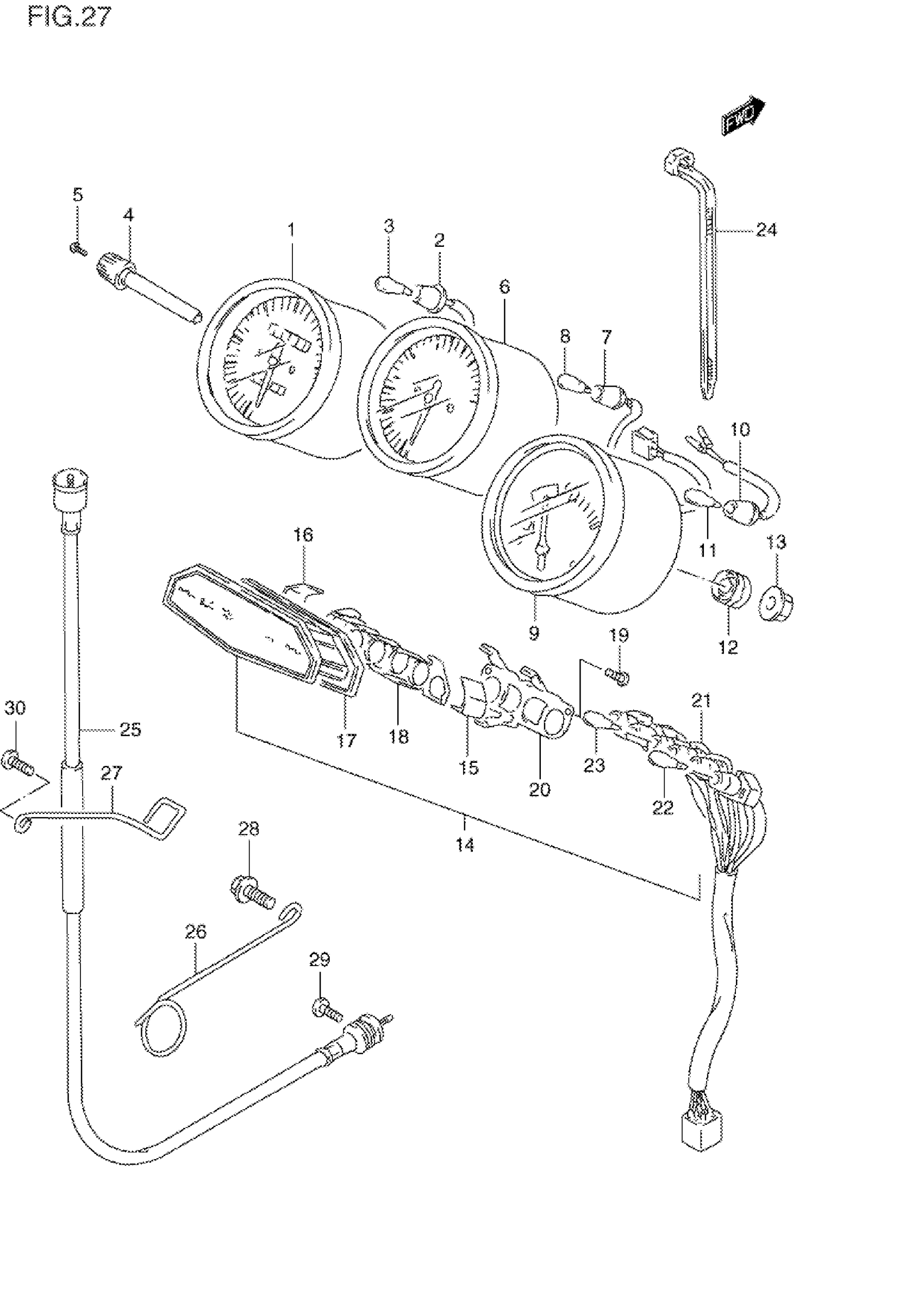

Suzuki GSX600FV (1997) SPEEDOMETER Diagram

#

Description
Price

1

SPEEDOMETER

34100-19C50

Unavailable

1

SPEEDOMETER | E28; Includes Item(s) 2 - 3

34100-19C40

Unavailable

2

SOCKET

34171-19C00

Unavailable

3

BULB (12V,3W)

09471-12085

$5.01

4

KNOB, TRIP

34124-19C00

$17.28

5

SCREW

34184-12D00

$2.93

6

TACHOMETER | Includes Item(s) 7 - 8

34200-19C20

Unavailable

7

SOCKET

34171-19C10

Unavailable

8

BULB (12V,3W)

09471-12085

$5.01

9

FUEL METER | Includes Item(s) 10 - 11

34300-19C20

Unavailable

10

SOCKET

34171-19C10

Unavailable

11

BULB (12V,3W)

09471-12085

$5.01

12

CUSHION

34189-30921

$3.41

13

NUT (M6)

09159-06076

$2.81

14

NO DESCRIPTION AVAILABLE This part replaces 36380-19C00.

36380-19C11

Unavailable

14

NO DESCRIPTION AVAILABLE | E28; Includes Item(s) 15 - 23 This part replaces 36380-19C10.

36380-19C11

Unavailable

15

PLATE, TURN RH

36383-27A00

Unavailable

16

PLATE, TURN LH

36384-27A00

Unavailable

17

CUSHION, CASE

34196-19C00

Unavailable

18

PLATE, PILOT LAMP

36382-27A00

Unavailable

19

SCREW

36457-45100

Unavailable

20

LOCK PLATE

34197-19C00

Unavailable

21

SOCKET

34171-19C20

Unavailable

22

BULB (12V,1.7W)

09471-12100

$4.13

23

BULB (12V,3W)

09471-12085

$5.01

24

CLAMP, METER LEAD

09407-14403

$2.26

25

CABLE,SPEEDOMET This part replaces 34910-19C01.

34910-19C02

$31.75

26

CLAMP, CABLE

34938-45100

$6.57

27

CLAMP,SPEEDOMET This part replaces 34938-34C01.

34938-34C0V

Unavailable

28

BOLT This part replaces 01550-06163.

01550-0616A

$1.97

29

.SCREW This part replaces 02112-05163.

02112-0516A

$1.49

30

.SCREW This part replaces 02142-05123.

02142-0512A

$1.49
