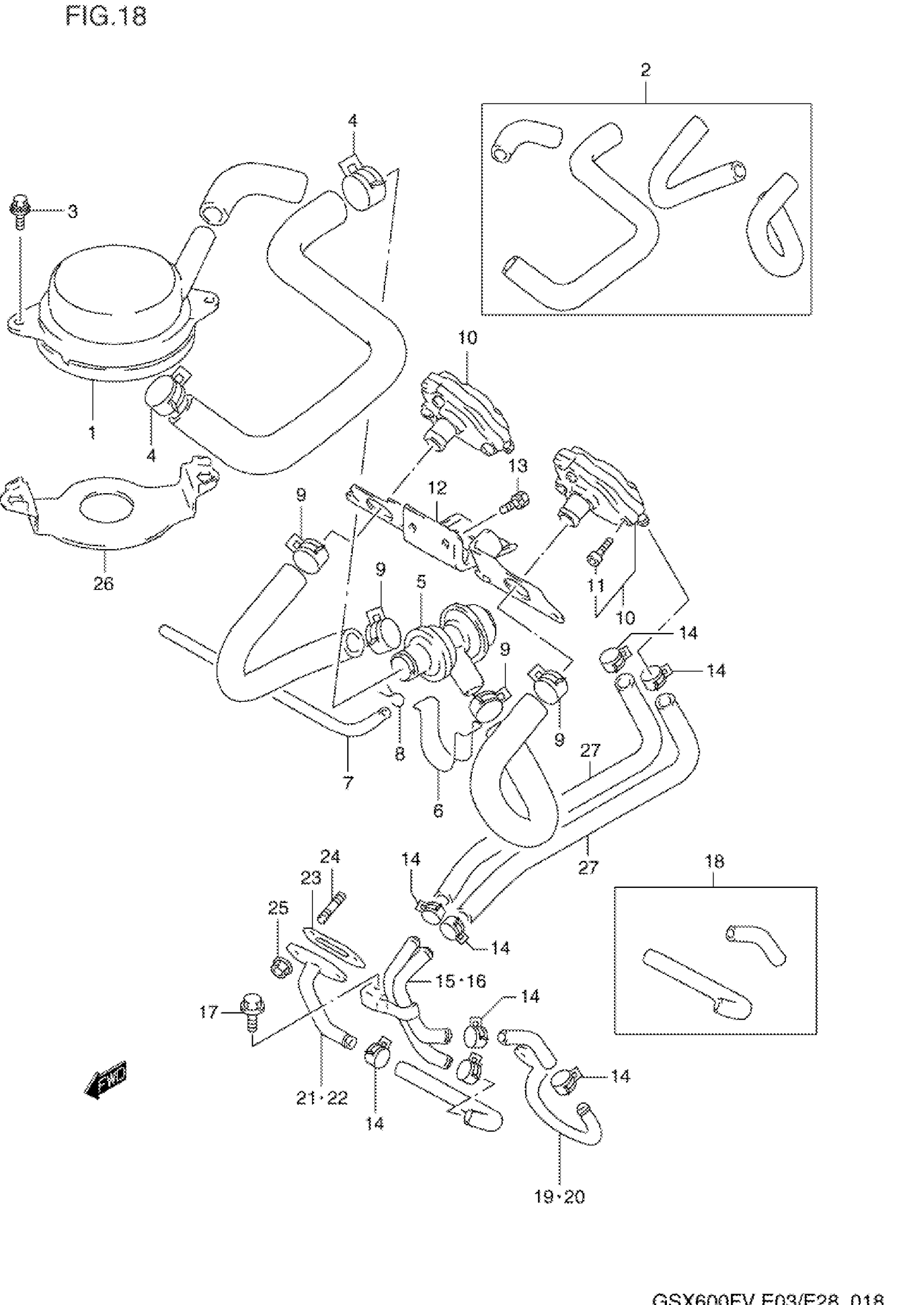

Suzuki GSX600FV (1997) SECOND AIR (E33) Diagram

#

Description
Price

1

CLEANER ASSY, 2ND AIR

18700-17C03

Unavailable

2

HOSE SET, 2ND AIR NO.2

18420-19810

Unavailable

3

BOLT This part replaces 01580-06163.

01580-0616A

$2.42

4

CLIP

09401-25402

Unavailable

5

VALVE ASSY, AIR SWITCHING

18510-20C00

Unavailable

6

CLAMP, SWITCHING VALVE

18522-17C00

Unavailable

7

HOSE, VACUUM (L:600->250)

09359-45852-600

Unavailable

8

CLIP

09401-07401

Unavailable

9

CLIP

09401-21403

Unavailable

10

VALVE ASSY, 2ND AIR REED | Includes Item(s) 11

18450-48B00

Unavailable

11

BOLT

07130-05167

$3.15

12

BRACKET, REED VALVE

18470-19C01

Unavailable

13

BOLT This part replaces 01570-06163.

01570-0616A

$2.23

14

CLAMP This part replaces 09401-13413.

09401-13417

$2.26

15

PIPE, 2ND AIR,RH

18460-19C02

Unavailable

16

PIPE, 2ND AIR,LH

18490-19C02

Unavailable

17

BOLT, CLAMP This part replaces 01550-06123.

01550-0612A

$1.97

18

HOSE, SET 2ND AIR NO.1

18410-19810

Unavailable

19

PIPE, 2ND AIR,NO.1 | LH

18410-19C00

Unavailable

20

PIPE, 2ND AIR,NO.4 | RH

18440-19C00

Unavailable

21

PIPE, 2ND AIR,NO.2 | ML

18420-19C02

Unavailable

22

PIPE, 2ND AIR,NO.3 | MR

18430-19C02

Unavailable

23

GASKET, 2ND AIR PIPE This part replaces 18441-17C10.

18441-17C11

$7.25

24

BOLT,STUD This part replaces 01421-06163.

01421-0616A

$1.91

25

NUT This part replaces 08316-10063.

08316-1006B

$2.50

26

HOLDER, 2ND AIR CLEANER

18761-41C00

Unavailable

27

HOSE, 2ND AIR NO.1

18446-20810

Unavailable
