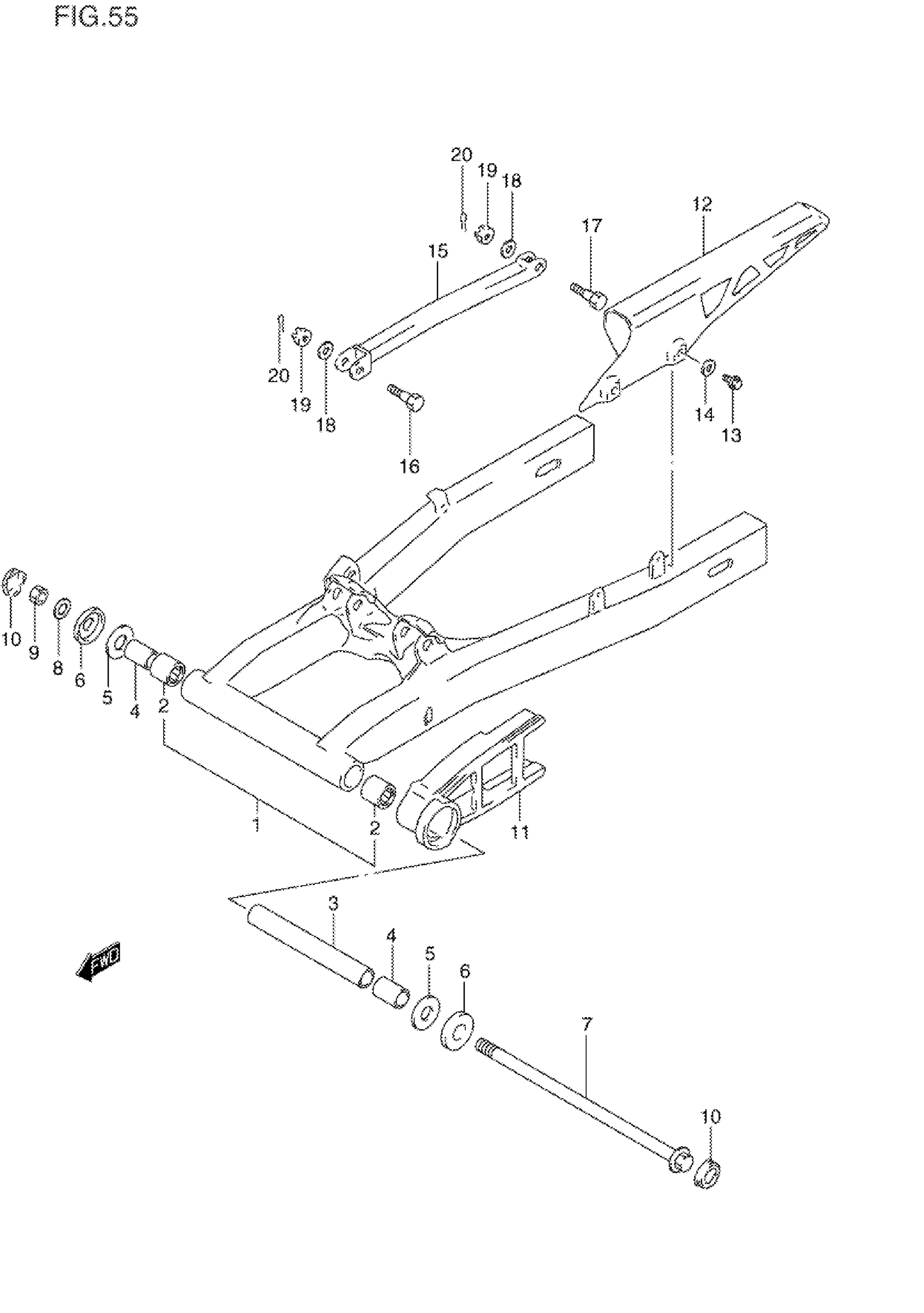

Suzuki GSX600FV (1997) REAR SWINGING ARM Diagram

#

Description
Price

1

SWINGING ARM ASSY, REAR | Includes Item(s) 2

61000-19C10-13L

Unavailable

2

BEARING (22X29X30)

09263-22017

$22.58

3

SPACER, CENTER

61282-19C00

Unavailable

4

SPACER, PIVOT BEARING

61251-45001

$17.37

5

WASHER

08211-14341

$3.42

6

DUST SEAL, PIVOT SHAFT

61262-45002

$7.97

7

SHAFT, SWINGING ARM PIVOT

61211-19C00

Unavailable

8

WASHER

09160-14015

Unavailable

9

NUT

09159-14019

$11.61

10

CAP, SWINGING ARM PIVOT

61222-43400

$5.24

11

BUFFER,CHAIN TO This part replaces 61273-20C00.

61273-20C01

$40.32

12

CASE, CHAIN

61310-27A01

$80.83

13

SCREW This part replaces 02142-06123.

02142-0612A

$1.49

14

WASHER

09169-06026

$2.20

15

TORQUE LINK, REAR

64310-19C00

Unavailable

16

BOLT, FRONT (10X41)

09111-10016

Unavailable

17

BOLT, REAR (10X35)

09101-10036

$5.28

18

WASHER This part replaces 09160-10069.

09160-10005

$1.87

19

NUT This part replaces 08314-40103.

08314-4010B

$2.50

20

COTTER PIN This part replaces 04111-20208.

04111-2020A

$1.49
