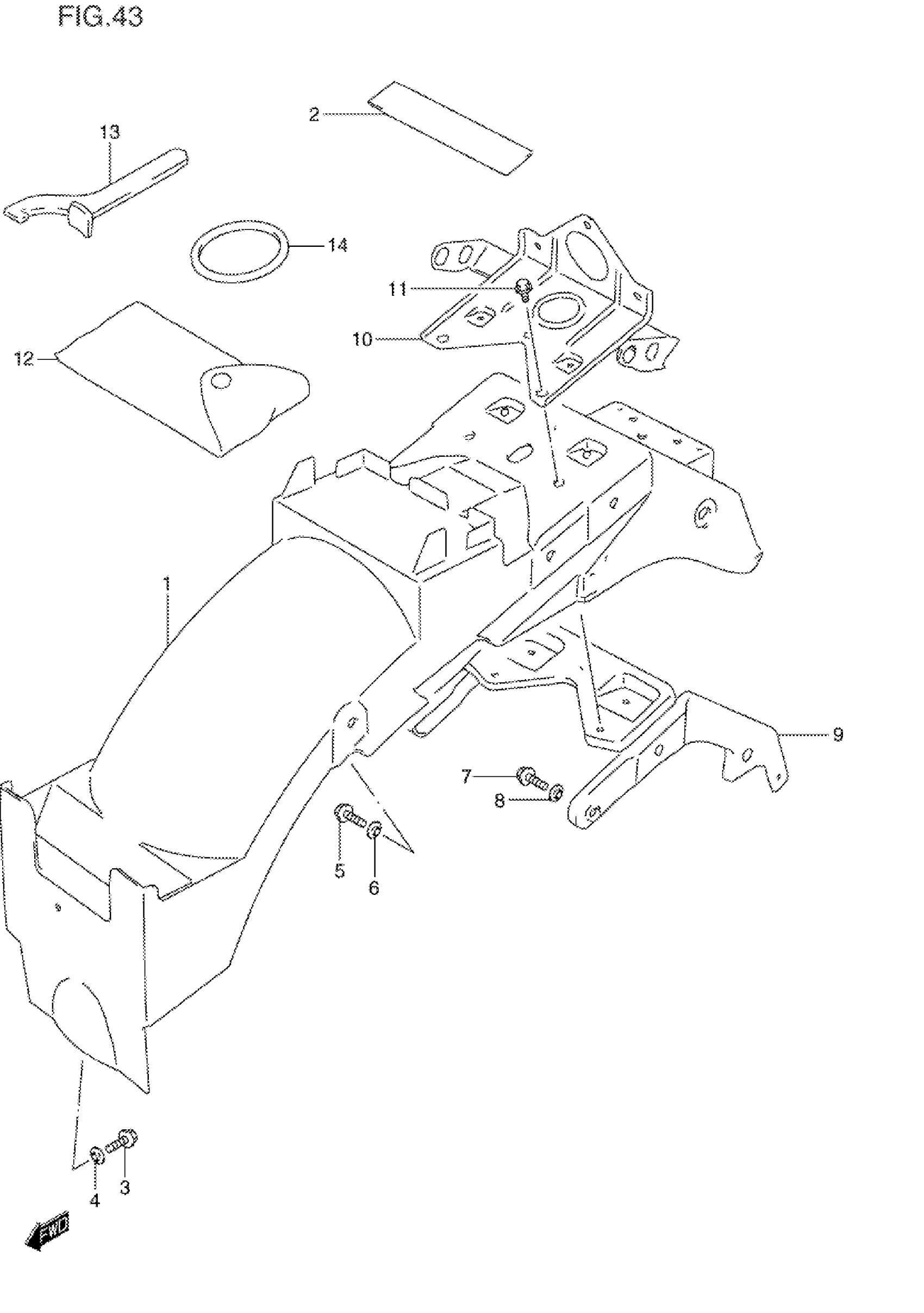

Suzuki GSX600FV (1997) REAR FENDER Diagram

#

Description
Price

1

BODY, REAR FENDER

63111-19C00

Unavailable

2

CUSHION, FENDER

63191-19C00

Unavailable

3

BOLT This part replaces 01550-06103.

01550-0610A

$1.97

4

WASHER

09169-06037

$2.45

5

BOLT This part replaces 01550-06203.

01550-0620A

$1.97

6

WASHER

09169-06037

$2.45

7

BOLT This part replaces 01550-06203.

01550-0620A

$1.97

8

WASHER

09169-06042

Unavailable

9

REINFORCEMENT, REAR FENDER

63120-19C00

Unavailable

10

BRACKET, LAP

63460-19C01

Unavailable

11

BOLT, CLAMP This part replaces 01550-06123.

01550-0612A

$1.97

12

TOOL ASSY

09800-21036

Unavailable

13

CLAMP, WRENCH

09822-00005

$15.16

14

O RING(D:3.5,ID This part replaces 09280-61002.

09280-61004

$2.60
