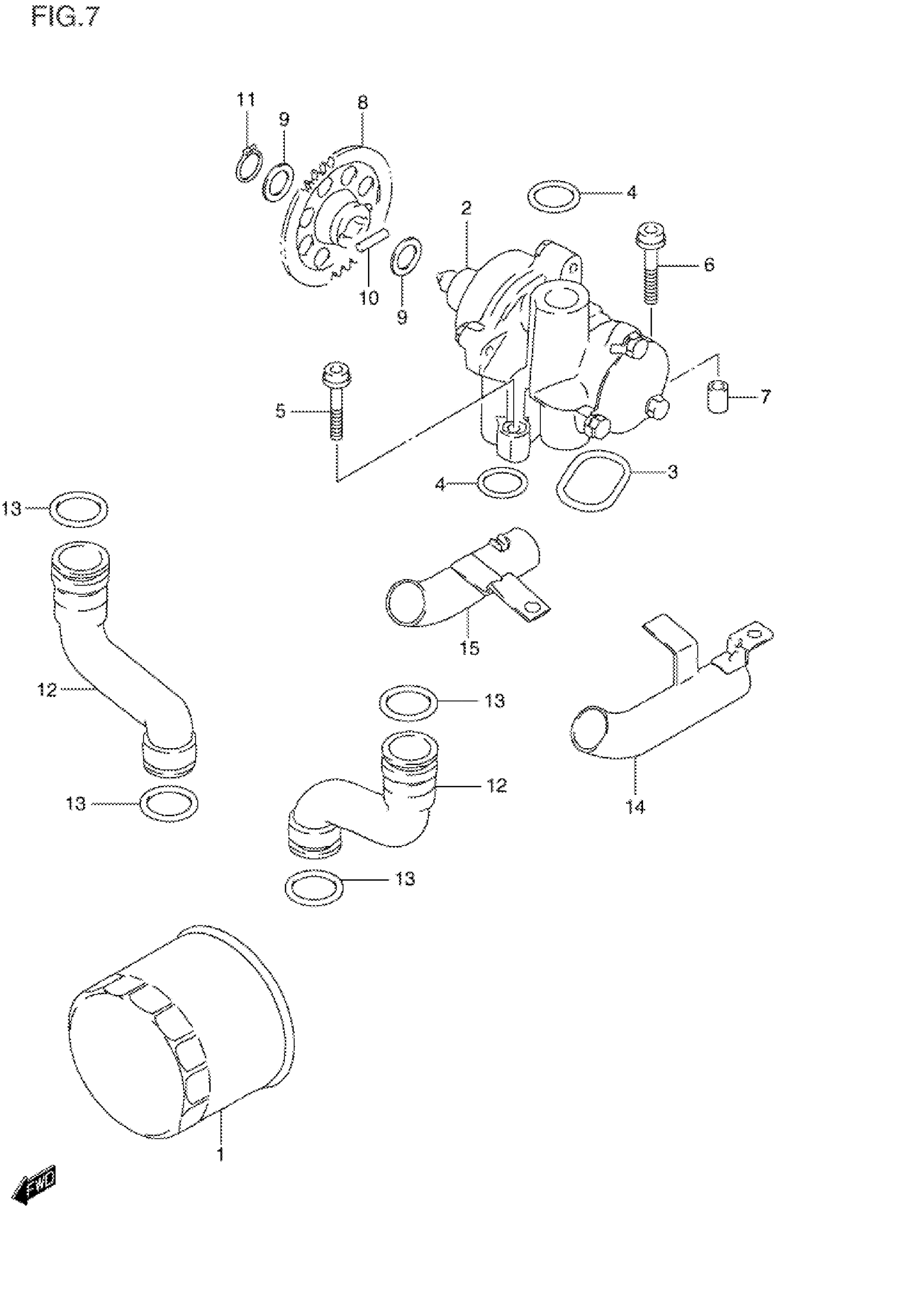

Suzuki GSX600FV (1997) OIL PUMP Diagram

#

Description
Price

1

FILTER, ENGINE OIL This part replaces 16510-06B01.

16510-07J00

$13.10

2

PUMP ASSY, ENGINE OIL

16400-06B01

Unavailable

3

O RING, OIL PUMP

16491-27A01

$9.31

4

O RING (D:3.2,ID:17.8)

09280-18009

$5.83

5

BOLT This part replaces 07130-06303.

07130-0630B

$3.37

6

BOLT This part replaces 07130-06353.

07130-0635B

$3.37

7

PIN

04211-09129

$1.65

8

GEAR, OIL PUMP DRIVEN

16332-19C00

$73.80

9

WASHER

08221-12205

$2.30

10

PIN

09261-05006

$1.49

11

CIRCLIP This part replaces 08331-31126.

08331-3112A

$1.78

12

PIPE, OIL OUTLET

16481-17D00

$51.32

13

O RING (D:3.7,ID:21.7)

09280-22016

$5.58

14

PIPE, OIL UNDER,LH

16530-27A02

Unavailable

15

PIPE, OIL UNDER,RH

16540-27A02

Unavailable
