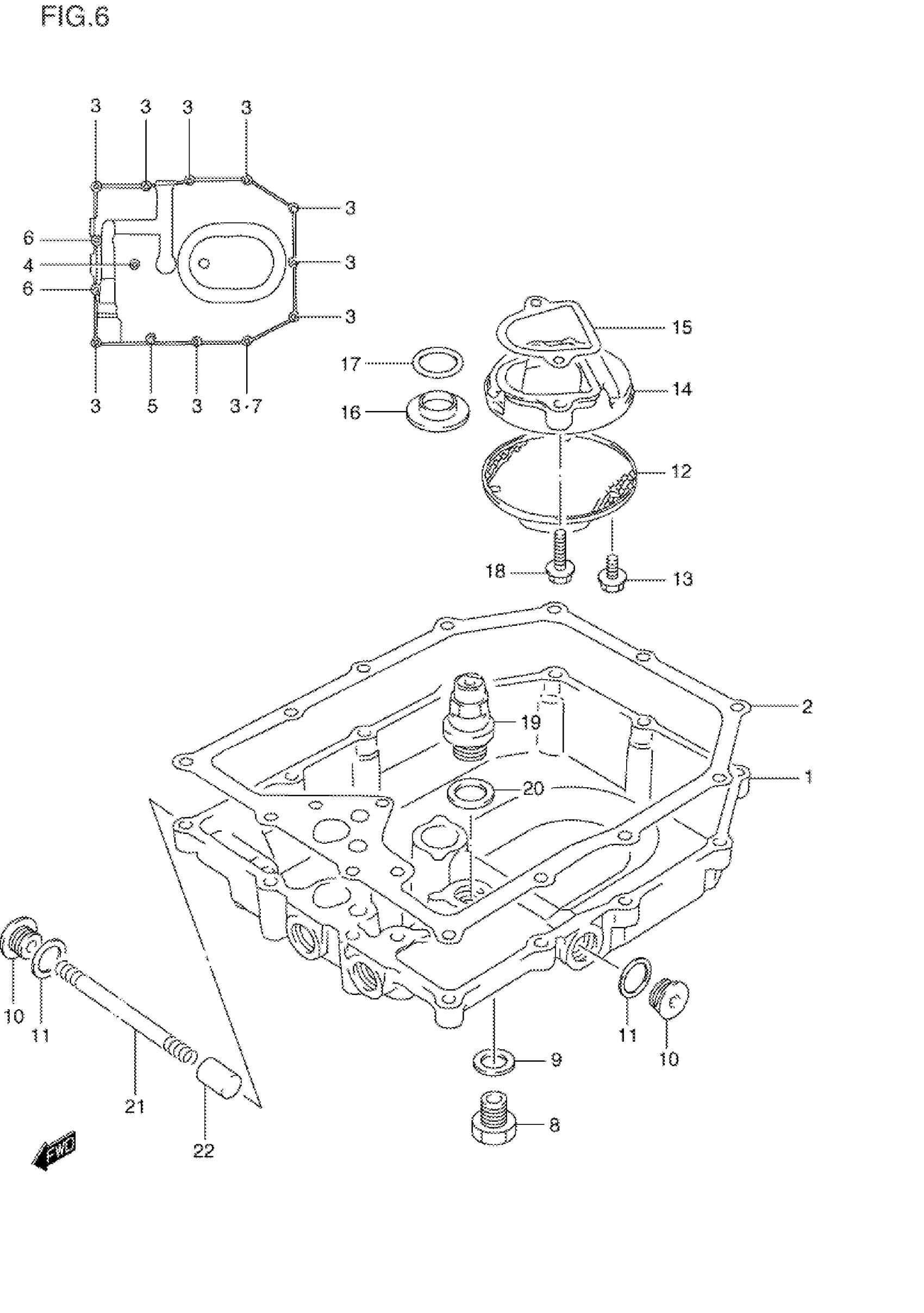

Suzuki GSX600FV (1997) OIL PAN Diagram

#

Description
Price

1

PAN, OIL

11511-19C00

Unavailable

2

O RING, OIL PAN This part replaces 11489-27A20.

11489-27A21

$16.33

3

BOLT This part replaces 07130-06253.

07130-0625B

$3.04

4

BOLT This part replaces 07130-06353.

07130-0635B

$3.37

5

BOLT, STATOR This part replaces 07130-06403.

07130-0640B

$3.38

6

BOLT This part replaces 07130-06453.

07130-0645B

$4.10

7

GASKET

09168-06024

$2.20

8

PLUG (MAGNETO) This part replaces 09247-14001.

09247-14002

$5.24

9

GASKET

09168-14002

$2.26

10

PLUG, OIL DRAIN This part replaces 09248-16010.

09248-16012

$4.64

11

GASKET

09168-16002

$1.91

12

STRAINER, ENGINE OIL

16520-06B01

Unavailable

13

BOLT This part replaces 01570-06123.

01570-0612A

$2.63

14

PROTECTOR, STRAINER

16525-48B01

Unavailable

15

GASKET, OIL STR PROTECTOR This part replaces 16528-27A20.

16528-27A21

$5.78

16

GASKET, OIL OUTLET

16529-27A01

$2.15

17

O RING (D:3.2,ID:17.8)

09280-18009

$5.83

18

BOLT This part replaces 01550-06253.

01550-0625A

$1.97

19

REGULATOR, ENGINE OIL

16440-27A01

$66.40

20

WASHER

09168-16002

$1.91

21

SPRING

09440-09023

Unavailable

22

PLUNGER, OIL CONTROL

16442-34301

Unavailable
