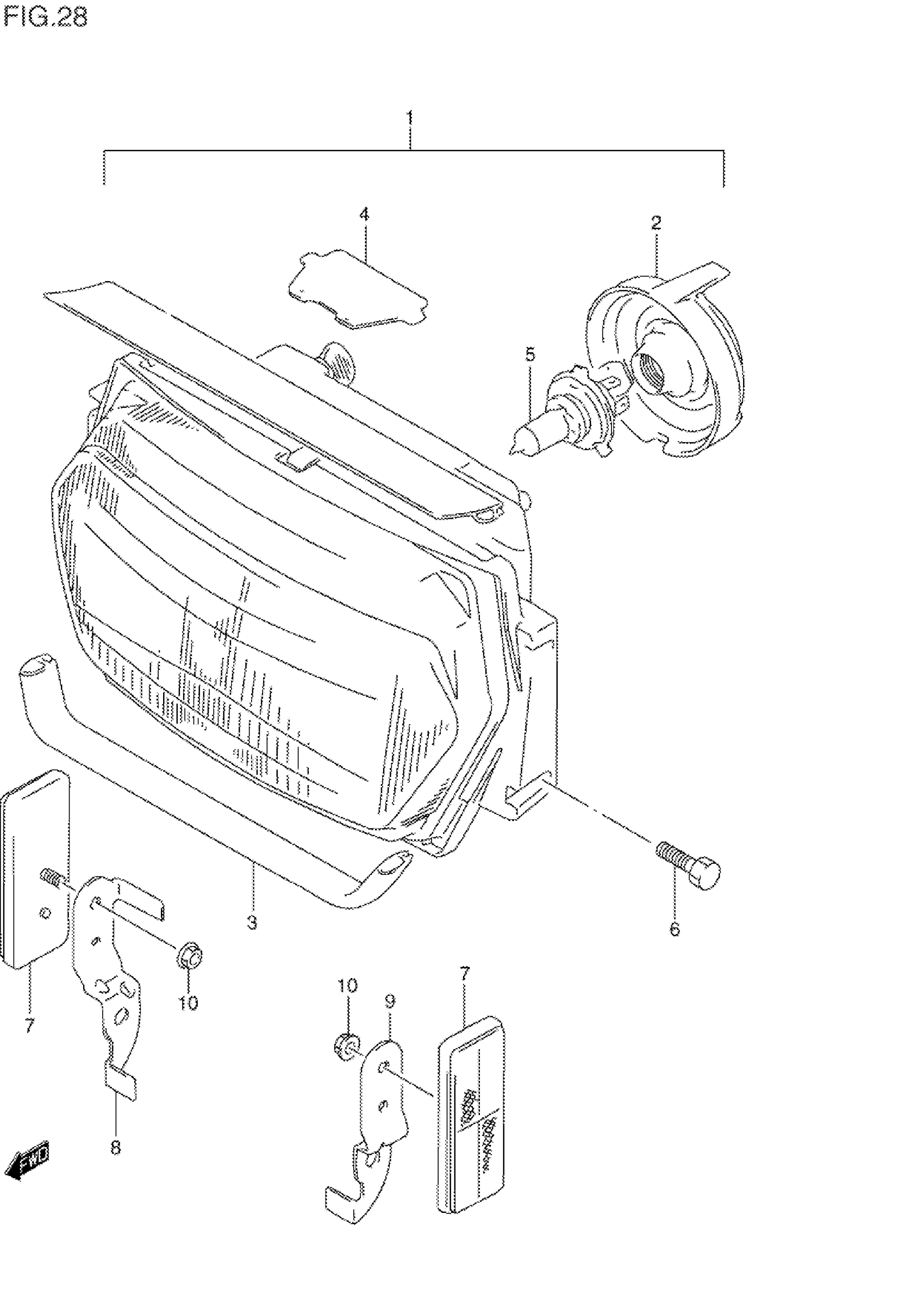

Suzuki GSX600FV (1997) HEADLAMP Diagram

#

Description

Price

1

HEADLAMP ASSY | Includes Item(s) 2 - 5

35100-20C10-999

Unavailable

2

SOCKET COVER

35173-48B00

Unavailable

3

GASKET

35243-19C00

Unavailable

4

GASKET

35244-19C00

Unavailable

5

BULB (12V,60/55W)

09471-12060

$25.15

6

BOLT, REAR This part replaces 01580-06203.

01580-0620B

$3.30

7

REFLEX REFLECTOR,FR SIDE

35950-43431

$17.83

8

BRACKET, RH

35956-19C00

Unavailable

9

BRACKET, LH

35957-19C00

Unavailable

10

NUT This part replaces 08310-00053.

08310-0005A

$1.84
