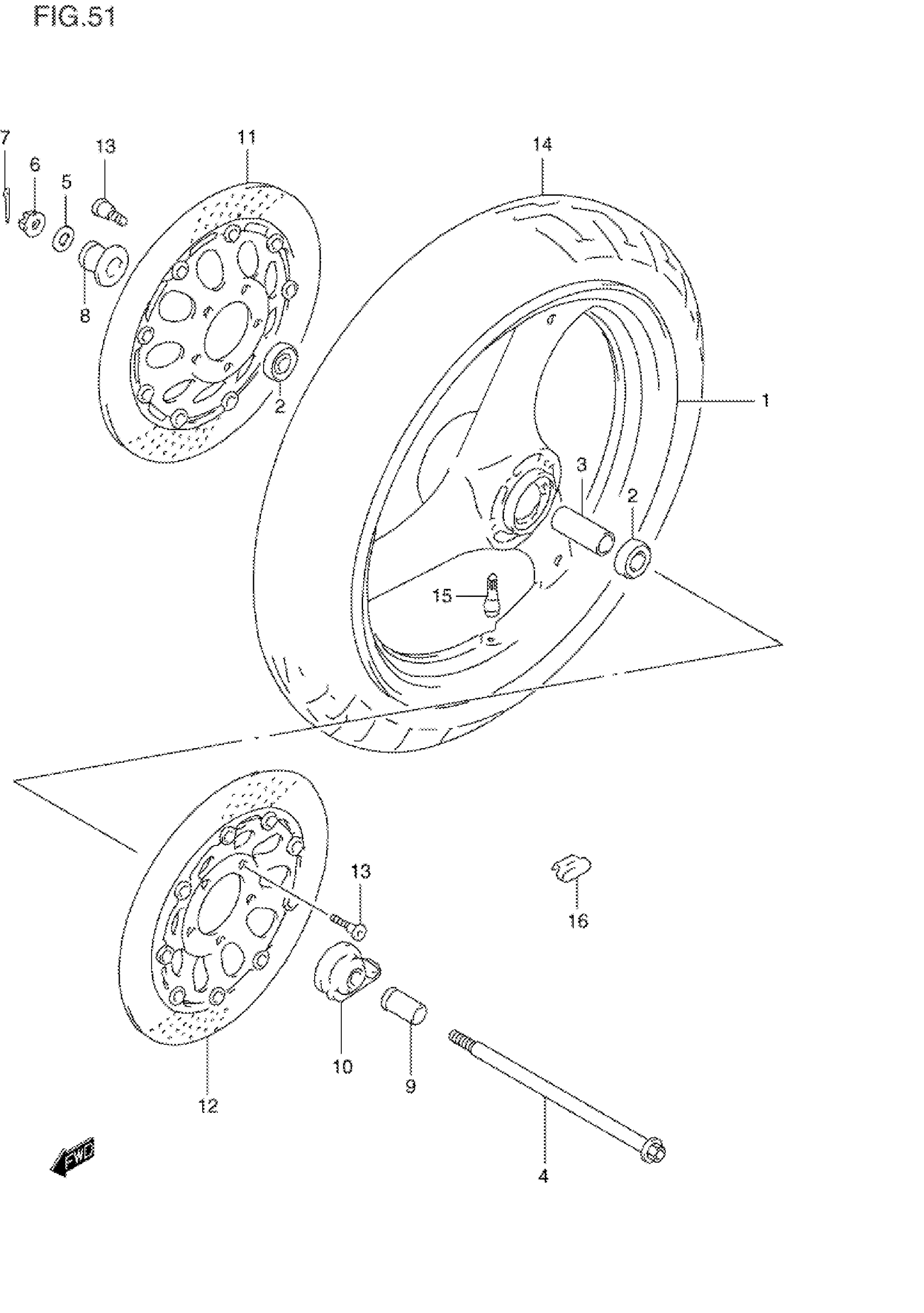

Suzuki GSX600FV (1997) FRONT WHEEL Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE This part replaces 54111-34C00-12R.

54111-34C01-12R

Unavailable

2

BEARING This part replaces 08123-63027.

08123-6302B

$22.74

3

SPACER (15.3X21.7X63)

09180-15011

$8.18

4

AXLE, FRONT

54711-19C00

Unavailable

5

WASHER

08322-01127

$1.84

6

NUT

09159-12027

$15.67

7

PIN This part replaces 04111-30308.

04111-3030A

$1.49

8

SPACER, BEARING RH

54740-33410

$19.15

9

SPACER, AXLE LH

54741-19C00

Unavailable

10

BOX ASSY,SPEEDO This part replaces 54600-30B02.

54600-30B0V

Unavailable

11

DISC, FRONT BRAKE RH

59210-32C31

Unavailable

12

DISC, FRONT BRAKE LH

59220-32C31

Unavailable

13

BOLT (8X33) This part replaces 09106-08125.

09106-08148

$4.80

14

TIRE, T/L FRONT (110/80 V17)

55110-19C10

Unavailable

15

VALVE ASSY, WHEEL RIM (TR412) This part replaces 43130-24A11.

43130-24A00

$8.85

16

BALANCER (10G)

55411-00A00

$1.49

16

BALANCER, WHEEL NO.2 This part replaces 55412-00A01.

55412-17G00

$7.05
