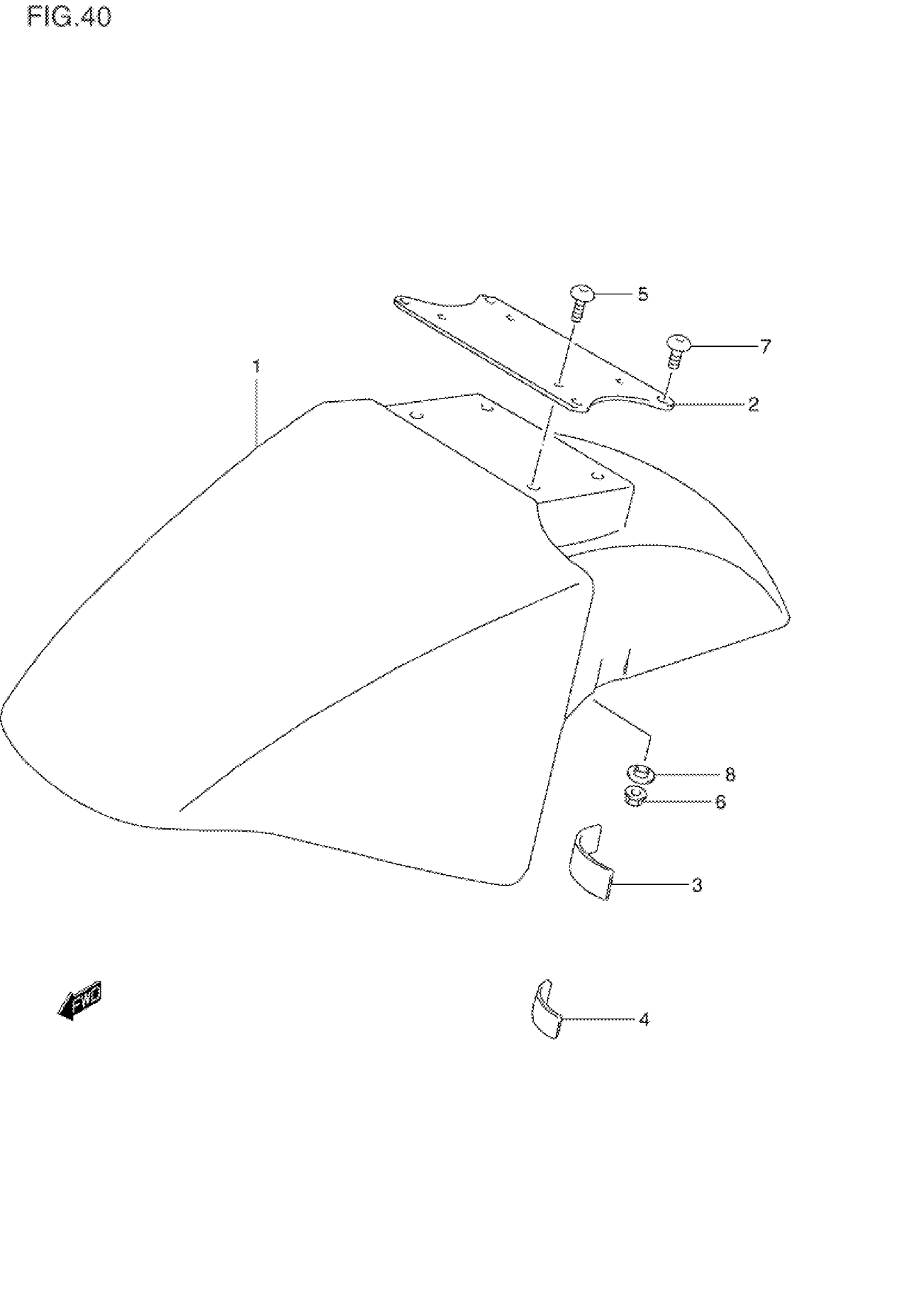

Suzuki GSX600FV (1997) FRONT FENDER Diagram

#

Description

Price

1

FENDER, FRONT (BLUE)

53111-32B11-1LF

Unavailable

1

FENDER, FRONT (YELLOW)

53111-32B11-Z66

Unavailable

2

BRACE, FRONT FENDER

53114-01D00

$29.25

3

CUSHION,FR This part replaces 53145-19C00.

46312-31D11

$5.02

4

CUSHION, LOWER

53146-20C00

$7.05

5

SCREW, SCREEN This part replaces 09139-05022.

09139-05042

$2.90

6

NUT This part replaces 09159-05026.

09159-05043

$2.22

7

SCREW, FENDER

09139-06027

$2.16

8

WASHER

09169-05010

$2.38
