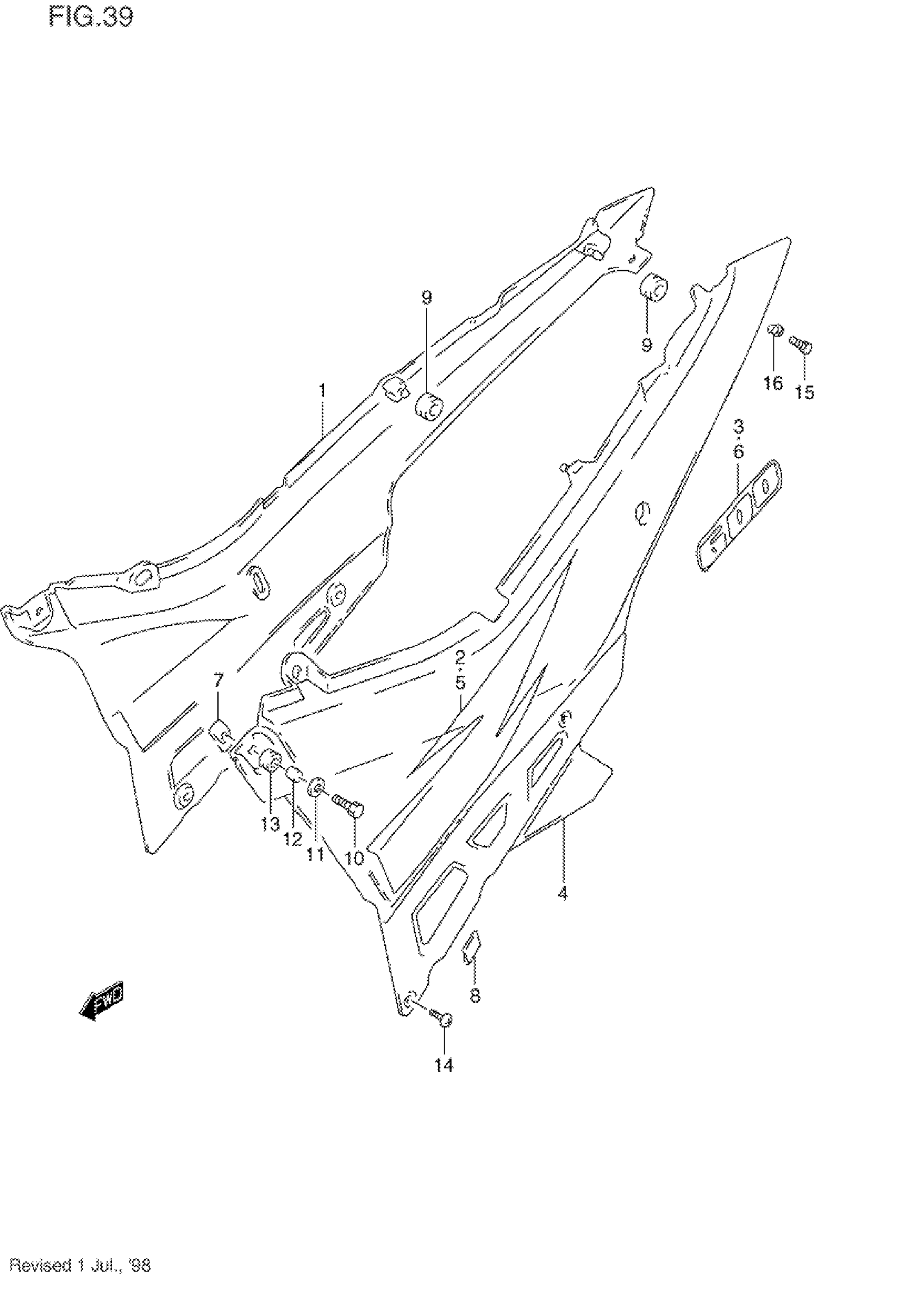

Suzuki GSX600FV (1997) FRAME COVER Diagram

#

Description
Price

1

COVER, FRAME RH | FOR 1LF This part replaces 47110-43CB0-G3K.

47111-19C01

Unavailable

1

COVER, FRAME RH | FOR Z66; Includes Item(s) 2 - 3

47110-43CB0-G3L

Unavailable

2

TAPE, RH | FOR G3K

68135-43C20-G3V

Unavailable

2

TAPE, RH | FOR G3L

68135-43C20-G3W

Unavailable

3

EMBLEM | FOR G3K

68131-43C30-G3Z

Unavailable

3

EMBLEM | FOR G3L

68131-43C30-G4A

Unavailable

4

COVER, FRAME LH | FOR 1LF

47210-43CB0-G3K

Unavailable

4

COVER, FRAME LH | FOR Z66; Includes Item(s) 5 - 6

47210-43CB0-G3L

Unavailable

5

TAPE, LH | FOR G3K

68145-43C20-G3V

Unavailable

5

TAPE, LH | FOR G3L

68145-43C20-G3W

Unavailable

6

EMBLEM | FOR G3K

68131-43C30-G3Z

Unavailable

6

EMBLEM | FOR G3L

68131-43C30-G4A

Unavailable

7

PLATE

47153-19C01

$7.95

8

CUSHION

47161-19C00

$3.03

9

CUSHION, REAR

09320-08018

$3.04

10

SCREW, FRONT

09139-06068

Unavailable

11

WASHER

09160-06109

$1.49

12

SPACER

09180-06263

$2.03

13

CUSHION

09320-09016

$1.97

14

SCREW, LOWER

09139-05038

$2.06

19

.SCREW This part replaces 02142-05123.

02142-0512A

$1.49

20

WASHER

09169-05009

$2.47

21

COLOR:G3K=1LF(BLUE),

SPECIAL NOTE

Unavailable
