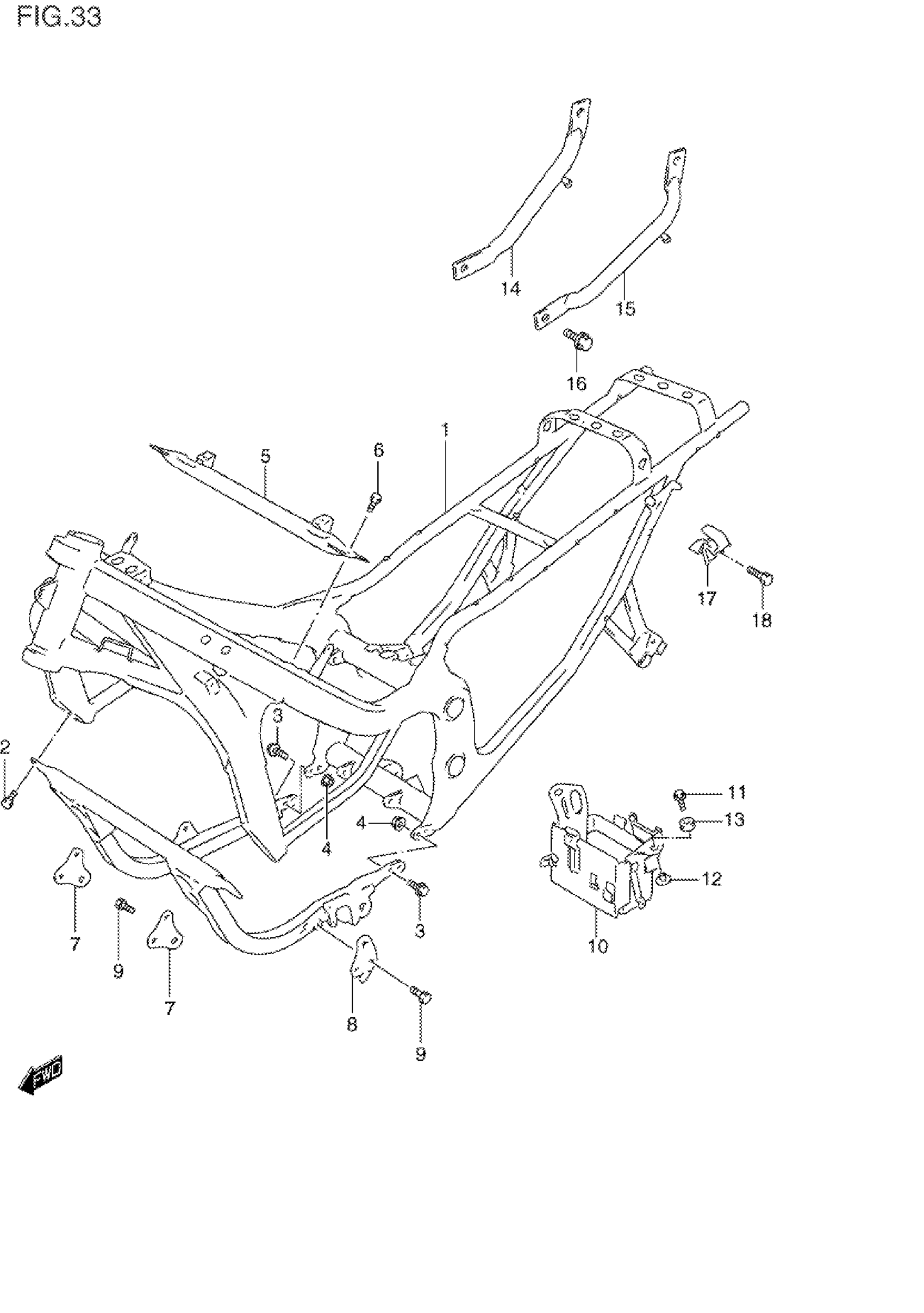

Suzuki GSX600FV (1997) FRAME Diagram

#

Description
Price

1

FRAME SET (BLACK) | Includes Item(s) 2 - 4

41101-19830-019

Unavailable

2

BOLT This part replaces 01570-08253.

01570-0825A

$3.15

3

BOLT This part replaces 01550-08303.

01550-0830A

$3.04

4

NUT This part replaces 08319-31085.

08319-3108A

$2.32

5

TUBE, FRAME BRIDGE

41750-34C00

Unavailable

6

BOLT

09103-08266

$2.71

7

PLATE, NO.1 (BLACK)

41911-19C00-019

Unavailable

8

PLATE, NO.2 (BLACK)

41940-20C00-019

Unavailable

9

BOLT This part replaces 01570-08163.

01570-0816A

$3.03

10

HOLDER, BATTERY

41540-19C02

Unavailable

11

BOLT This part replaces 01570-06303.

01570-0630A

$3.03

12

SPACER

09169-06065

$4.32

13

CUSHION (8.5X20X8) This part replaces 09320-08021.

09320-08510

$1.97

14

GRIP, REAR RH

43970-19C02

Unavailable

15

GRIP, REAR LH

43980-19C02

Unavailable

16

BOLT (8X16) This part replaces 01550-08163.

01550-0816A

$2.32

17

HOLDER, HELMET

95720-20C00

Unavailable

18

BOLT, CLAMP This part replaces 01550-06123.

01550-0612A

$1.97
