Description

Price

1

RELAY, STARTING MOTOR

31800-49100

$97.31

2

SCREW This part replaces 02112-06103.

02112-0610B

$1.84

3

NUT This part replaces 08361-35068.

08361-3506A

$1.80

4

LEAD WIRE, STARTING MOTOR | Includes Item(s) 4A

33810-41C00

Unavailable

4A

CAP, STARTER MOTOR

31861-48B10

$6.55

5

CAP, TERMINAL

31861-10D10

Unavailable

6

COIL ASSY, IGNITION NO.1 This part replaces 33410-19C00.

33410-19C01

$138.67

7

COIL ASSY, IGNITION NO.2 This part replaces 33420-19C00.

33420-19C01

$142.75

8

SPACER

09180-06198

$4.32

9

BOLT This part replaces 01550-06453.

01550-0645A

$2.41

10

CAP, SPARK PLUG

33510-48B10

$31.77

11

SEAL, PLUG

33541-23E01

$6.34

12

SEAL,HIGH TENSION CORD (SIDE)

33542-38B00

$4.34

13

COVER

33543-48B00

$7.25

14

CLAMP This part replaces 09404-06431.

09404-06039

$1.74

15

CLAMP This part replaces 09407-18403.

09407-18402

$2.19

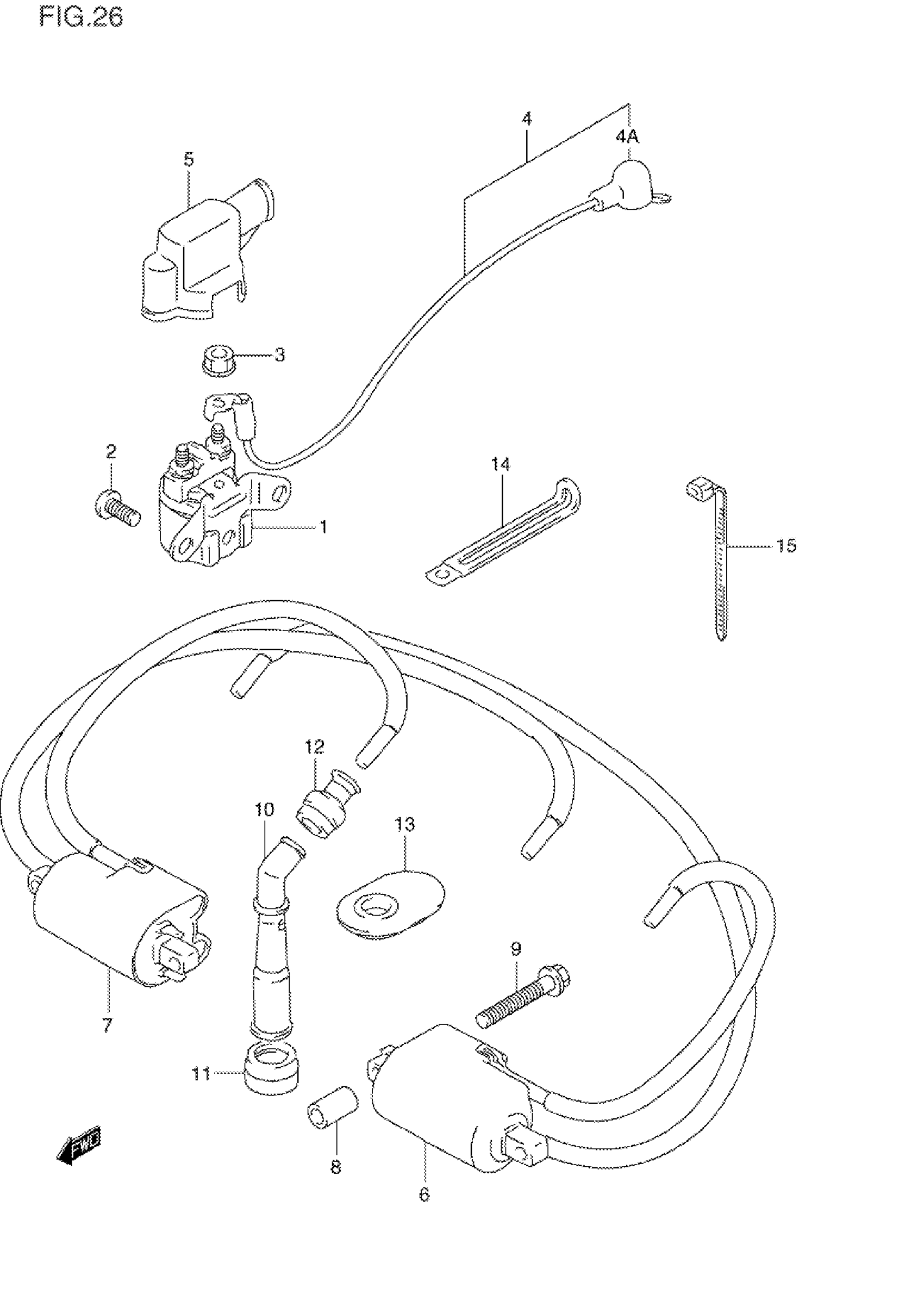

Suzuki GSX600FV (1997) ELECTRICAL Diagram
