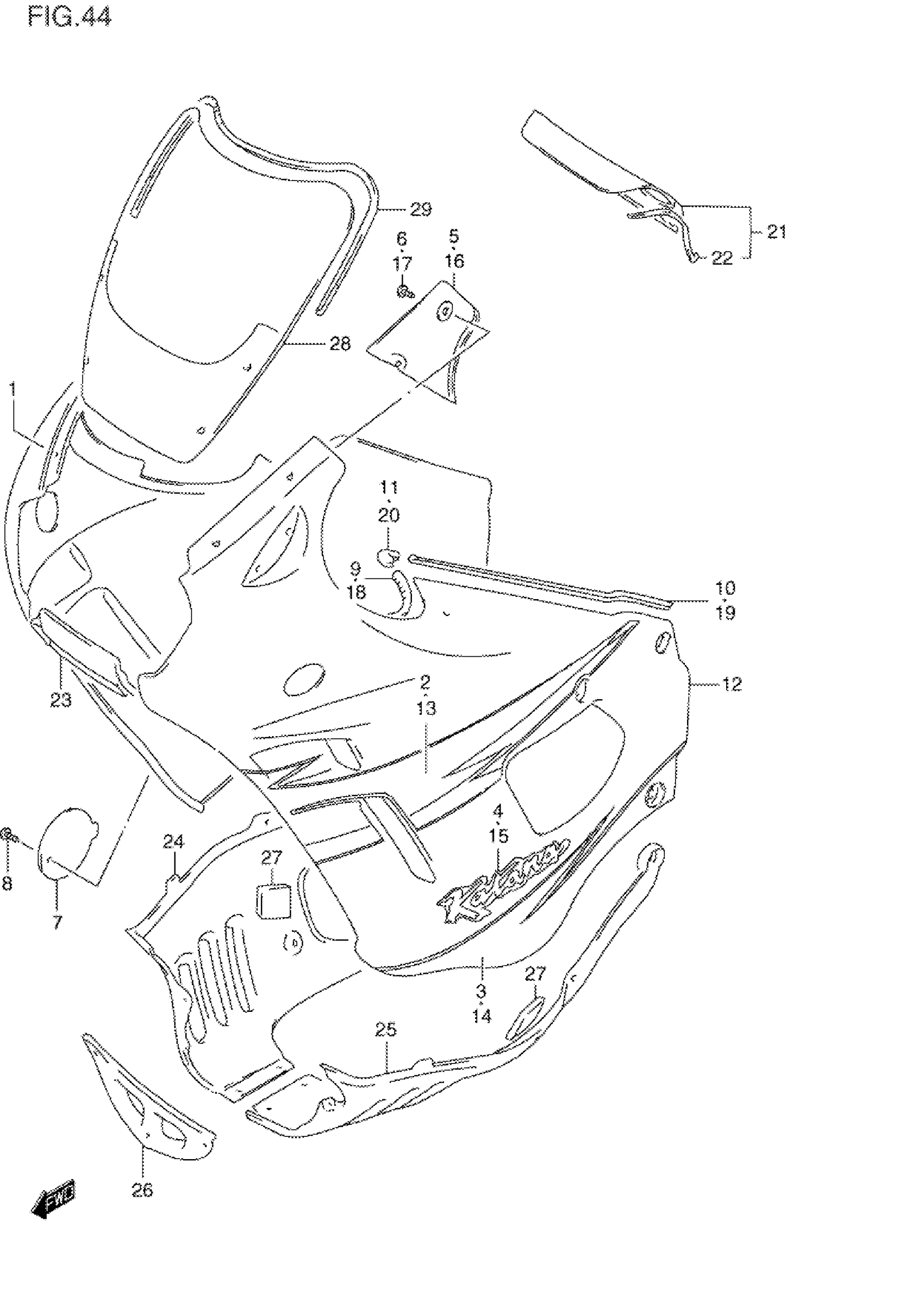

Suzuki GSX600FV (1997) COWLING BODY Diagram

#

Description
Price

1

COVER, COWLING RH (BLUE)

94401-43CM0-1LF

Unavailable

1

COVER, COWLING RH (YELLOW) | Includes Item(s) 2 - 11

94401-43CM0-Z66

Unavailable

2

TAPE, BODY SIDE UPPER | FOR 1LF

68685-21C10-G4C

Unavailable

2

TAPE, BODY SIDE UPPER | FOR Z66

68685-21C10-G4D

Unavailable

3

TAPE, BODY SIDE RH | FOR 1LF

68686-21C20-G3V

Unavailable

3

TAPE, BODY SIDE RH | FOR Z66

68686-21C20-G3W

Unavailable

4

EMBLEM | FOR 1LF

68681-21C40-G3Z

Unavailable

4

EMBLEM | FOR Z66

68681-21C40-G4A

Unavailable

5

COVER, METER RH (BLUE)

94433-19C01-1LF

Unavailable

5

COVER, METER RH (YELLOW)

94433-19C01-Z66

Unavailable

6

SCREW This part replaces 03541-04103.

03541-0410A

$1.68

7

LID, OIL (BLUE)

94435-19C01-1LF

Unavailable

7

LID, OIL (YELLOW)

94435-19C01-Z66

Unavailable

8

SCREW

09139-06030

$3.70

9

MOLDING | L:1000->300

94631-49310

Unavailable

10

MOLDING

94635-19C00

$8.53

11

JOINT

94438-19C00

Unavailable

12

COVER, COWLING LH (BLUE)

94402-43CM0-1LF

Unavailable

12

COVER, COWLING LH (YELLOW)

94402-43CM0-Z66

Unavailable

12

COVER, COWLING LH (BLUE) | E33

94402-43CN0-1LF

Unavailable

12

COVER, COWLING LH (YELL0W) | E33; Includes Item(s) 13 - 20

94402-43CN0-Z66

Unavailable

13

TAPE, BODY SIDE UPPER | FOR 1LF

68695-21C10-G4C

Unavailable

13

TAPE, BODY SIDE UPPER | FOR Z66

68695-21C10-G4D

Unavailable

14

TAPE, BODY SIDE LH | FOR 1LF

68696-21C20-G3V

Unavailable

14

TAPE, BODY SIDE LH | FOR Z66

68696-21C20-G3W

Unavailable

14

TAPE, BODY SIDE LH | E33,FOR 1LF

68696-21C30-G3V

Unavailable

14

TAPE, BODY SIDE LH | E33,FOR Z66

68696-21C30-G3W

Unavailable

15

EMBLEM | FOR 1LF

68681-21C40-G3Z

Unavailable

15

EMBLEM | FOR Z66

68681-21C40-G4A

Unavailable

16

COVER, METER LH (BLUE)

94443-19C01-1LF

Unavailable

16

COVER, METER LH (YELLOW)

94443-19C01-Z66

Unavailable

17

SCREW This part replaces 03541-04103.

03541-0410A

$1.68

18

MOLDING | L:1000->300

94631-49310

Unavailable

19

MOLDING

94635-19C00

$8.53

20

JOINT

94438-19C00

Unavailable

21

COVER, METER | Includes Item(s) 22

94420-19C02

Unavailable

22

MOLDING

94635-19C00

$8.53

23

PANEL, COWL CENTER (BLUE)

94421-19C01-1LF

Unavailable

23

PANEL, COWL CENTER (YELLOW))

94421-19C01-Z66

Unavailable

24

COVER, COWL UNDER RH (GRAY) | FOR 1LF

94471-19C00-17U

Unavailable

24

COVER, COWL UNDER RH | FOR Z66

94471-19C00-35W

Unavailable

25

COVER, COWL UNDER RH (GRAY) | FOR 1LF

94481-19C00-17U

Unavailable

25

COVER, COWL UNDER LH | FOR Z66

94481-19C00-35W

Unavailable

26

COVER, COW UNDER FRONT (BLACK

94475-19C01

Unavailable

27

CUSHION, REAR BAG This part replaces 94475-48B10.

94915-44E00

$12.65

28

SCREEN, WINDOW

94610-19C60

Unavailable

29

MOLDING | L:800->600

94631-18D01

Unavailable

30

REFER TO FIG.45 (G- 8) FOR

SPECIAL NOTE

Unavailable
