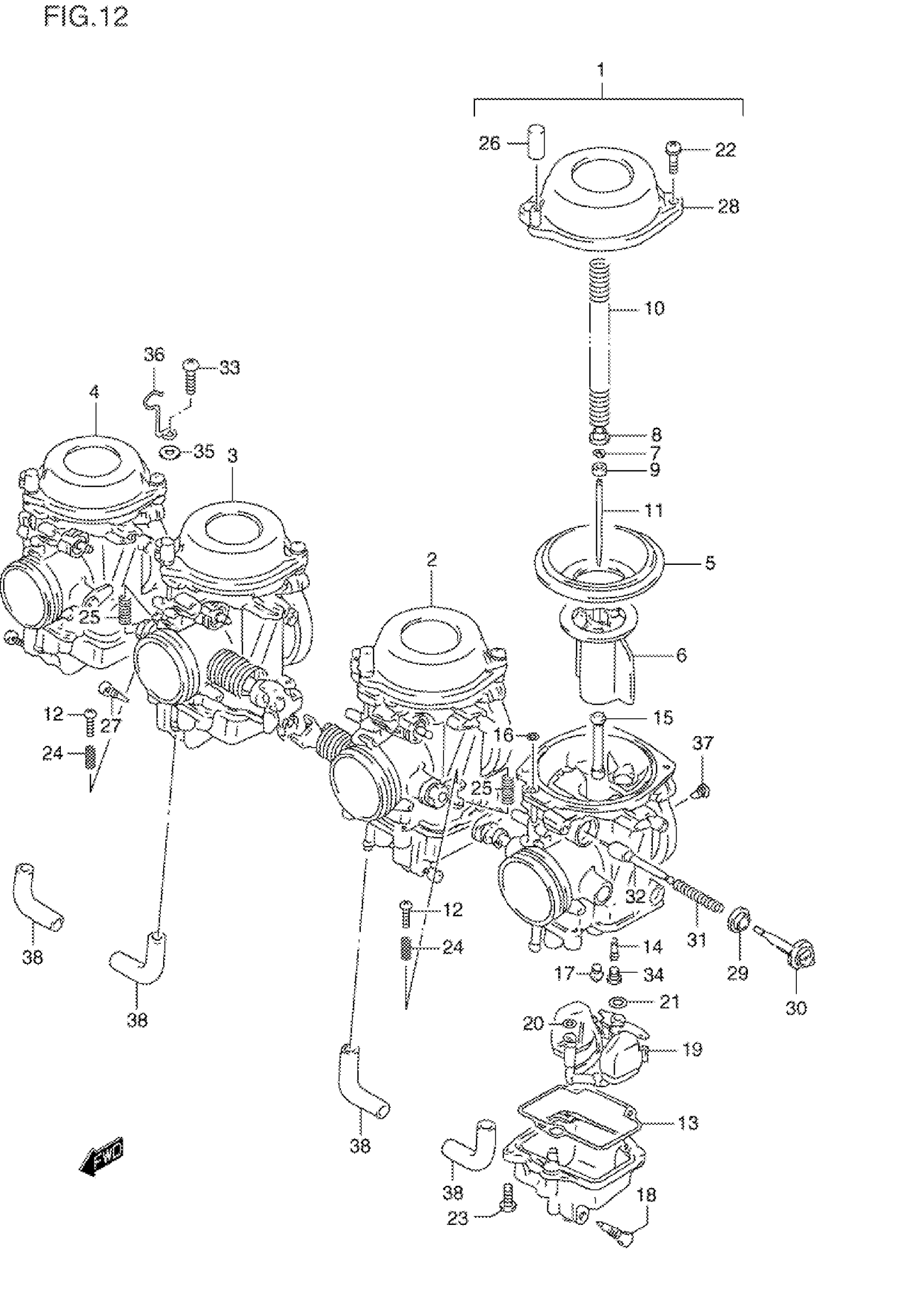

Suzuki GSX600FV (1997) CARBURETOR Diagram

#

Description
Price

1

CARBURETOR ASSY, LH

13201-44C11

Unavailable

1

CARBURETOR ASSY, LH | E33

13201-44CA1

Unavailable

2

CARBURETOR ASSY, ML

13202-44C11

Unavailable

2

CARBURETOR ASSY, ML | E33

13202-44CA1

Unavailable

3

CARBURETOR ASSY, MR

13203-44C11

Unavailable

3

CARBURETOR ASSY, MR | E33

13203-44CA1

Unavailable

4

CARBURETOR ASSY, RH

13204-44C11

Unavailable

4

CARBURETOR ASSY, RH | E33; Includes Item(s) 5 - 38

13204-44CA1

Unavailable

5

.DIAPHRAGM This part replaces 13507-17C01.

13507-17C02

$29.60

6

VALVE, PISTON

13501-01D00

Unavailable

7

.E-RING

13394-40D20

$5.45

8

RING

13382-42A00

$4.48

9

RING

13387-47010

$7.22

10

SPRING

13417-42A00

$6.79

11

NEEDLE, JET (5F104)

13383-44C00

Unavailable

11

NEEDLE, JET (5F11) | E33

13383-44C40

Unavailable

12

SCREW | ML:2,MR:1

13267-44B00

$4.10

13

GASKET, FLOAT CHAMBER

13258-44B00

$9.78

14

JET, PILOT (32.5)

09492-32006

$11.32

15

JET, NEEDLE (P-2M)

09494-00874

Unavailable

15

JET, NEEDLE (P-1M) | E33

09494-00873

Unavailable

16

O RING

13509-17C00

$4.34

17

JET, MAIN (112.5)

09491-22015

$9.69

18

SCREW, DRAIN | LH,RH

13247-24500

Unavailable

19

FLOAT ASSY This part replaces 13250-44C00.

13250-13D00

$127.20

19

FLOAT/NEEDLE VALVE ASSY | E33

13250-44C10

Unavailable

20

.O RING

13374-46710

$4.48

21

O RING This part replaces 13374-44080.

13374-35C00

$5.99

22

SCREW | LH,ML,RH:2,MR:1 This part replaces 02112-75163.

02112-7516A

$2.41

23

SCREW

02112-05127

$1.97

24

SPRING | ML:2,MR:1

13271-44B00

$3.89

25

SPRING | ML;2,MR:1

13268-17C10

$6.19

26

CAP

13508-17C00

$4.74

27

SCREW, DRAIN | ML,MR This part replaces 13247-13A00.

13247-02340

$4.99

28

COVER, DIAPHRAGM

13502-01D00

$34.27

29

CAP,STARTER This part replaces 13418-17C00.

13418-17C01

$4.19

30

HOLDER

13418-17C10

$13.90

31

SPRING

13417-09110

$6.30

32

PLUNGER ASSY

13411-01D00

Unavailable

33

SCREW | MR

02112-05164

$2.63

34

PLUG

13357-34C00

$4.60

35

WASHER, FRONT | MR This part replaces 08322-01053.

08322-0105A

$1.84

36

CLIP | MR

13671-20C20

Unavailable

37

JET, PILOT AIR (1.55)

09493-31001

$16.87

37

JET, PILOT AIR (1.50) | E33

09493-30004

$16.87

38

HOSE | E33 This part replaces 13684-48B10.

13684-48B11

$15.96
