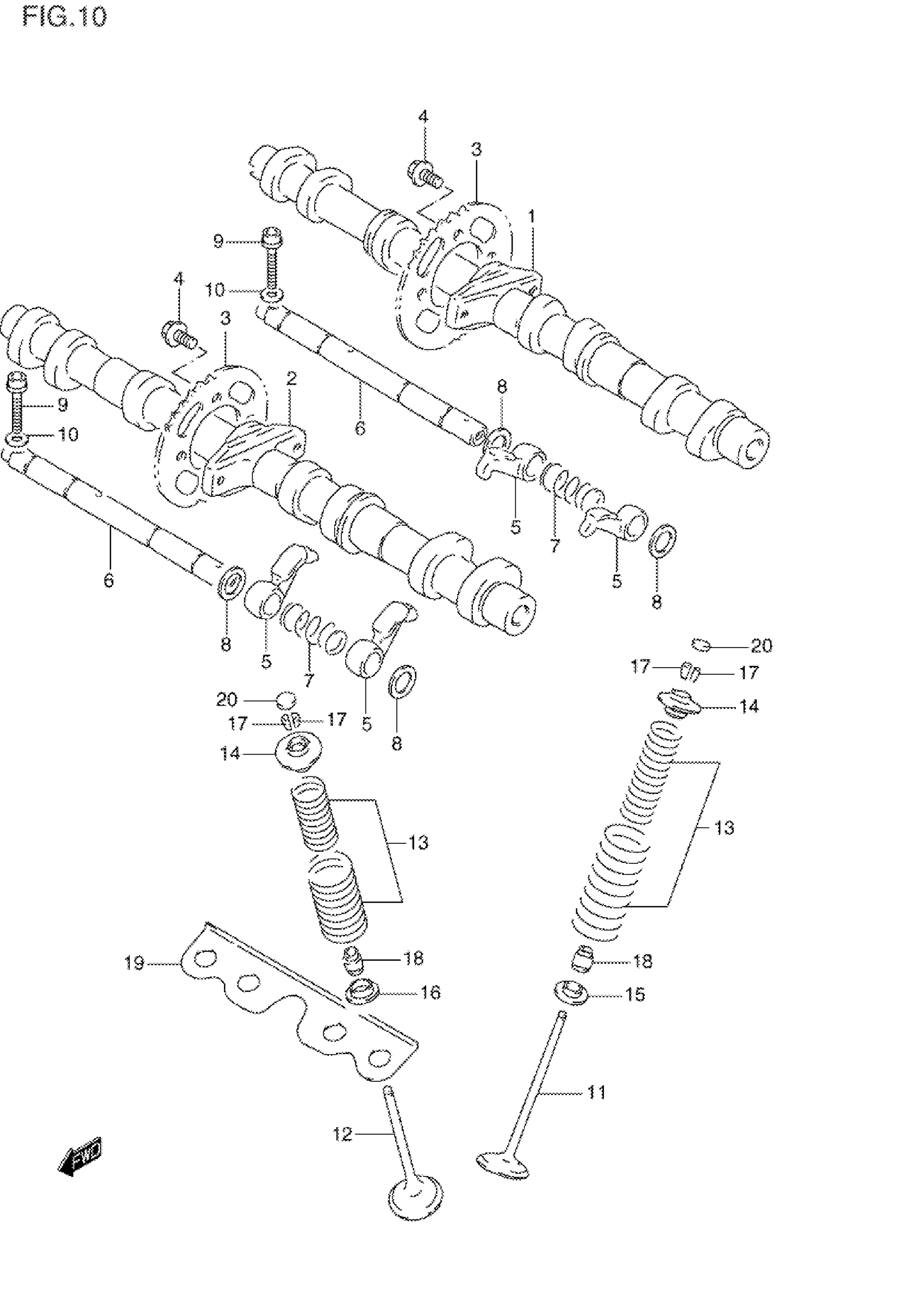

Suzuki GSX600FV (1997) CAM SHAFT / VALVE Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE This part replaces 12711-19E10.

12711-19E11

Unavailable

1

CAM SHAFT, INTAKE | E28

12711-19E00

Unavailable

1

CAMSHAFT,INTAKE | E33 This part replaces 12711-19E20.

12711-19E21

Unavailable

2

CAMSHAFT,EXHAUS This part replaces 12721-19E00.

12721-19E01

Unavailable

2

NO DESCRIPTION AVAILABLE | E33 This part replaces 12721-19E20.

12721-19E21

Unavailable

3

SPROCKET, CAM SHAFT

12741-26E00

Unavailable

4

BOLT (7X11.5)

09103-07001

$2.43

5

ARM, VALVE ROCKER

12841-33C02

Unavailable

6

SHAFT, VALVE ROCKER ARM

12861-19E00

Unavailable

7

SPRING

09440-14044

Unavailable

8

WASHER

08212-12183

Unavailable

9

BOLT, CENTER This part replaces 07120-06253.

07120-0625A

$2.50

10

.WASHER This part replaces 08322-01063.

08322-0106B

$2.26

11

VALVE, INTAKE

12911-19E00

Unavailable

12

VALVE, EXHAUST

12912-19E00

Unavailable

13

SPRING SET, VALVE

12920-41C00

Unavailable

14

RETAINER. VALVE SPRING

12931-41C01

Unavailable

15

SEAT,VALVE SPRING

12933-81400

$5.17

16

SEAT, SPRING EXHAUST

12934-27A01

$5.36

17

COTTER, VALVE

12932-27A00

$2.26

18

OIL SEAL (5X10X8.7)

09289-05011

$6.32

19

PLATE, VALVE SEAT

11137-19C01

Unavailable

20

SHIM, TAPPET (T:2.30)

12892-41C00-230

$11.38

20

SHIM, TAPPET (T:2.35)

12892-41C00-235

$11.83

20

SHIM, TAPPET (T:2.40)

12892-41C00-240

$11.83

20

SHIM, TAPPET (T:2.45)

12892-41C00-245

$11.83

20

SHIM, TAPPET (T:2.50)

12892-41C00-250

$11.83

20

SHIM, TAPPET (T:2.55)

12892-41C00-255

$11.83

20

SHIM, TAPPET (T:2.60)

12892-41C00-260

$11.38

20

SHIM, TAPPET (T:2.65)

12892-41C00-265

$11.38

20

SHIM, TAPPET (T:2.70)

12892-41C00-270

$11.38

20

SHIM, TAPPET (T:2.75)

12892-41C00-275

$9.69

20

SHIM, TAPPET (T:2.80)

12892-41C00-280

$11.38

20

SHIM, TAPPET (T:2.85)

12892-41C00-285

$11.83

20

SHIM, TAPPET (T:2.90)

12892-41C00-290

$11.38

20

SHIM, TAPPET (T:2.95)

12892-41C00-295

$11.83

20

SHIM, TAPPET (T:3.00)

12892-41C00-300

$11.60

20

SHIM, TAPPET (T:3.05)

12892-41C00-305

$11.83

20

SHIM, TAPPET (T:3.10)

12892-41C00-310

$11.38

20

SHIM, TAPPET (T:3.15)

12892-41C00-315

Unavailable

20

SHIM, TAPPET (T:3.20)

12892-41C00-320

$11.60

20

SHIM, TAPPET (T:3.25)

12892-41C00-325

$11.83

20

SHIM, TAPPET (T:3.30)

12892-41C00-330

$11.83

20

SHIM, TAPPET (T:3.35)

12892-41C00-335

$11.83

20

SHIM, TAPPET (T:3.40)

12892-41C00-340

$11.83

20

SHIM, TAPPET (T:3.45)

12892-41C00-345

Unavailable

20

SHIM, TAPPET (T:3.50)

12892-41C00-350

$11.83

21

SHIM SET, TAPPET | OPT NOT SHOWN.22; Includes Item(s) 22

12800-41810

$1,138.37

22

CASE, TAPPET SHIM

99000-69471

Unavailable
