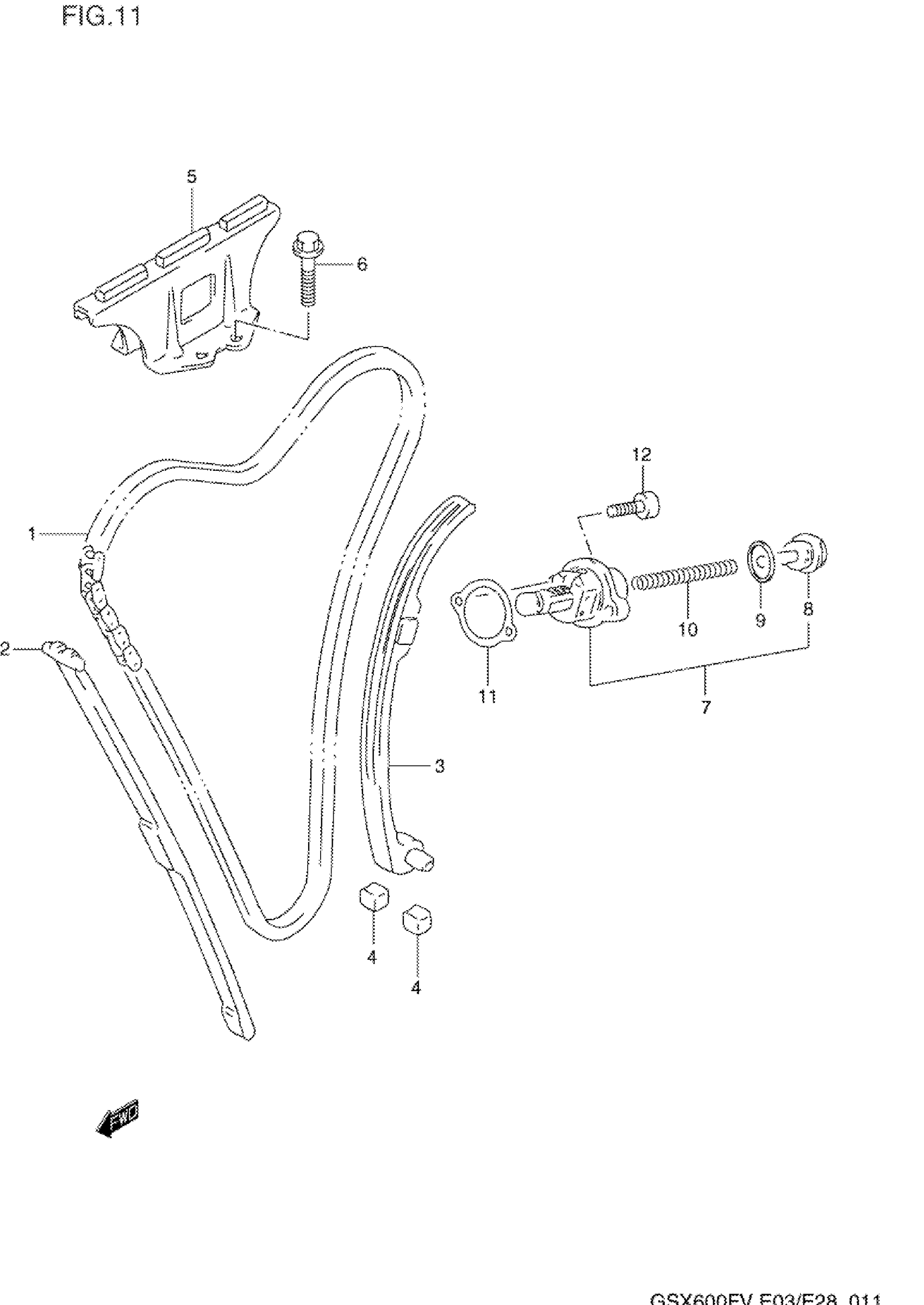

Suzuki GSX600FV (1997) CAM CHAIN Diagram

#

Description
Price

1

CHAIN, CAM SHAFT DRIVE

12760-26E00

$176.83

2

GUIDE, CAM CHAIN NO.1

12771-26E00

Unavailable

3

TENSIONER,CAM C This part replaces 12810-26E00.

12810-26E01

$76.42

4

CUSHION

12814-34200

$5.58

5

GUIDE, CAM CHAIN NO.2

12782-26E00

Unavailable

6

BOLT This part replaces 01550-06163.

01550-0616A

$1.97

7

ADJUSTER ASSY, TENSIONER | Includes Item(s) 8 - 10

12830-46E10

$158.33

8

PLUG

12834-27A00

Unavailable

9

GASKET

12832-27A00

$6.91

10

SPRING

12833-26D10

$6.88

11

GASKET, ADJUSTER

12837-27A10

$3.85

12

BOLT This part replaces 07130-06253.

07130-0625B

$3.04
