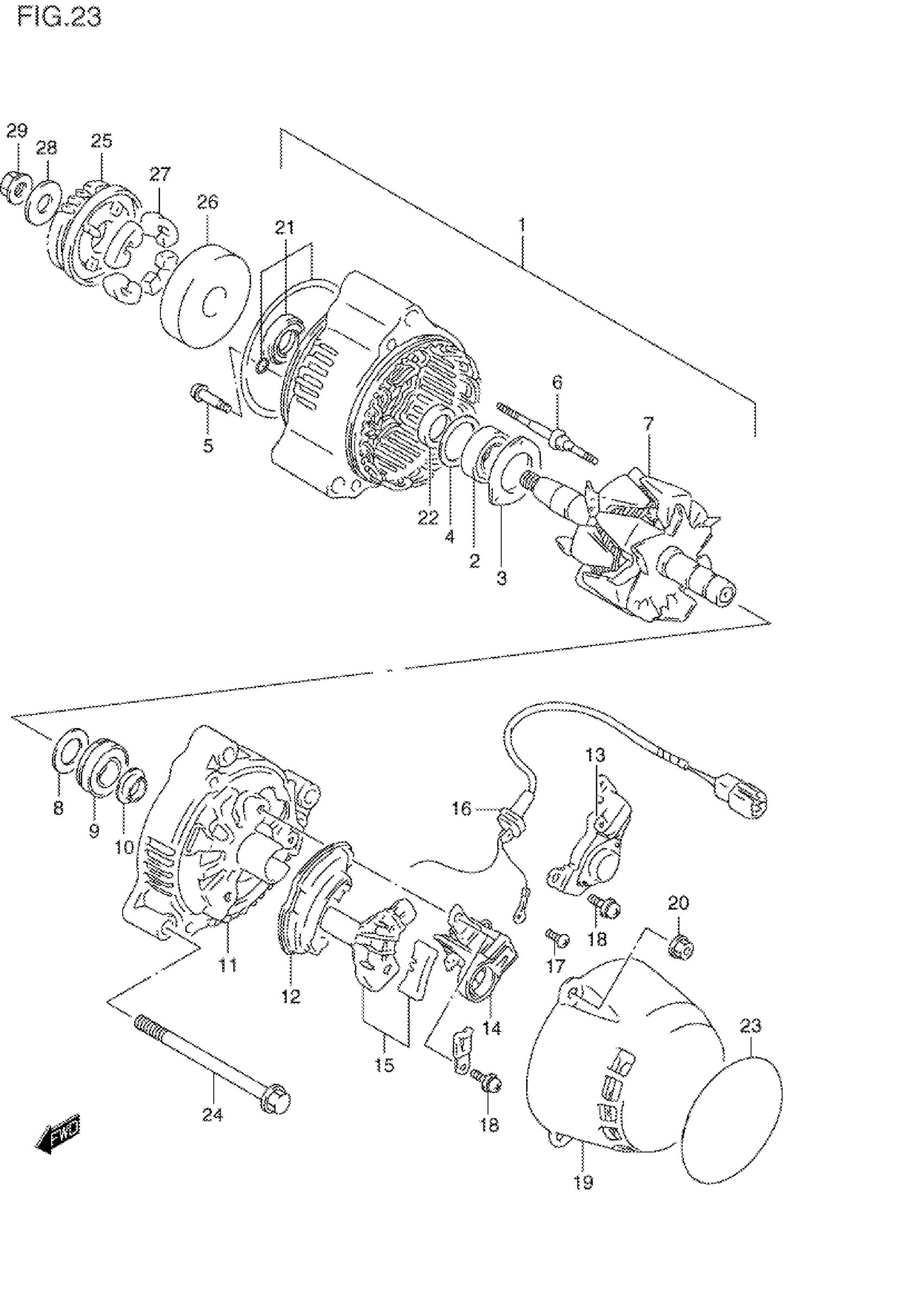

Suzuki GSX600FV (1997) ALTERNATOR Diagram

#

Description
Price

1

ALTERNATOR ASSY | Includes Item(s) 2 - 23

31400-17C04

Unavailable

2

BEARING

31612-06B00

Unavailable

3

RETAINER, BEARING

31585-48B00

Unavailable

4

COVER, BEARING

31613-48B00

Unavailable

5

SCREW

31586-48B00

Unavailable

6

STUD BOLT

31587-85250

Unavailable

7

ROTOR ASSY

31710-48B04

Unavailable

8

COVER (1)

31613-82610

Unavailable

9

BEARING

31612-48B00

$47.07

10

COVER (2)

31613-27A10

Unavailable

11

FRAME, END

31611-48B00

Unavailable

12

HOLDER, RECTIFIER

31621-27A00

Unavailable

13

REGULATOR

32500-27A00

Unavailable

14

HOLDER, BRUSH

31656-48B00

Unavailable

15

COVER, RECTIFIER

31687-17E00

$6.88

16

LEAD WIRE

31480-48B00

Unavailable

17

SCREW This part replaces 02112-04063.

02112-0406B

$1.55

18

SCREW (5X17)

31688-27A00

Unavailable

19

COVER

31614-48B00

Unavailable

20

NUT This part replaces 08316-10053.

08316-1005A

$2.19

21

OIL SEAL SET

31780-27X50

$53.82

22

SPACER

31776-06B00

Unavailable

23

PROTECTOR, ALTERNATOR

31615-27E00

Unavailable

24

BOLT This part replaces 01550-08903.

01550-0890B

$5.37

25

GEAR, GENERATOR DRIVEN (NT:30) This part replaces 22730-19C01.

22730-19C02

Unavailable

26

HOUSING DAMPER This part replaces 22733-27A04.

22733-27A05

Unavailable

27

DAMPER

21231-06B00

$4.64

28

WASHER

08211-10283

$3.78

29

NUT This part replaces 08316-20103.

08316-2010B

$3.43
