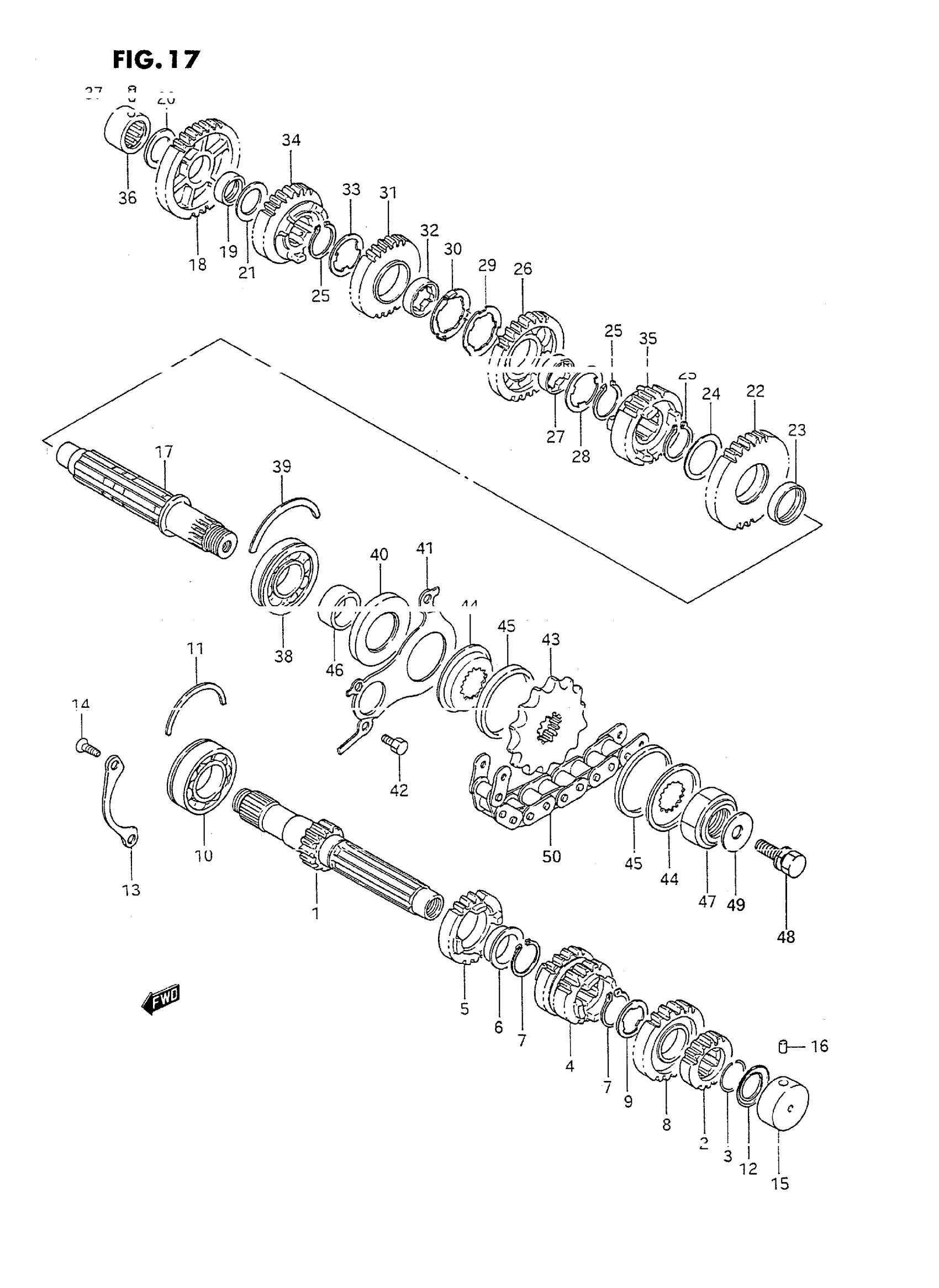

Suzuki GSX600FT (1996) TRANSMISSION Diagram

#

Description
Price

1

COUNTERSHAFT (NT:12) | MODEL J/K/L/M

24121-19C01

Unavailable

1

COUNTERSHAFT (NT:12) | MODEL N/P This part replaces 24121-20C00.

24121-20C10

Unavailable

1

COUNTERSHAFT (NT:12) | MODEL R/S/T

24121-20C10

Unavailable

2

GEAR, 2ND DRIVE (NT:16) | MODEL J/K/L/M/N/P

24221-27A01

Unavailable

2

GEAR, 2ND DRIVE (NT:16) | MODEL R/S This part replaces 24221-27A10.

24221-27A01

Unavailable

2

GEAR, 2ND DRIVE (NT:16) | MODEL T

24221-27A01

Unavailable

3

CIRCLIP | MODEL J/K/L/M

09380-25012

$2.47

3

CIRCLIP | MODEL N/P/R/S/T

09380-25013

$4.17

4

GEAR, 3/4TH DRIVE (NT:17/20) | MODEL J/K/L/M/N/P

24231-27A00

Unavailable

4

GEAR, 3/4TH DRIVE (NT:17/20) | MODEL R/S This part replaces 24231-27A10.

24231-27A00

Unavailable

4

GEAR, 3/4TH DRIVE (NT:17/20) | MODEL T

24231-27A00

Unavailable

5

GEAR, 5TH DRIVE (NT:22)

24251-27A01

Unavailable

6

BUSH, 2ND DRIVEN This part replaces 09301-25001.

24322-19F00

$23.78

7

SNAP RING

09380-25003

$3.04

8

GEAR, 6TH DRIVE (NT:21) | ~E.NO.129569 This part replaces 24261-27A00.

24261-17C02

Unavailable

8

GEAR, 6TH DRIVE (NT:21) | E.NO.129570~ This part replaces 24261-17C01.

24261-17C02

Unavailable

9

WASHER LOCK (25.1X31X1.0)

09167-25012

$3.70

10

BEARING, LH | MODEL J/K/L/M/N/P/R This part replaces 09262-25051.

09262-25105

$68.10

10

BEARING, RH | MODEL S/T

09262-25115

Unavailable

11

C RING | MODEL J/K/L/M/N/P/R This part replaces 09390-62006.

09390-62012

$7.31

11

C RING | MODEL S/T

09390-62012

$7.31

12

OIL SEAL

09285-20006

$6.51

13

HOLDER, BEARING

24741-27A00

$10.07

14

SCREW | MODEL J/K/L/M/N/P

02122-06167

$1.49

14

SCREW | MODEL R/S/T This part replaces 02122-06163.

02122-0616A

$1.49

15

BEARING(20X34X1 This part replaces 09263-20049.

09263-20119

$55.20

16

PIN

04221-07129

$1.86

17

DRIVESHAFT | MODEL J/K/L/M/N/P/R

24131-27A02

Unavailable

17

DRIVESHAFT | MODEL S/T

24131-20C00

Unavailable

18

GEAR, 1ST DRIVEN (NT:37) | MODEL J/K/L/M/N/P This part replaces 24311-19C01.

24311-19C10

Unavailable

18

GEAR, 1ST DRIVEN (NT:37) | MODEL R/S/T

24311-19C10

Unavailable

19

BUSH

09300-22008

$14.82

20

WASHER, RH

08211-20341

$2.80

21

WASHER, LH

08211-22341

$3.85

22

GEAR, 2ND DRIVEN (NT:33) | MODEL J/K/L/M/N/P/R

24321-27A02

Unavailable

22

GEAR, 2ND DRIVEN (NT:33) | MODEL S/T This part replaces 24321-20C10.

24321-20C00

Unavailable

22

GEAR, 2ND DRIVEN (NT:33) | MODEL T

24321-20C00

Unavailable

23

BUSH | MODEL J/K/L/M/N/P/R

09300-28001

Unavailable

23

BUSH | MODEL S/T

09300-28003

Unavailable

24

.SHIM (28X38X1) This part replaces 08211-28381.

09181-28195

$4.77

25

CIRCLIP This part replaces 08331-31286.

08331-31289

$2.19

26

GEAR, 3RD DRIVEN (NT:28) | ~E.NO.129569

24331-27A00

Unavailable

26

GEAR, 3RD DRIVEN (NT:28) | E.NO.129570~

24331-17D00

Unavailable

26

GEAR, 3RD DRIVEN (NT:28) | MODEL S This part replaces 24331-27A10.

24331-27A00

Unavailable

26

GEAR, 3RD DRIVEN (NT:28) | MODEL T

24331-27A00

Unavailable

27

BUSH

24332-27A00

Unavailable

28

WASHER, LH

09167-28001

$4.60

29

WASHER, RH (T:1.5)

09167-28002

$4.77

30

WASHER, RH (T:1.0)

09169-28001

$3.85

31

GEAR, 4TH DRIVEN (NT:28) | MODEL J/K/L/M This part replaces 24341-27A00.

24341-27A01

Unavailable

31

GEAR, 4TH DRIVEN (NT:28) | MODEL N/P/R/S/T

24341-27A01

Unavailable

32

BUSH

24332-27A00

Unavailable

33

WASHER, RH

09167-28001

$4.60

34

GEAR, 5TH DRIVEN (NT:27)

24351-27A00

Unavailable

35

GEAR, 6TH DRIVEN (NT:23) | ~E.NO.129569

24361-27A02

Unavailable

35

GEAR, 6TH DRIVEN (NT:23) | E.NO.129569~

24361-27A03

Unavailable

35

GEAR, 6TH DRIVEN (NT:23) | MODEL S/T This part replaces 24361-20C00.

24361-20C01

Unavailable

36

BEARING, RH

09263-20040

$55.20

37

PIN (L:20)

04221-07209

$2.30

38

BEARING, LH | MODEL J/K/L/M/N/P/R

09262-25105

$68.10

38

BEARING, LH | MODEL S/T

09262-25115

Unavailable

39

C RING | MODEL J/K/L/M/N/P/R This part replaces 09390-62006.

09390-62012

$7.31

39

C RING | MODEL S/T

09390-62012

$7.31

40

OIL SEAL

09283-34005

$12.61

41

PLATE

24751-27A01

Unavailable

42

BOLT | MODEL J/K/L/M/N/P This part replaces 01107-06107.

01500-06107

$2.06

42

BOLT | MODEL R/S/T This part replaces 01500-06123.

01500-0612A

$1.78

43

SPROCKET, ENGINE (NT:14) This part replaces 27511-27A11.

27510-21E00

Unavailable

44

HOLDER, DAMPER

27516-19C00

$3.77

45

DAMPER, ENGINE SPROCKET

27517-31300

Unavailable

46

SPACER (25X34X16.1)

09180-25090

Unavailable

47

NUT

09159-20004

$15.67

48

BOLT | MODEL J/K/L/M/N/P This part replaces 01147-06168.

01570-06167

$3.03

48

BOLT | MODEL R/S/T This part replaces 01570-06163.

01570-0616A

$2.23

49

WASHER

08212-06222

$1.78

50

CHAIN,DRIVE 112 This part replaces 27600-19C00-112.

27600-40F20-112

$284.03
