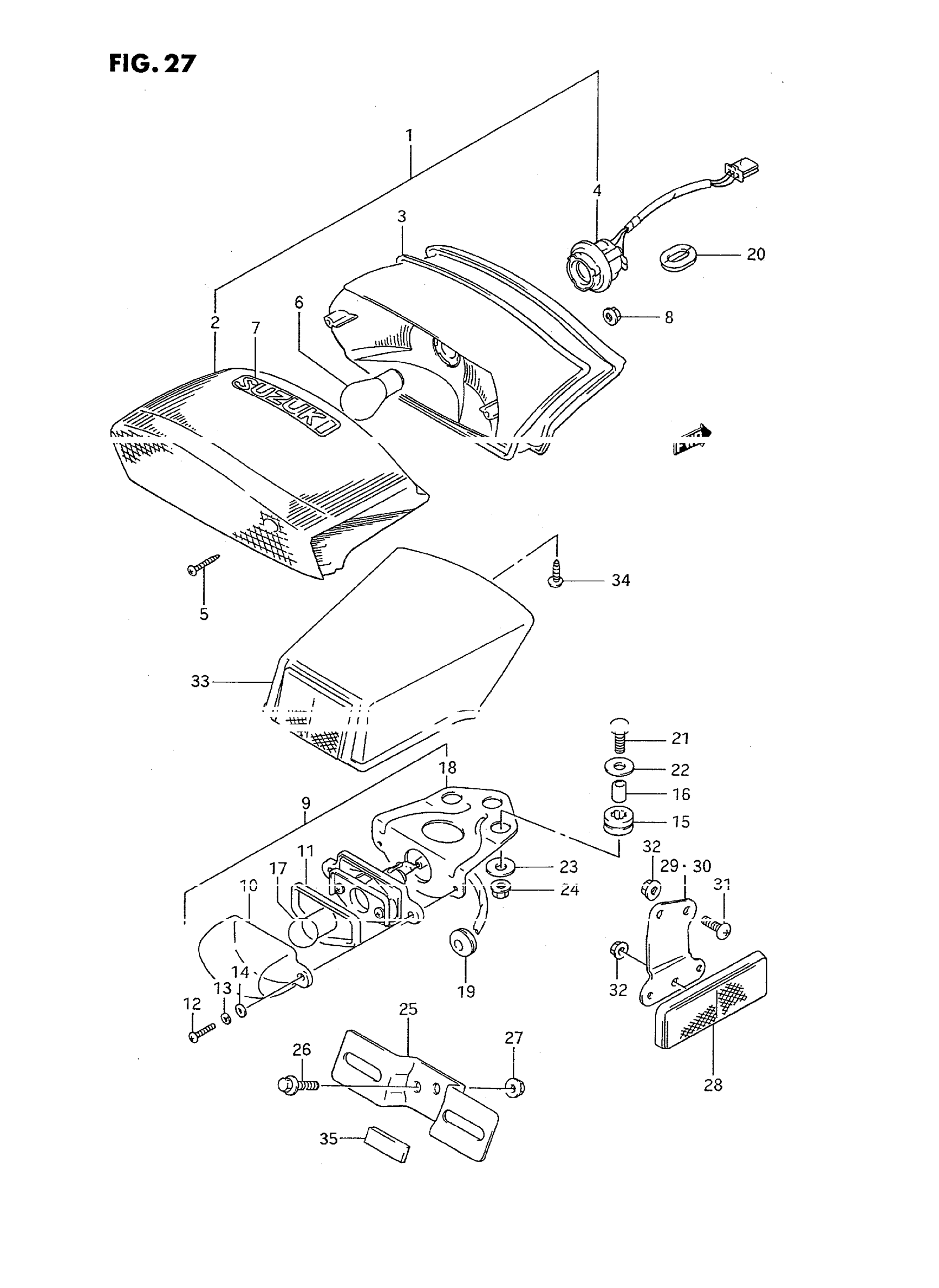

Suzuki GSX600FT (1996) TAIL LAMP - LICENSE LAMP Diagram

#

Description
Price

1

LAMP ASSY, REAR COMBINATION | MODEL J This part replaces 35710-19C00-22R.

35710-19C30

Unavailable

1

LAMP ASSY, REAR COMBINATION | MODEL K/L This part replaces 35710-19C00-764.

35710-19C30

Unavailable

1

LAMP ASSY, REAR COMBINATION | MODEL M This part replaces 35710-19C00-742.

35710-19C30

Unavailable

1

LAMP ASSY, REAR COMBINATION | MODEL N This part replaces 35710-19C00-0JW.

35710-19C30

Unavailable

1

LAMP ASSY, REAR COMBINATION | MODEL P/R/S/T; Includes Item(s) 2 - 7

35710-19C30

Unavailable

2

LENS

35712-19C00

Unavailable

3

GASKET

35713-19C00

Unavailable

4

SOCKET

35718-19C00

Unavailable

5

SCREW This part replaces 03211-04203.

03211-04207

$1.49

6

BULB (12V,21/5W)

09471-12128

$6.73

7

EMBLEM, SUZUKI (SILVER) | MODEL J This part replaces 68165-16B00-22R.

68165-16B00-0JW

Unavailable

7

EMBLEM, SUZUKI (GOLD) | MODEL K/L

68165-16B00-764

Unavailable

7

EMBLEM,SUZUK | MODEL M This part replaces 68165-16B00-742.

68165-16B01-13L

$5.35

7

EMBLEM, SUZUKI (SILVER) | MODEL N

68165-16B00-0JW

Unavailable

8

NUT This part replaces 08316-20063.

08316-2006A

$2.63

9

LAMP ASSY, LICENSE | Includes Item(s) 10 - 18

35910-19C00

Unavailable

10

LENS

35912-00A10

Unavailable

11

GASKET

35913-04A00

Unavailable

12

SCREW | MODEL J/K/L/M/N/P/R This part replaces 02112-04167.

02112-0416A

$1.49

12

SCREW | MODEL S/T This part replaces 02112-04163.

02112-0416A

$1.49

13

LOCK WASHER | MODEL J This part replaces 08321-01043.

08321-0104A

$1.84

14

WASHER

08322-01047

$1.86

15

CUSHION

35765-35300

$3.71

16

SPACER

35766-19C00

Unavailable

17

BULB (12V,5W)

09471-12058

$2.33

18

BRACKET, LICENSE LAMP

35916-19C00

Unavailable

19

GROMMET

09308-07009

Unavailable

20

GROMMET

09308-12007

Unavailable

21

BOLT, GEAR SHIFT LINK | MODEL J/K This part replaces 01500-06203.

01500-0620A

$1.78

21

BOLT (6X20) | MODEL L/M/N/P/R/S This part replaces 09116-06056.

09116-06115

$1.97

21

BOLT | MODEL T

09116-06115

$1.97

22

WASHER (6.5X20X1.2) | MODEL J/K This part replaces 09160-06027.

09160-06077

$1.91

23

WASHER (6.5X20X1.2) | MODEL J/K/L/M/N/P/R This part replaces 09160-06060.

09160-06077

$1.91

23

WASHER (6.5X20X1.2) | MODEL S/T

09160-06077

$1.91

24

NUT This part replaces 08316-20063.

08316-2006A

$2.63

25

BRACKET, LICENSE PLATE

35927-00A30

Unavailable

26

BOLT | MODEL J/K/L/M/N This part replaces 01517-06254.

01550-0625A

$1.97

26

SCREW | MODEL P This part replaces 02142-06164.

02142-0616A

$1.49

26

SCREW | MODEL R This part replaces 02142-06163.

02142-0616A

$1.49

26

SCREW | MODEL S/T This part replaces 02112-06163.

02112-0616A

$1.49

27

NUT | MODEL J/K/L/M/N This part replaces 08316-20063.

08316-2006A

$2.63

27

NUT | MODEL P/R/S/T This part replaces 08310-00063.

08310-0006A

$1.84

28

REFLECTOR, REAR | MODEL J/K/L/M/N/P/R This part replaces 35970-00A21.

35970-00A10

Unavailable

28

REFLEX REFLECTOR, RR SIDE | MODEL S/T

35970-24D60

$25.98

29

BRACKET, RH | MODEL J/K This part replaces 35975-19C00.

35975-20C01

Unavailable

29

BRACKET, RH | MODEL L/M/N/P This part replaces 35975-19C01.

35975-20C01

Unavailable

29

BRACKET, RH | MODEL R/S/T

35975-20C01

Unavailable

30

BRACKET, LH | MODEL J/K This part replaces 35976-19C00.

35976-20C01

Unavailable

30

BRACKET, LH | MODEL L/M/N/P This part replaces 35976-19C01.

35976-20C01

Unavailable

30

BRACKET, LH | MODEL R/S/T

35976-20C01

Unavailable

31

.SCREW | MODEL J/K/L/M/N/P This part replaces 02142-05124.

02142-0512A

$1.49

31

.SCREW | MODEL R/S/T This part replaces 02142-05123.

02142-0512A

$1.49

32

NUT | MODEL J/K/L/M/N/P This part replaces 08316-26055.

08316-2005A

$2.19

32

NUT | MODEL R/S/T This part replaces 08310-00053.

08310-0005A

$1.84

33

COVER, LICENSE LAMP

35917-19C00

Unavailable

34

SCREW This part replaces 03541-05163.

03541-0516A

$1.49

35

CUSHION This part replaces 35995-05C00.

33652-49000

$3.58
