1996 Suzuki GSX600FT Starting Motor Diagram

← All diagrams

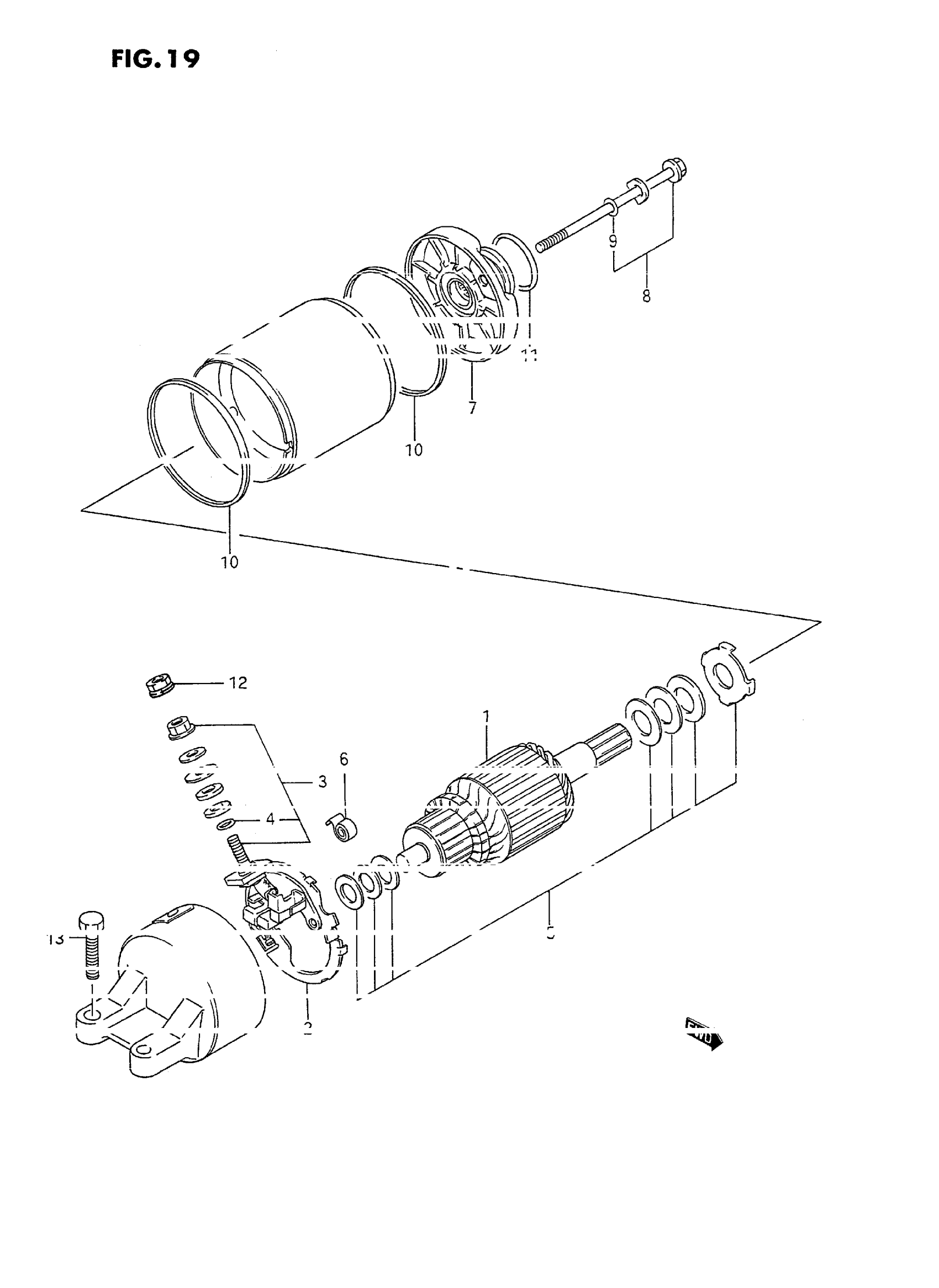

Find the part on the Starting Motor diagram for your 1996 Suzuki GSX600FT, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1996 Suzuki GSX600FT Starting Motor Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

MOTOR ASSY,STAR | MODEL J/K/L/M/N/P/R This part replaces 31100-19C01.

31100-19C03

1
Out of stock

MOTOR ASSY,STAR | MODEL S/T; Includes Item(s) 1 - 10 This part replaces 31100-19C02.

31100-19C03

1
Out of stock

1

ARMATURE | MODEL J/K/L/M This part replaces 31311-19C01.

31311-19C02

1
Out of stock

1

ARMATURE | MODEL N/P/R/S/T

31311-19C02

1
Out of stock

2

HOLDER SET, BRUSH (-)

31132-19B10

1

$33.58

In stock

3

1

$31.78

In stock

4

O RING

31143-49040

1
Out of stock

5

WASHER SET

31170-19B10

1
Out of stock

6

SPRING, BRUSH

31135-31300

2
Out of stock

7

BRACKET ASSY, FRONT

31150-19B10

1
Out of stock

8

BOLT SET

31280-19B10

2
Out of stock

9

O RING

31143-49040

2
Out of stock

10

2

$6.85

In stock

11

.O-RING (D:3,ID:24.5)

09280-24003

1
Out of stock

12

NUT This part replaces 08361-35068.

08361-3506A

1
Out of stock

13

BOLT, STARTING MOTOR This part replaces 09128-06024.

09103-06212

2
Out of stock
