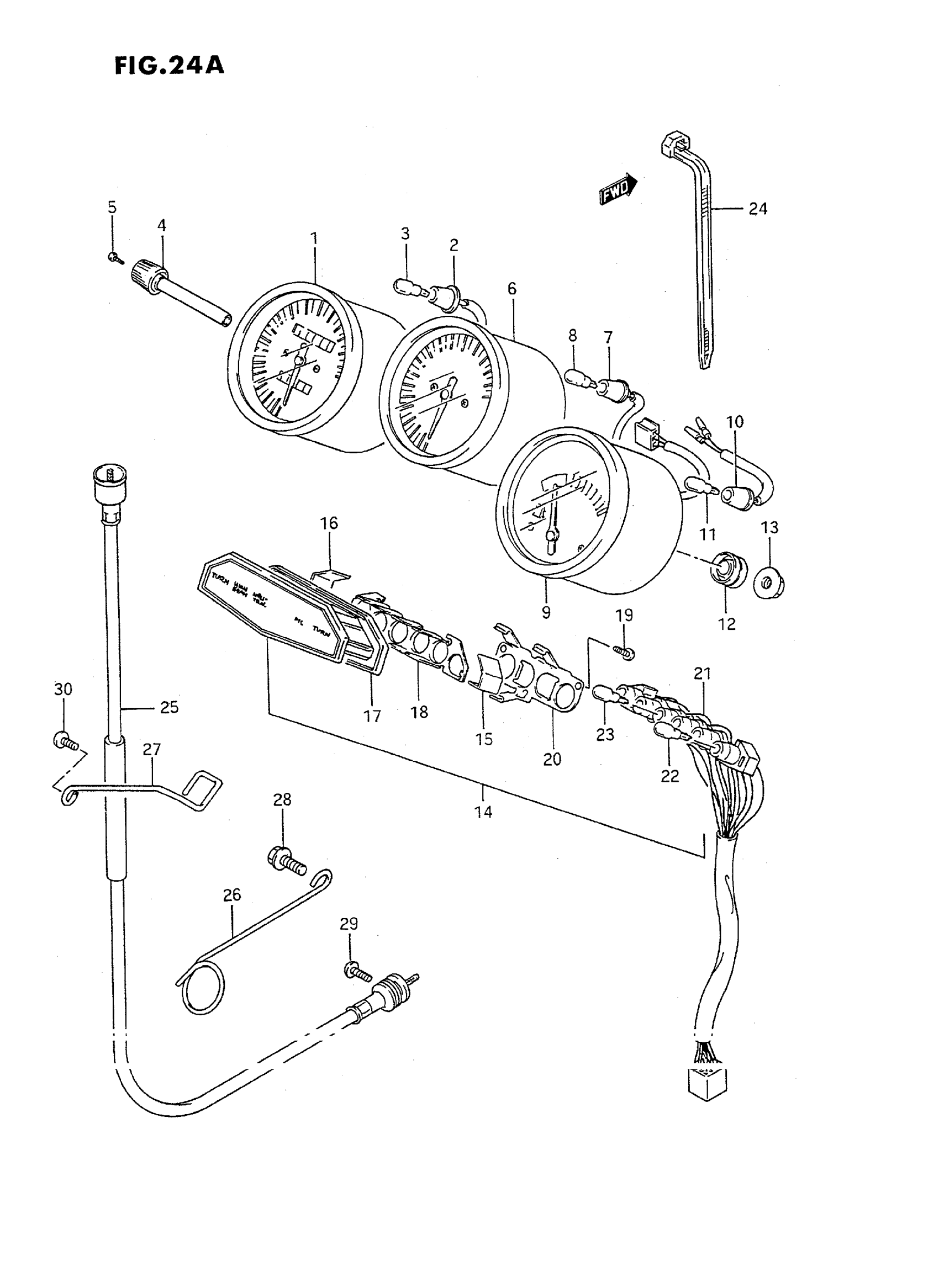

Suzuki GSX600FT (1996) SPEEDOMETER (MODEL K/L/M/N/P/S/T) Diagram

#

Description
Price

1

SPEEDOMETER | Includes Item(s) 2 - 3

34100-19C30

Unavailable

2

SOCKET

34171-19C00

Unavailable

3

BULB (12V,3W)

09471-12085

$5.01

4

KNOB, TRIP

34124-19C00

$17.28

5

SCREW, TRIP KNOB | MODEL K/L/M/N/P/R This part replaces 34184-14A00.

34184-12D00

$2.93

5

SCREW | MODEL S/T

34184-12D00

$2.93

6

TACHOMETER | Includes Item(s) 7 - 8

34200-19C11

Unavailable

7

SOCKET

34171-19C10

Unavailable

8

BULB (12V,3W)

09471-12085

$5.01

9

FUEL METER | Includes Item(s) 10 - 11 This part replaces 34300-19C10.

34300-19C20

Unavailable

10

SOCKET

34171-19C10

Unavailable

11

BULB (12V,3W)

09471-12085

$5.01

12

CUSHION

34189-30921

$3.41

13

NUT (M6) | MODEL K/L/M/N/P/R This part replaces 34185-19C00.

09159-06076

$2.81

13

NUT (M6) | MODEL S/T

09159-06076

$2.81

14

NO DESCRIPTION AVAILABLE | Includes Item(s) 15 - 23 This part replaces 36380-19C10.

36380-19C11

Unavailable

15

PLATE, TURN RH

36383-27A00

Unavailable

16

PLATE, TURN LH

36384-27A00

Unavailable

17

CUSHION, CASE

34196-19C00

Unavailable

18

PLATE, PILOT LAMP

36382-27A00

Unavailable

19

SCREW | MODEL K/L/M/N/P/R This part replaces 36387-27A00.

36457-45100

Unavailable

19

SCREW | MODEL S/T

36457-45100

Unavailable

20

LOCK PLATE

34197-19C00

Unavailable

21

SOCKET

34171-19C20

Unavailable

22

BULB (12V,1.7W)

09471-12100

$4.13

23

BULB (12V,3W)

09471-12085

$5.01

24

CLAMP, METER LEAD

09407-14403

$2.26

25

CABLE,SPEEDOMET This part replaces 34910-19C01.

34910-19C02

$31.75

26

CLAMP, CABLE

34938-45100

$6.57

27

CLAMP,SPEEDOMET This part replaces 34938-34C01.

34938-34C0V

Unavailable

28

BOLT | MODEL K/L/M/N/P

01550-06107

$2.80

28

BOLT | MODEL R This part replaces 01550-06103.

01550-0610A

$1.97

28

BOLT | MODEL S/T This part replaces 01550-06163.

01550-0616A

$1.97

29

SCREW | MODEL K/L/M/N/P

02112-05164

$2.63

29

.SCREW | MODEL R/S/T This part replaces 02112-05163.

02112-0516A

$1.49

30

.SCREW | MODEL K/L/M/N/P This part replaces 02142-05124.

02142-0512A

$1.49

30

.SCREW | MODEL R/S/T This part replaces 02142-05123.

02142-0512A

$1.49
