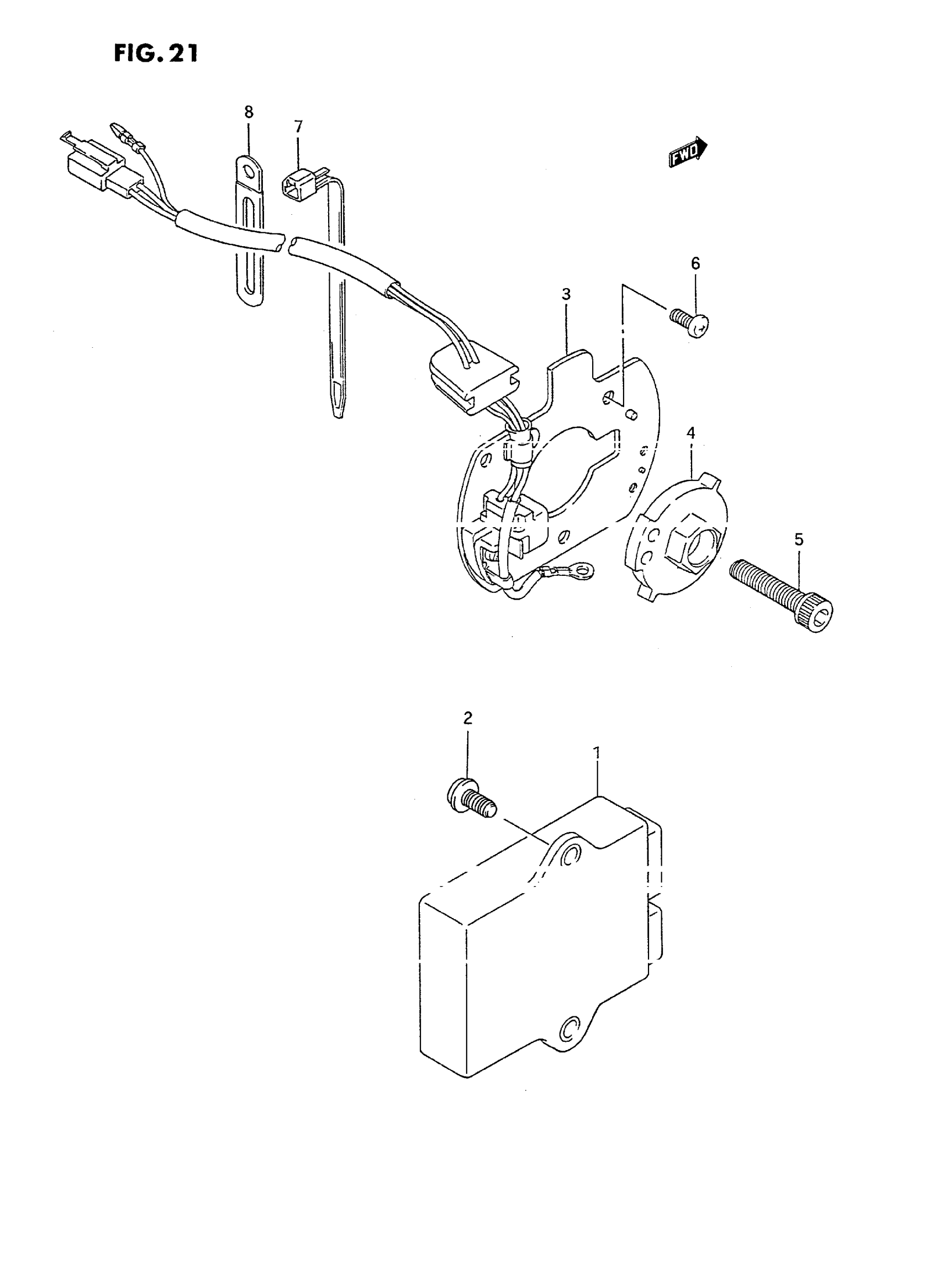

Suzuki GSX600FT (1996) SIGNAL GENERATOR Diagram

#

Description
Price

1

IGNITER UNIT | MODEL J/K/L/M/N/P/R/S

32900-19C00

Unavailable

1

IGNITER UNIT | MODEL T

32900-19C40

Unavailable

2

SCREW | MODEL J/K/L/M/N/P This part replaces 02112-16126.

02112-1612B

$3.03

2

SCREW | MODEL R/S/T This part replaces 02142-06123.

02142-0612A

$1.49

3

STATOR, SIGNAL GENERATOR | MODEL J This part replaces 33110-19C00.

33110-17C00

$292.98

3

SIGNAL GENERATOR ASSY | MODEL K/L/M/N/P/R/S/T

33110-17C00

$292.98

4

ROTOR, SIGNAL GENERATOR | MODEL J/K/L/M/N/P/R/S This part replaces 33120-19C00.

33120-19C20

$198.45

4

ROTOR, SIGNAL | MODEL T

33120-19C20

$198.45

5

BOLT, STEERING DAMPER | MODEL J/K/L/M/N/P This part replaces 07110-08306.

07130-0830A

$1.74

5

BOLT, STEERING DAMPER | MODEL R/S/T This part replaces 07130-08303.

07130-0830A

$1.74

6

SCREW | MODEL J/K/L/M/N/P/R

02112-05107

$1.49

6

SCREW, THROTTLE | MODEL S/T This part replaces 02112-05103.

02112-0510A

$1.49

7

CLAMP (L:125) | MODEL JMODEL M/N/P/R/S

09407-14403

$2.26

7

CLAMP (L:95) | MODEL T

09407-11401

$2.63

8

CLAMP | MODEL K/L This part replaces 09404-08403.

09404-08420

$3.16
