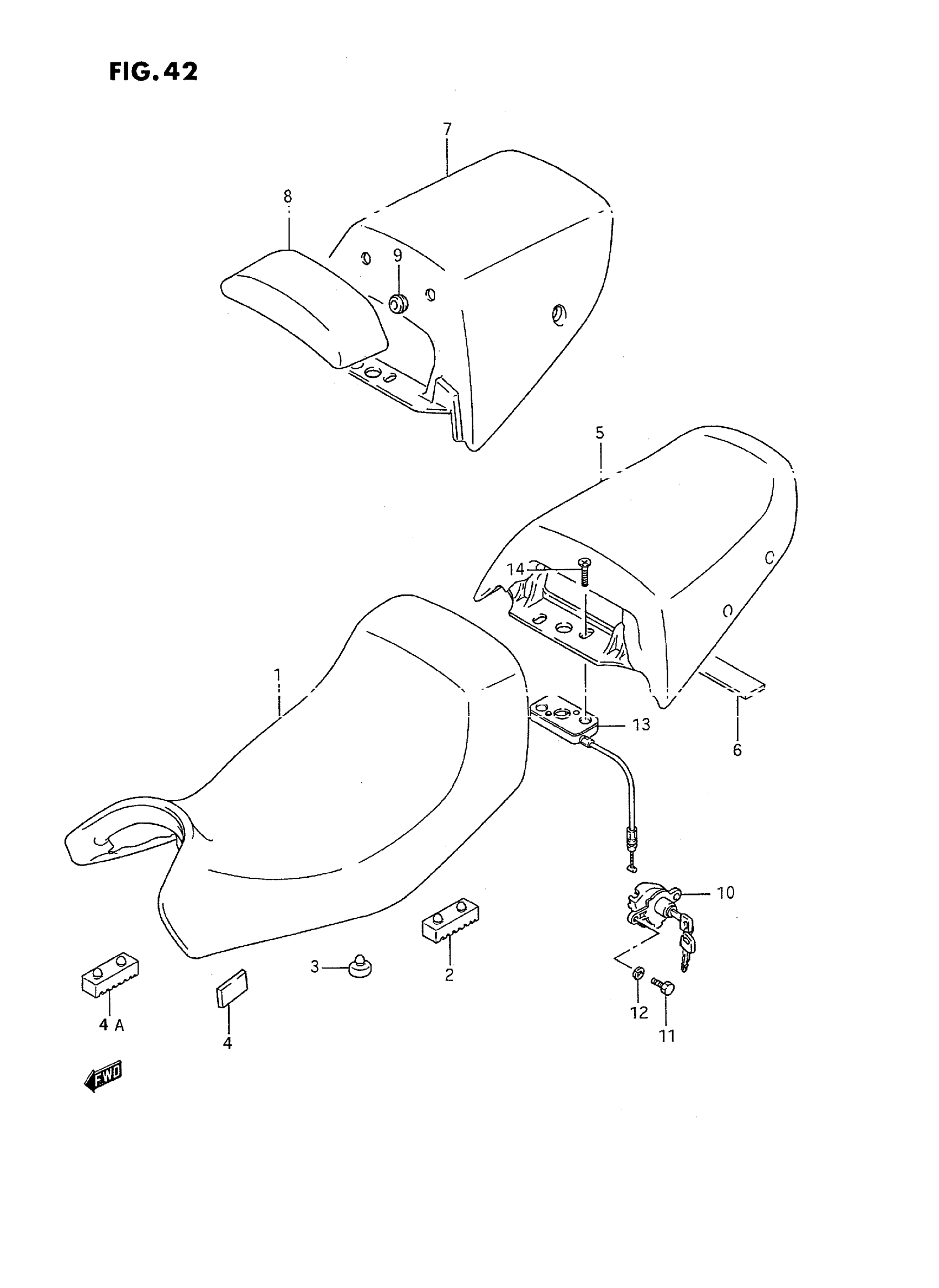

Suzuki GSX600FT (1996) SEAT (MODEL J/K/L/M/N/P) Diagram

#

Description
Price

1

SEAT SET (RED) | MODEL J FOR 07PMODEL K/L/M FOR 28V

45100-19C00-4VP

Unavailable

1

SEAT SET (BLACK) | MODEL J FOR 38KMODEL K FOR 31X This part replaces 45100-19C00-5FM.

45100-19C00-58R

Unavailable

1

SEAT SET (BLACK) | MODEL L/M FOR 33JMODEL N/P; Includes Item(s) 2 - 3

45100-19C00-58R

Unavailable

2

CUSHION

45149-43500

$6.85

3

CUSHION

09321-10012

$2.92

4

CUSHION

45255-20920

Unavailable

4A

CUSHION

45149-31300

$3.56

5

SEAT SET, PILLION (RED) | MODEL J FOR 07PMODEL K/L/M FOR 28V This part replaces 45300-19C00-4VP.

45300-19C00-6YD

Unavailable

5

SEAT SET, PILLION (BLACK) | MODEL J FOR 38K This part replaces 45300-19C00-5FM.

45300-19C00-58R

Unavailable

5

SEAT SET, PILLION (BLACK) | MODEL K FOR 31XMODEL L/M FOR 33JMODEL N/P

45300-19C00-58R

Unavailable

6

CUSHION

45147-19C00

Unavailable

7

COVER, SEAT TAIL (WHITE) | OPT,MODEL J

45500-19C00-22R

Unavailable

7

COVER, SEAT TAIL (WHITE) | OPT,MODEL J

45500-19C00-06X

Unavailable

7

COVER, SEAT TAIL (RED) | OPT,MODEL J

45500-19C00-07P

Unavailable

7

COVER, SEAT TAIL (BLUE) | OPT,MODEL J

45500-19C00-38K

Unavailable

7

COVER, SEAT TAIL (RED) | OPT,MODEL K/L/M

45500-19C00-28V

Unavailable

7

COVER, SEAT TAIL (BLUE) | OPT,MODEL K

45500-19C00-24V

Unavailable

7

COVER, SEAT TAIL (BLACK) | OPT,MODEL L/M/N/P

45500-19C00-33J

Unavailable

7

COVER, SEAT TAIL (RED) | OPT,MODEL N

45500-19C00-19A

Unavailable

7

COVER, SEAT TAIL (RED) | OPT,MODEL P; Includes Item(s) 8 - 9

45500-19C00-1MW

Unavailable

8

PAD ASSY, SEAT TAIL (RED) | OPT,FOR 22R,07P,28V

45350-19C00-4VP

Unavailable

8

PAD ASSY, SEAT TAIL (BLUE) | OPT,FOR 06X,38K

45350-19C00-5FM

Unavailable

8

PAD ASSY, SEAT TAIL (BLACK) | OPT,FOR 31X,33J,MODEL N/P

45350-19C00-58R

Unavailable

9

CUSHION | OPT This part replaces 09320-09026.

09320-09062

$2.00

10

CAP SET,SEAT This part replaces 45700-19840.

45700-19841

Unavailable

11

BOLT | MODEL J/K/L/M This part replaces 01107-06165.

01500-0616A

$1.78

11

BOLT | MODEL N This part replaces 01137-06165.

01570-0616A

$2.23

11

BOLT | MODEL P

01570-06167

$3.03

12

LOCK WASHER | MODEL J/K/L/M This part replaces 08321-21064.

08321-0106A

$1.84

13

BRACKET, SEAT SUPPORT REAR

45220-19C00

Unavailable

14

SCREW | MODEL J/K/L/M/N This part replaces 02122-06305.

02122-0630B

$2.06

14

SCREW | MODEL P This part replaces 02122-06308.

02122-0630B

$2.06

15

REFER TO FIG.42A(I-15) FOR

SPECIAL NOTE

Unavailable
