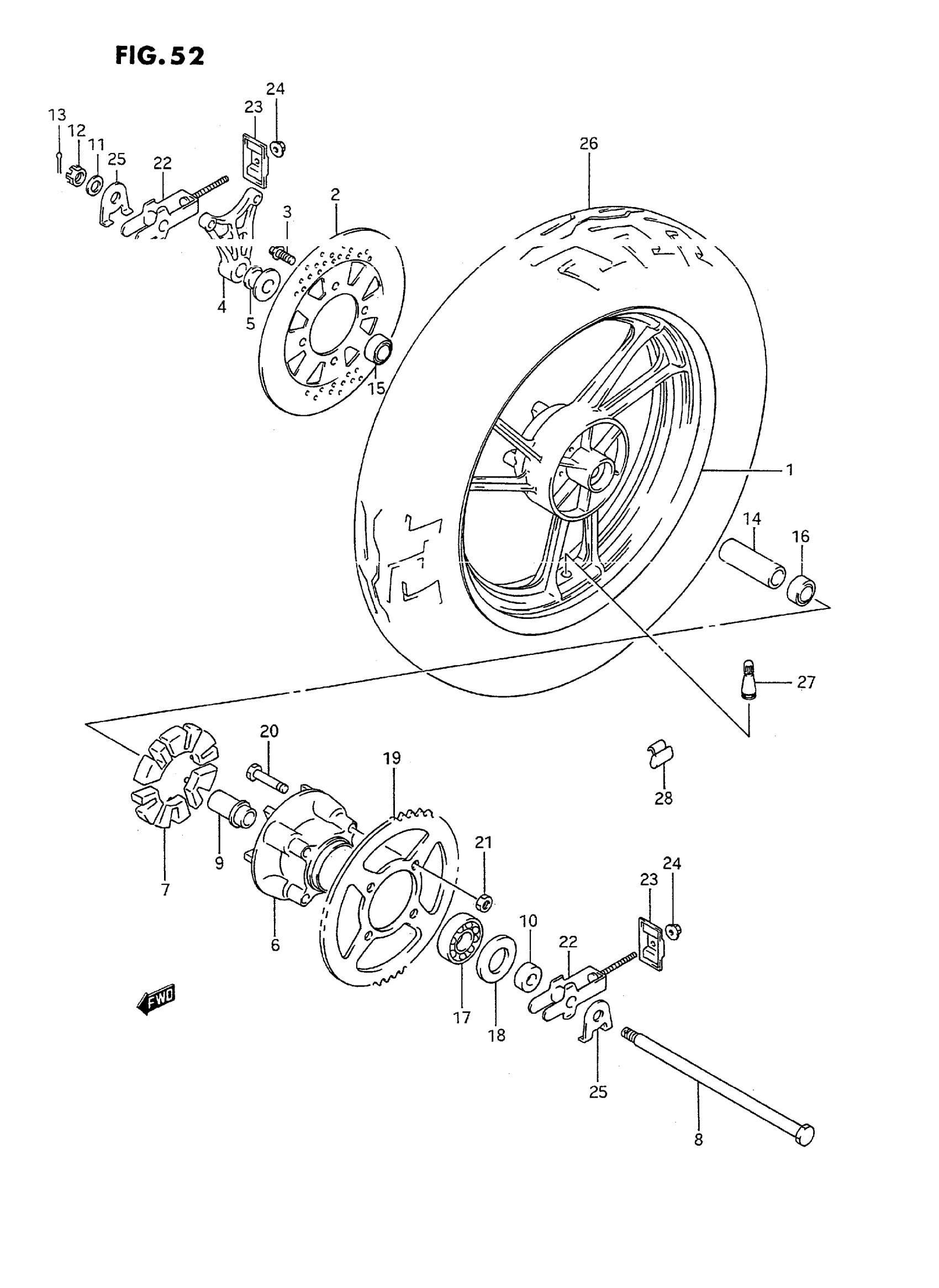

Suzuki GSX600FT (1996) REAR WHEEL (MODEL J) Diagram

WHEEL, REAR (MT3.00X17) WHITE

64111-30B02-28W

Unavailable

DISC, REAR BRAKE

69211-19C00

Unavailable

BOLT This part replaces 07120-08305.

07120-0830A

$3.86

BRACKET, REAR CALIPERS

69721-43400

Unavailable

SPACER, RH

64740-19C00

$22.22

DRUM, SPROCKET | ->64611-19C02W/64651-19C00 6PCSW/64541-19C00 4PCS This part replaces 64611-19C00.

64611-19C02

Unavailable

DRUM, SPROCKET

64611-19C02

Unavailable

SHOCK ABSORBER, DRUM | FOR 64611-19C00

64651-04A00

Unavailable

SHOCK ABSORBER, DRUM | FOR 64611-19C02

64651-19C00

Unavailable

NO DESCRIPTION AVAILABLE This part replaces 64711-19C00.

64711-19C0V

Unavailable

RETAINER, DRUM

64733-19C00

Unavailable

SPACER, LH

64751-19C00

$15.42

WASHER (17X30X3.2) This part replaces 09160-17013.

09160-17050

$2.45

NUT, HUB This part replaces 08314-41168.

08314-4016A

$3.79

PIN, REAR AXLE This part replaces 04111-40308.

04111-4030A

$1.49

SPACER, BEARING

09180-17072

Unavailable

BEARING, RH

08143-63037

$22.58

BEARING, LH

08143-62037

$18.47

BEARING

09262-25073

$25.92

SEAL,OIL (35X62X8)

09285-35001

$10.19

SPROCKET, REAR (NT:46)

64511-19C00

Unavailable

BOLT | FOR 64611-19C00

09119-10043

$4.26

BOLT | FOR 64611-19C02

64541-19C00

Unavailable

NUT

08319-31107

$2.73

ADJUSTER, CHAIN

61410-19C01

Unavailable

PLATE

61421-19C00

Unavailable

NUT

08319-31087

$2.32

WASHER, CHAIN ADJUSTER This part replaces 64712-19C00.

64712-19C01

$8.05

TIRE, T/L REAR (140/80 V17) | DUNLOP This part replaces 65100-19C00.

65110-19C10

Unavailable

VALVE ASSY, WHEEL RIM This part replaces 43130-75150.

43130-78030

$9.25

BALANCER (10G)

55411-00A00

$1.49

BALANCER, WHEEL NO.2 This part replaces 55412-00A00.

55412-17G00

$7.05

BALANCER (30G) This part replaces 55413-00A00.

55413-00A01

Unavailable

REFER TO FIG.52A(K- 6) FOR

SPECIAL NOTE

Unavailable
