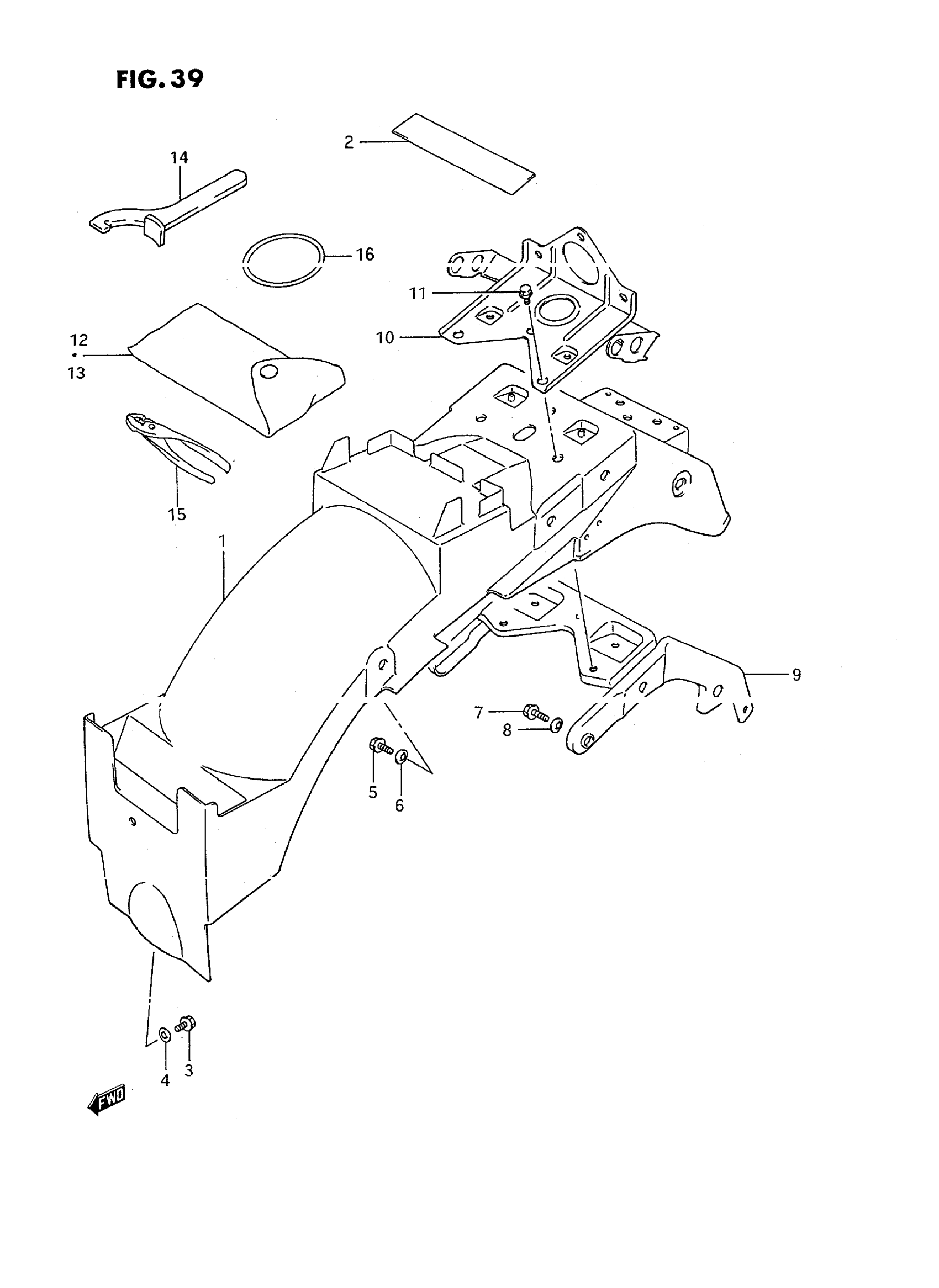

Suzuki GSX600FT (1996) REAR FENDER Diagram

#

Description
Price

1

BODY, REAR FENDER

63111-19C00

Unavailable

2

CUSHION, FENDER

63191-19C00

Unavailable

3

BOLT | MODEL J/K/L/M/N/P This part replaces 01517-06106.

01550-0610A

$1.97

3

BOLT | MODEL R/S/T This part replaces 01550-06103.

01550-0610A

$1.97

4

WASHER

09169-06037

$2.45

5

BOLT | MODEL J/K/L/M/N/P This part replaces 01517-06206.

01550-0620A

$1.97

5

BOLT | MODEL R/S/T This part replaces 01550-06203.

01550-0620A

$1.97

6

WASHER

09169-06037

$2.45

7

BOLT | MODEL J/K/L/M/N/P This part replaces 01517-06206.

01550-0620A

$1.97

7

BOLT | MODEL R/S/T This part replaces 01550-06203.

01550-0620A

$1.97

8

WASHER | MODEL J/K/L/M/N/P/R

09169-06056

Unavailable

8

WASHER | MODEL S/T

09169-06042

Unavailable

9

REINFORCEMENT, REAR FENDER

63120-19C00

Unavailable

10

BRACKET, LAMP

63460-19C01

Unavailable

11

BOLT, CLAMP | MODEL J/K/L/M/N/P This part replaces 01517-06126.

01550-0612A

$1.97

11

BOLT, CLAMP | MODEL R/S/T This part replaces 01550-06123.

01550-0612A

$1.97

12

TOOL ASSY | MODEL J This part replaces 09800-20006.

09800-21017

$76.62

12

TOOL ASSY | MODEL K/L/M/N/P This part replaces 09800-20015.

09800-21017

$76.62

13

TOOL ASSY | MODEL R/S

09800-21017

$76.62

13

TOOL ASSY | MODEL T

09800-21009

Unavailable

14

CLAMP, WRENCH | MODEL R/S/T

09822-00005

$15.16

15

SPANNER | MODEL T

09816-00102

$3.30

16

O RING(D:3.5,ID This part replaces 09280-61002.

09280-61004

$2.60

17

MANUAL, OWNER'S | MODEL J

99011-19C50-28B

Unavailable

17

MANUAL, OWNER'S | MODEL K

99011-19C51-28B

Unavailable

17

MANUAL, OWNER'S | MODEL L

99011-19C52-028

Unavailable

17

MANUAL, OWNER'S | MODEL M

99011-19C53-028

Unavailable

17

MANUAL, OWNER'S | MODEL N

99011-19C54-028

Unavailable

17

MANUAL, OWNER'S | MODEL P

99011-19C55-028

Unavailable

17

MANUAL, OWNER'S | MODEL R

99011-19C56-028

Unavailable

17

MANUAL, OWNER'S | MODEL S

99011-20C56-DGS

Unavailable

17

MANUAL, OWNER'S | MODEL TDRAWING NOT SHOWN

99011-20C57-DGS

Unavailable
