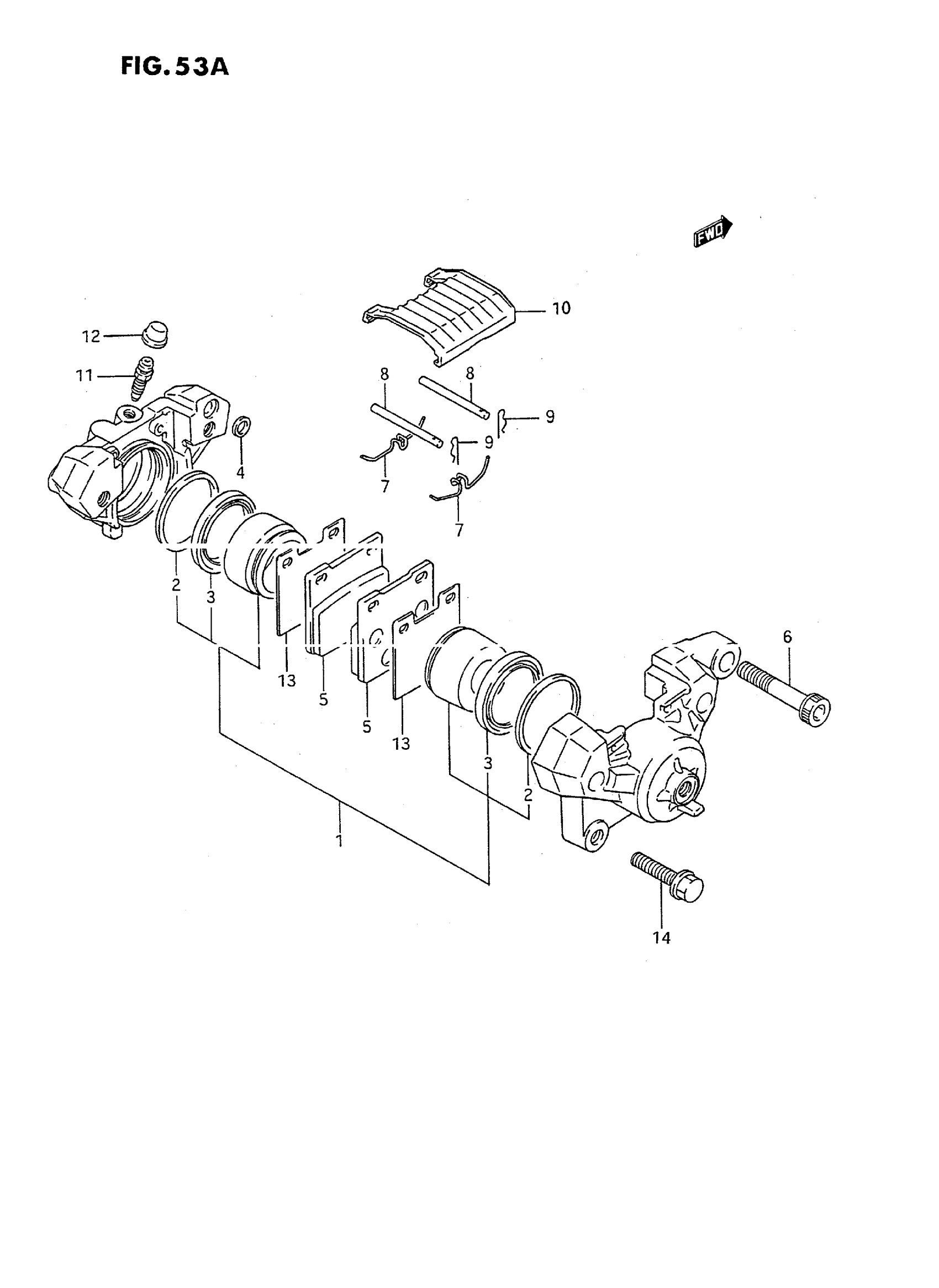

Suzuki GSX600FT (1996) REAR CALIPER (MODEL K/L/M/N) Diagram

#

Description
Price

CALIPER ASSY,RE | MODEL K->69100-34C01 This part replaces 69100-34C00.

69100-34C04

Unavailable

CALIPER ASSY,RE | MODEL L/M/N->69100-34C02 This part replaces 69100-34C01.

69100-34C04

Unavailable

CALIPER ASSY,RE | ->69100-34C03; Includes Item(s) 1 - 13 This part replaces 69100-34C02.

69100-34C04

Unavailable

1

PISTON SET | MODEL K/L/M/N This part replaces 69100-27820.

69100-27821

$77.35

1

PISTON SET | MODEL NFOR 69100-34C02

69100-17830

Unavailable

2

SEAL,PISTON This part replaces 59107-18410.

69107-05CF0

$9.07

3

BOOT

59108-16700

$9.40

4

SEAL

69107-34200

$10.71

5

PAD SET | ->69100-34860 This part replaces 69130-34C00.

69100-34860

Unavailable

6

BOLT | MODEL K This part replaces 69145-16700.

59145-05C50

$7.97

6

BOLT (HEXAGON FLANGE) | MODEL L/M/N

59145-17C00

Unavailable

7

SPRING

59143-16700

$5.80

8

PIN

69141-45000

$5.17

9

.CLIP, PAD PIN

69142-45000

$4.34

10

COVER

59151-16701

$13.36

11

BLEEDER

59121-18410

$8.73

12

CAP, BLEEDER This part replaces 59122-18410.

55156-66310

$5.17

13

SHIM

59371-33410

$12.57

14

BOLT This part replaces 01517-08304.

01550-0830A

$3.04

15

REFER TO FIG.53B(K-10) FOR

SPECIAL NOTE

Unavailable
