Description

Price

CALIPER ASSY, REAR | Includes Item(s) 1 - 13 This part replaces 69100-19C00.

69100-01D04-999

$292.98

1

PISTON SET This part replaces 69100-27820.

69100-27821

$77.35

2

SEAL,PISTON This part replaces 59107-18410.

69107-05CF0

$9.07

3

BOOT

59108-16700

$9.40

4

SEAL

69107-34200

$10.71

5

PAD SET | ->69100-20810 This part replaces 69130-20A10.

69100-20810

$49.55

6

BOLT This part replaces 69145-16700.

59145-05C50

$7.97

7

SPRING

59143-16700

$5.80

8

PIN

69141-45000

$5.17

9

.CLIP, PAD PIN

69142-45000

$4.34

10

COVER

59151-16701

$13.36

11

BLEEDER

59121-18410

$8.73

12

CAP, BLEEDER This part replaces 59122-18410.

55156-66310

$5.17

13

SHIM

59371-33420

$15.13

14

BOLT This part replaces 01517-08304.

01550-0830A

$3.04

15

REFER TO FIG.53A(K- 9) FOR

SPECIAL NOTE

Unavailable

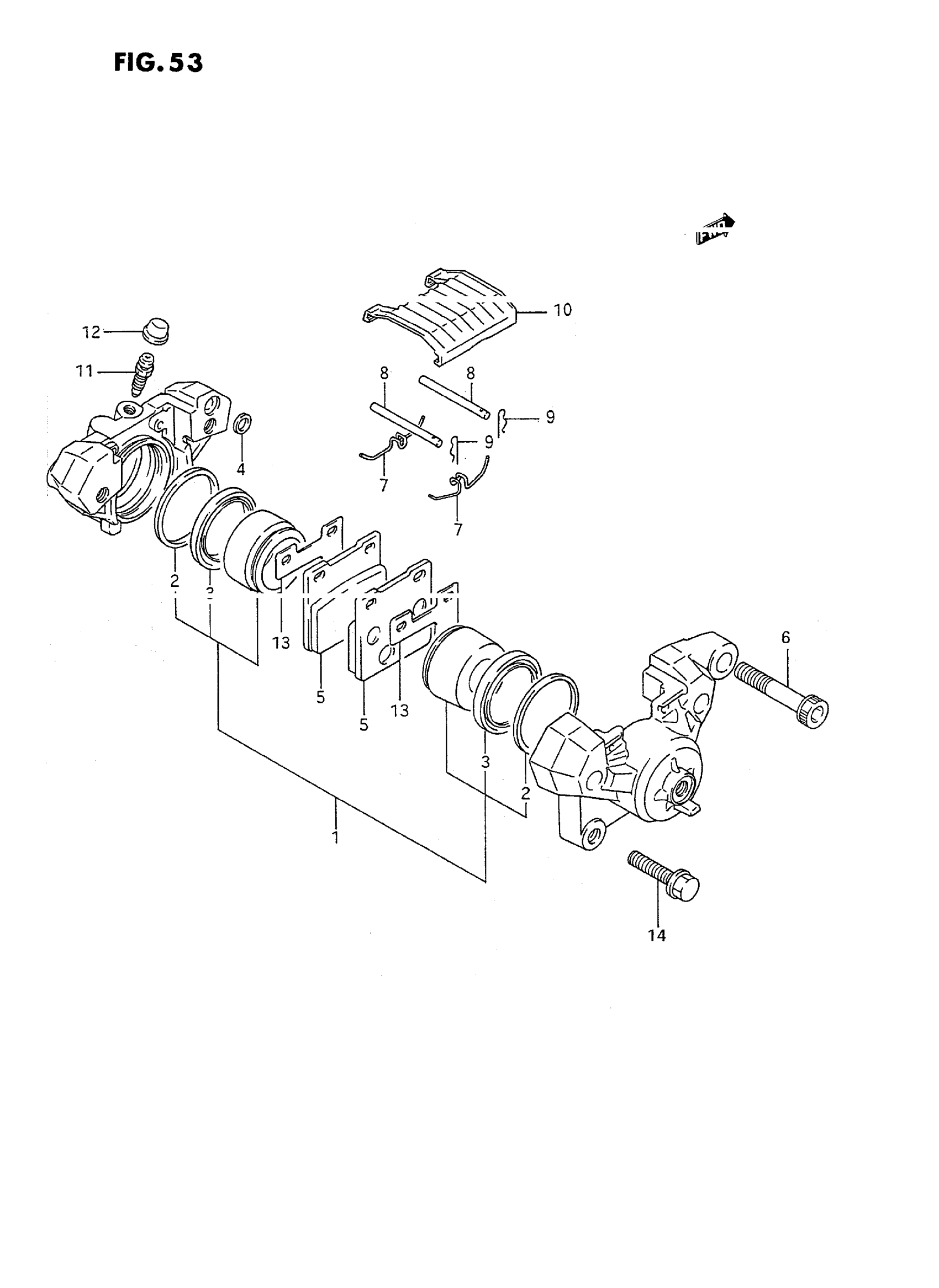

Suzuki GSX600FT (1996) REAR CALIPER (MODEL J) Diagram
