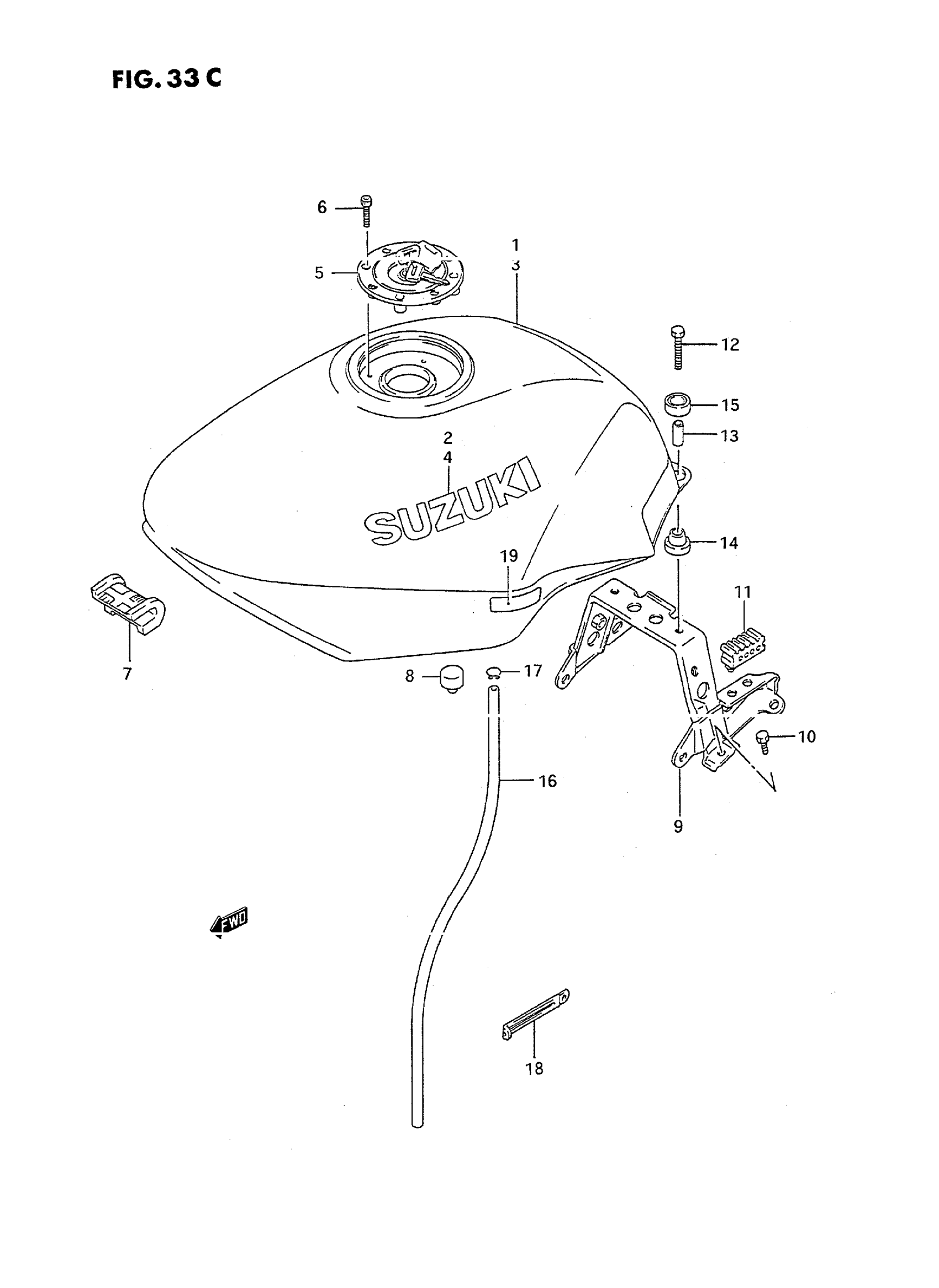

Suzuki GSX600FT (1996) FUEL TANK (MODEL P/R/S/T) Diagram

#

Description
Price

1

TANK ASSY,FUEL | MODEL P This part replaces 44100-43C30-1MW.

44100-43C31-1MW

Unavailable

1

NO DESCRIPTION AVAILABLE | MODEL P; Includes Item(s) 2 - 2 This part replaces 44100-43C30-36X.

44100-43C31-36X

Unavailable

2

EMBLEM | MODEL P FOR 1MW This part replaces 68111-12C00-13L.

68111-12C30-13L

Unavailable

2

EMBLEM (PURPLE) | MODEL P FOR 36X

68111-12C00-1AP

Unavailable

3

NO DESCRIPTION AVAILABLE | MODEL R This part replaces 44100-21CE0-1TY.

44100-21CF1-1TY

Unavailable

3

NO DESCRIPTION AVAILABLE | MODEL R This part replaces 44100-21CE0-2AX.

44100-21CF1-2AX

Unavailable

3

TANK ASSY,FUEL | MODEL S This part replaces 44100-21CF0-1ZV.

44100-21CF1-1ZV

Unavailable

3

NO DESCRIPTION AVAILABLE | MODEL S FOR D4A This part replaces 44100-21CF0-Y22.

44110-19C22-YD8

Unavailable

3

NO DESCRIPTION AVAILABLE | MODEL T This part replaces 44100-21CE0-1NX.

44100-21CE1-1NX

Unavailable

3

NO DESCRIPTION AVAILABLE | MODEL T; Includes Item(s) 4 - 4 This part replaces 44100-21CE0-3CX.

44100-21CE1-3CX

Unavailable

4

EMBLEM | MODEL R FOR 1TY

68111-01D20-C2Y

Unavailable

4

EMBLEM | MODEL R FOR 33J

68111-01D20-C2Z

Unavailable

4

EMBLEM | MODEL S FOR 1ZV

68111-01D20-D5B

Unavailable

4

EMBLEM | MODEL S FOR 2XX

68111-01D20-D5A

Unavailable

4

EMBLEM | MODEL T

68111-01D20-F2U

Unavailable

5

CAP SET,FUEL TA | MODEL P/R This part replaces 44201-01831.

44201-01833

Unavailable

5

CAP SET,FUEL TA | MODEL S/T This part replaces 44201-01832.

44201-01833

Unavailable

6

BOLT

09106-05017

$2.83

7

CUSHION, FUEL TANK FRONT

44511-19C00

Unavailable

8

CUSHION, FUEL TANK SIDE

09321-10011

$2.91

9

BRACKET, REAR

44550-19C00

Unavailable

10

BOLT This part replaces 09137-06017.

01570-0620A

$2.19

11

CUSHION

45149-31300

$3.56

12

BOLT (6X30) | MODEL P/R This part replaces 09116-06153.

09116-06172

$2.50

12

BOLT, REAR | MODEL S/T

09116-06172

$2.50

13

SPACER This part replaces 09180-06072.

09180-06271

$2.35

14

CUSHION, REAR LOWER

09320-10038

$2.61

15

CUSHION, REAR UPPER

09320-14017

$2.35

16

HOSE, WATER DRAIN

44423-19C00

Unavailable

17

CLIP

09401-08401

$1.54

18

CLAMP

09404-08420

$3.16

19

PROTECTOR, RH | MODEL P

44283-19C00

Unavailable

19

PROTECTOR, LH | MODEL P

44293-19C00

Unavailable

19

PROTECTOR | MODEL R/S/T

32851-10D00

$5.05

20

COLOR : D4A = 33J(BLACK),

SPECIAL NOTE

Unavailable
