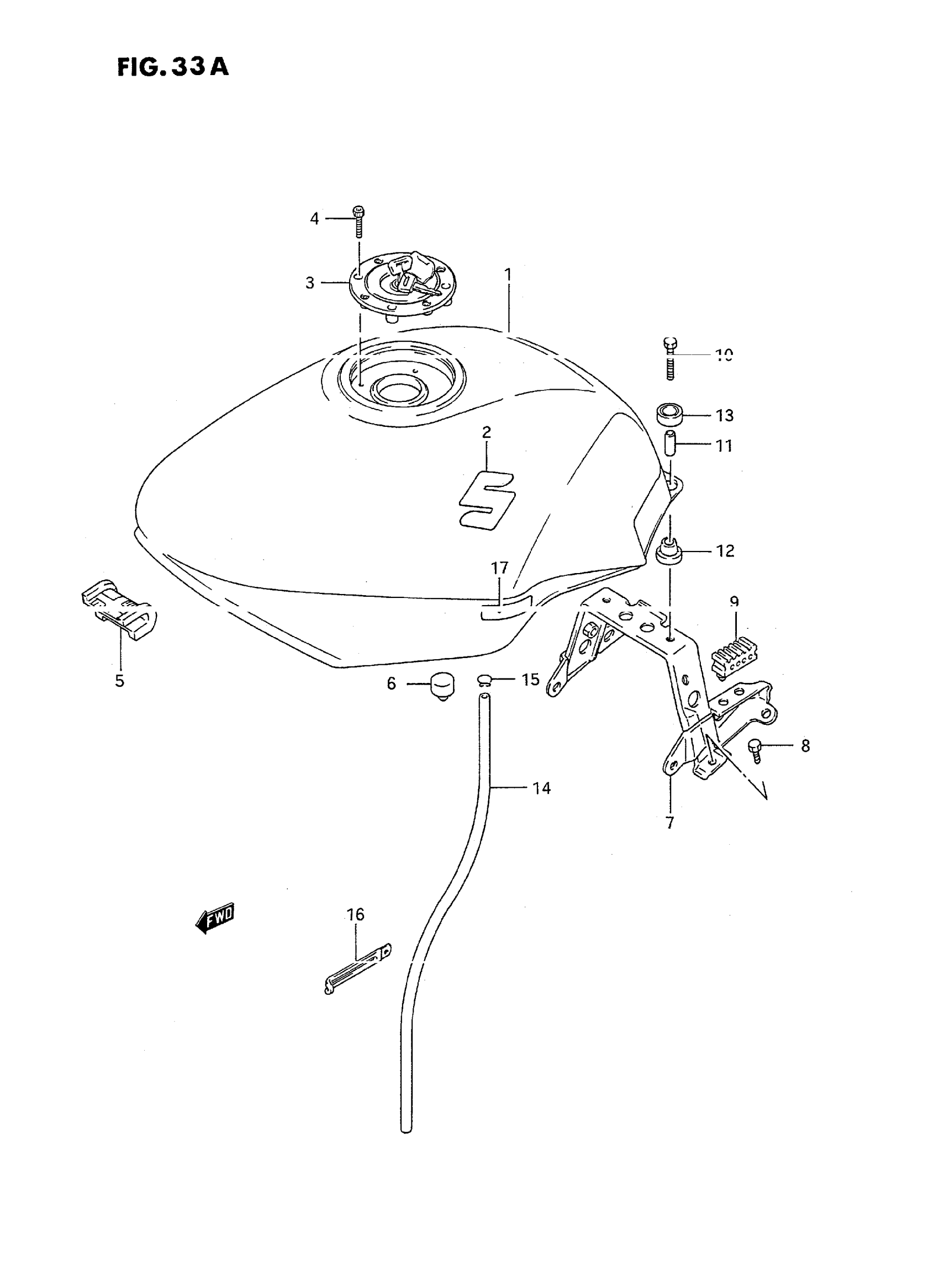

Suzuki GSX600FT (1996) FUEL TANK (MODEL M) Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE This part replaces 44100-43C50-28V.

44110-19C22-YD8

Unavailable

1

NO DESCRIPTION AVAILABLE | Includes Item(s) 2 This part replaces 44100-43C50-33J.

44100-43C51-33J

Unavailable

2

EMBLEM (GRAY)

68111-19C10-17U

Unavailable

3

CAP SET,FUEL TA This part replaces 44201-01831.

44201-01833

Unavailable

4

BOLT

09106-05017

$2.83

5

CUSHION, FUEL TANK FRONT

44511-19C00

Unavailable

6

CUSHION, FUEL TANK SIDE

09321-10011

$2.91

7

BRACKET, REAR

44550-19C00

Unavailable

8

BOLT This part replaces 09137-06017.

01570-0620A

$2.19

9

CUSHION

45149-31300

$3.56

10

BOLT (6X30) This part replaces 09116-06078.

09116-06172

$2.50

11

SPACER This part replaces 09180-06072.

09180-06271

$2.35

12

CUSHION, REAR LOWER

09320-10038

$2.61

13

CUSHION, REAR UPPER

09320-14017

$2.35

14

HOSE, WATER DRAIN

44423-19C00

Unavailable

15

CLIP

09401-08402

$1.49

16

CLAMP

09404-08420

$3.16

17

PROTECTOR, RH

44283-19C00

Unavailable

17

PROTECTOR, LH

44293-19C00

Unavailable

18

REFER TO FIG.33B(F- 9) FOR

SPECIAL NOTE

Unavailable
