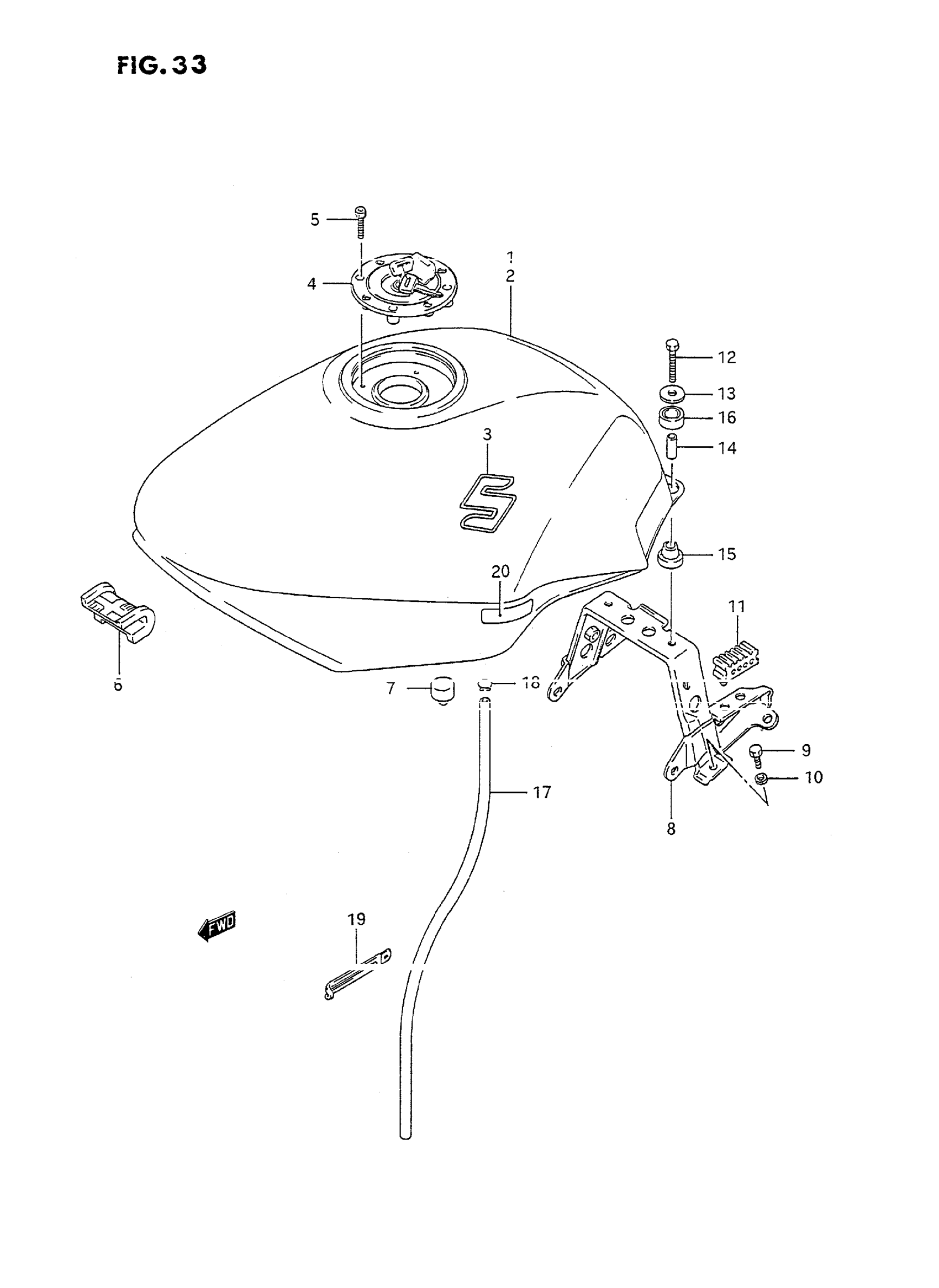

Suzuki GSX600FT (1996) FUEL TANK (MODEL J/K/L) Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | MODEL J This part replaces 44110-19C00-07P.

44110-19C22-YD8

Unavailable

1

NO DESCRIPTION AVAILABLE | MODEL J This part replaces 44110-19C00-38K.

44110-19C22-YD8

Unavailable

2

NO DESCRIPTION AVAILABLE | MODEL K/L This part replaces 44100-19C30-28V.

44110-19C22-YD8

Unavailable

2

TANK ASSY, FUEL (BLUE) | MODEL K

44100-19C30-31X

Unavailable

2

NO DESCRIPTION AVAILABLE | MODEL L; Includes Item(s) 3 - 3 This part replaces 44100-19C30-33J.

44100-19C31-33J

Unavailable

3

EMBLEM (BLACK) | MODEL K/L FOR 28V

68111-19C00-019

Unavailable

3

EMBLEM (GOLD) | MODEL K FOR 31X

68111-19C00-764

Unavailable

3

EMBLEM (RED) | MODEL L FOR 33J

68111-19C00-22P

Unavailable

4

CAP SET,FUEL TA | MODEL J/K This part replaces 44200-19C00-KEY.

44201-01833

Unavailable

4

CAP SET,FUEL TA | MODEL L This part replaces 44201-01831.

44201-01833

Unavailable

5

BOLT

09106-05017

$2.83

6

CUSHION, FUEL TANK FRONT

44511-19C00

Unavailable

7

CUSHION, FUEL TANK SIDE

09321-10011

$2.91

8

BRACKET, REAR

44550-19C00

Unavailable

9

BOLT | MODEL J/K This part replaces 09128-06006.

09128-06057

$1.65

9

BOLT | MODEL L This part replaces 09137-06017.

01570-0620A

$2.19

10

LOCK WASHER | MODEL J/K This part replaces 08321-01063.

08321-0106A

$1.84

11

CUSHION

45149-31300

$3.56

12

BOLT | MODEL J This part replaces 01500-06303.

01500-0630A

$2.19

12

BOLT (6X30) | MODEL K/L This part replaces 09116-06078.

09116-06172

$2.50

13

WASHER, 6.5X24X1.6 | MODEL J This part replaces 09160-06072.

09160-06501

$1.86

14

SPACER This part replaces 09180-06072.

09180-06271

$2.35

15

CUSHION, REAR LOWER

09320-10038

$2.61

16

CUSHION, REAR UPPER

09320-14017

$2.35

17

HOSE, WATER DRAIN

44423-19C00

Unavailable

18

CLIP

09401-08402

$1.49

19

CLAMP

09404-08420

$3.16

20

PROTECTOR, RH

44283-19C00

Unavailable

20

PROTECTOR, LH

44293-19C00

Unavailable

21

REFER TO FIG.33A(F- 8) FOR

SPECIAL NOTE

Unavailable
