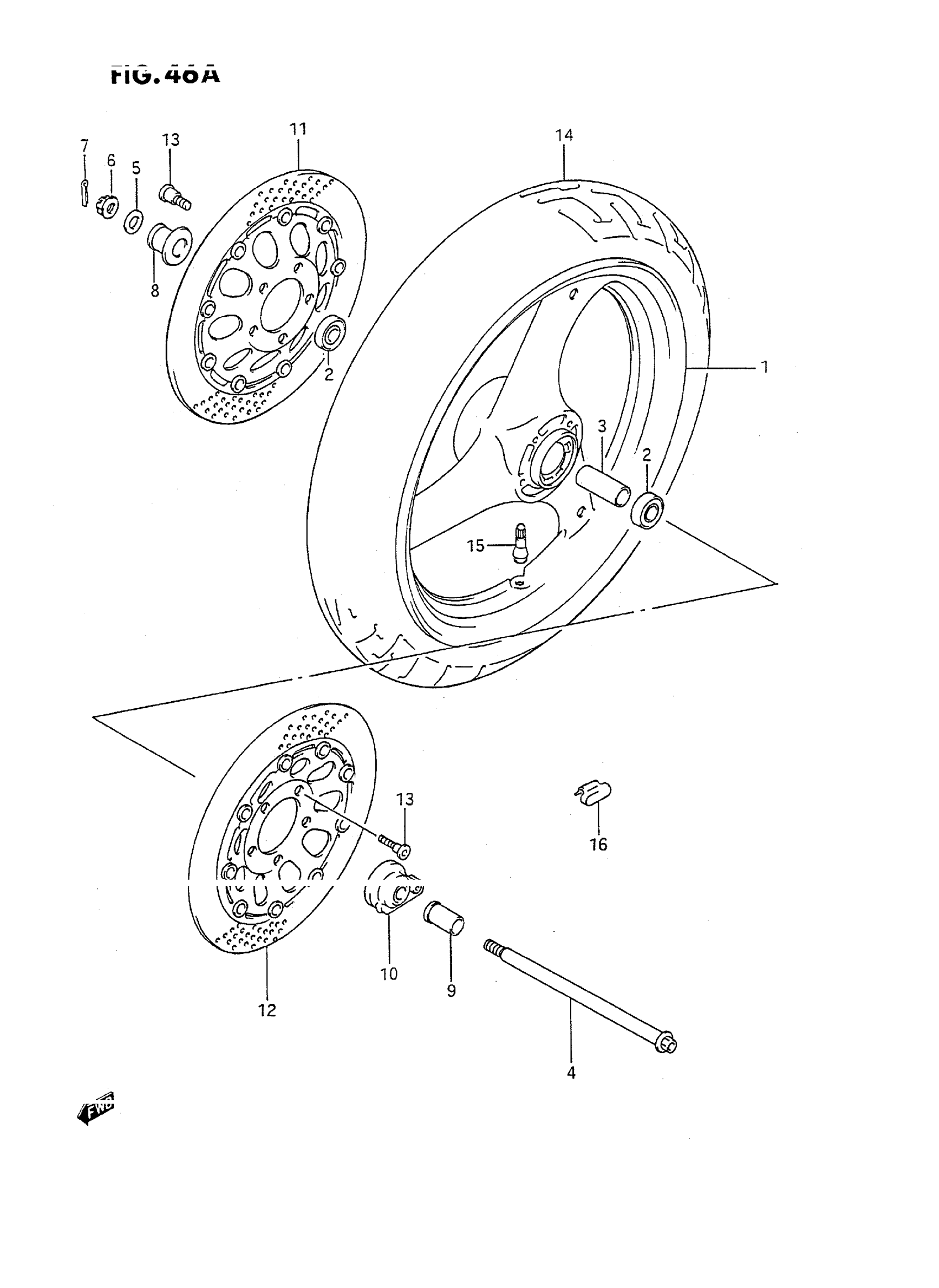

Suzuki GSX600FT (1996) FRONT WHEEL (MODEL K/L/M/N/P/R/S/T) Diagram

#

Description
Price

1

WHEEL, FRONT (MT3.00X17) GOLD | MODEL K/L

54111-34C00-0FR

Unavailable

1

NO DESCRIPTION AVAILABLE | MODEL MMODEL T FOR 1ZV This part replaces 54111-34C00-12R.

54111-34C01-12R

Unavailable

1

WHEEL,FR,17M/CX | MODEL N,FOR 33JMODEL P,FOR 36XMODEL R,FOR 1TY This part replaces 54111-34C00-1DR.

54111-34C01-1DR

Unavailable

1

WHEEL, FRONT (MT3.00X17) | MODEL N,FOR 19A

54111-34C00-1LS

Unavailable

1

NO DESCRIPTION AVAILABLE | MODEL P,FOR 1MW This part replaces 54111-34C00-12Z.

54111-34C01-12R

Unavailable

1

WHEEL,FR,17M/CX | MODEL R,FOR 33JMODEL T FOR 33J This part replaces 54111-34C00-1TU.

54111-34C01-1TU

Unavailable

1

WHEEL, FRONT (MT3.00X17) | MODEL S FOR 1ZV

54111-34C00-34R

Unavailable

1

WHEEL, FRONT (MT3.00X17) | MODEL S FOR D4A

54111-34C00-Y22

Unavailable

2

BEARING This part replaces 08123-63027.

08123-6302B

$22.74

3

SPACER

09180-15011

$8.18

4

AXLE, FRONT

54711-19C00

Unavailable

5

WASHER | MODEL K/L/M/N/P This part replaces 08322-21128.

08322-01127

$1.84

5

WASHER | MODEL R/S/T

08322-01127

$1.84

6

NUT

09159-12027

$15.67

7

PIN This part replaces 04111-30308.

04111-3030A

$1.49

8

SPACER, BEARING RH

54740-33410

$19.15

9

SPACER, AXLE LH

54741-19C00

Unavailable

10

BOX ASSY,SPEEDO This part replaces 54600-30B02.

54600-30B0V

Unavailable

11

DISC, FRONT BRAKE RH | MODEL K This part replaces 59210-32C01.

59210-32C31

Unavailable

11

DISC, FRONT BRAKE RH | MODEL L/M/N/P/R/S/T

59210-32C31

Unavailable

12

DISC, FRONT BRAKE LH | MODEL K This part replaces 59220-32C01.

59220-32C31

Unavailable

12

DISC, FRONT BRAKE LH | MODEL L/M/N/P/R/S/T

59220-32C31

Unavailable

13

BOLT (8X33) | MODEL K/L/M/N/P This part replaces 09106-08082.

09106-08148

$4.80

13

BOLT (8X33) | MODEL R/S/T This part replaces 09106-08125.

09106-08148

$4.80

14

TIRE, T/L FRONT (110/80 V17) | MODEL K/L/M/N/P/R/S/T

55110-19C10

Unavailable

14

TIRE, T/L FRONT (110/80 V17) (DUNLOP) | MODEL S/TPURCHASE LOCALLY This part replaces 55110-19C20.

55110-19C10

Unavailable

15

VALVE ASSY, WHEEL RIM | MODEL K/L/M->43130-78030 This part replaces 43130-75150.

43130-78030

$9.25

15

VALVE ASSY, WHEEL RIM

43130-78030

$9.25

15

VALVE ASSY, WHEEL RIM | MODEL N/P/R/S/T->43130-24A11

43130-24A00

$8.85

15

VALVE ASSY, WHEEL RIM (TR412) This part replaces 43130-24A11.

43130-24A00

$8.85

16

BALANCER (10G)

55411-00A00

$1.49

16

BALANCER, WHEEL NO.2 This part replaces 55412-00A01.

55412-17G00

$7.05

16

BALANCER (30G)

55413-00A01

Unavailable
