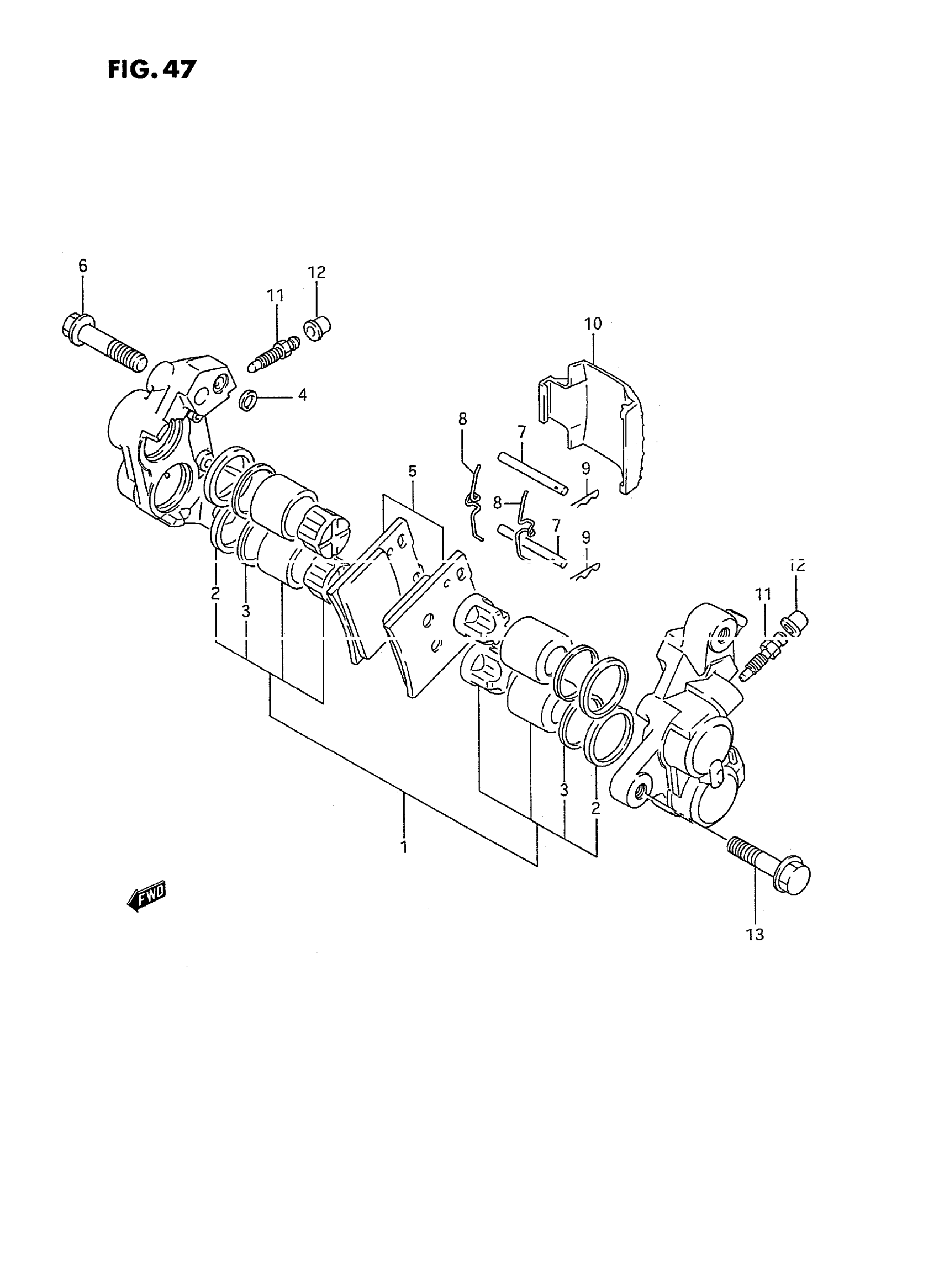

Suzuki GSX600FT (1996) FRONT CALIPERS Diagram

#

Description
Price

NO DESCRIPTION AVAILABLE | MODEL J This part replaces 59100-19C00.

59100-34C02-999

Unavailable

CALIPER ASSY,FR | MODEL J This part replaces 59300-19C00.

59300-34C02-999

Unavailable

NO DESCRIPTION AVAILABLE | MODEL K/L This part replaces 59100-34C00.

59100-34C02-999

Unavailable

CALIPER ASSY,FR | MODEL K/L This part replaces 59300-34C00.

59300-34C02-999

Unavailable

NO DESCRIPTION AVAILABLE | MODEL M/N This part replaces 59100-34C01.

59100-34C02-999

Unavailable

CALIPER ASSY,FR | MODEL M/N This part replaces 59300-34C01.

59300-34C02-999

Unavailable

NO DESCRIPTION AVAILABLE | MODEL P/R/S/T This part replaces 59100-34C02.

59100-34C02-999

Unavailable

CALIPER ASSY,FR | MODEL P/R/S/T; Includes Item(s) 1 - 12 This part replaces 59300-34C02.

59300-34C02-999

Unavailable

1

PISTON SET | MODEL J/K/L This part replaces 59100-19840.

59100-19842

Unavailable

1

PISTON SET | MODEL M/N/P/R/S/T This part replaces 59100-19841.

59100-19842

Unavailable

2

SEAL,PISTON This part replaces 59107-04A00.

59107-40F00

$10.95

3

SEAL, WIPER

59108-04A00

$10.77

4

SEAL

69107-34200

$10.71

5

PAD SET | <-59130-19C00

59100-19820

Unavailable

6

BOLT

59145-16700

$8.83

7

PIN

69141-45000

$5.17

8

SPRING

69143-45001

$6.73

9

.CLIP, PAD PIN

69142-45000

$4.34

10

COVER

59151-04A01

$38.31

11

BLEEDER

59121-18410

$8.73

12

CAP

55156-66310

$5.17

13

BOLT (8X35) | MODEL J/K/L/M/N/P This part replaces 01517-08355.

01550-0835A

$3.04

13

BOLT (8X35) | MODEL R/S/T This part replaces 01550-08353.

01550-0835A

$3.04
