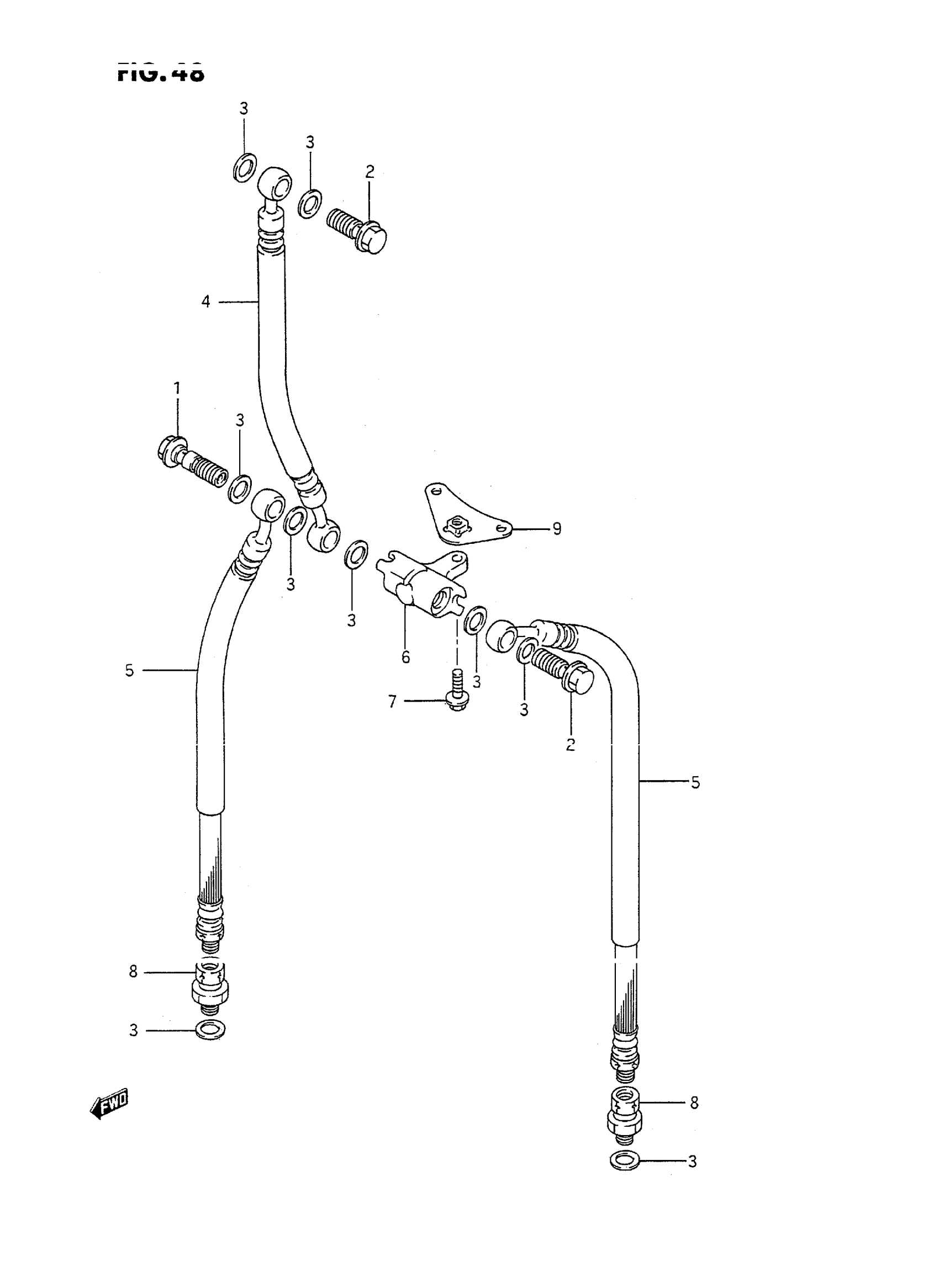

Suzuki GSX600FT (1996) FRONT BRAKE HOSE Diagram

#

Description
Price

1

BOLT (10X1.00X36)

09360-10018

$6.80

2

BOLT (10X1.00X24) | MODEL J/K/L/M/N/P

09360-10017

$3.42

2

UNION | MODEL R/S/T This part replaces 09360-10039.

09360-10061

$6.43

3

WASHER (10X15X1.5)

09161-10009

$1.84

4

HOSE, FRONT BRAKE NO.1 | MODEL J/K This part replaces 59480-19C00.

59480-19C10

Unavailable

4

HOSE, FRONT BRAKE NO.1 | MODEL L/M/N/P/R/S/T

59480-19C10

Unavailable

5

HOSE | MODEL J/K This part replaces 59240-19C00.

59240-19C11

Unavailable

5

HOSE | MODEL L/M/N/P/R/S/T This part replaces 59240-19C10.

59240-19C11

Unavailable

6

JOINT, BRAKE HOSE | MODEL J/K/L/M/N This part replaces 59491-45000.

59491-45001

Unavailable

6

JOINT, BRAKE HOSE | MODEL P/R/S/T

59491-45001

Unavailable

7

BOLT | MODEL J/K/L/M/N/P This part replaces 01517-06207.

01550-06207

$2.30

7

BOLT | MODEL R/S/T This part replaces 01550-06203.

01550-0620A

$1.97

8

ADAPTOR, BRAKE HOSE

59290-43500

$36.17

9

PLATE, JOINT

59390-19C00

Unavailable
