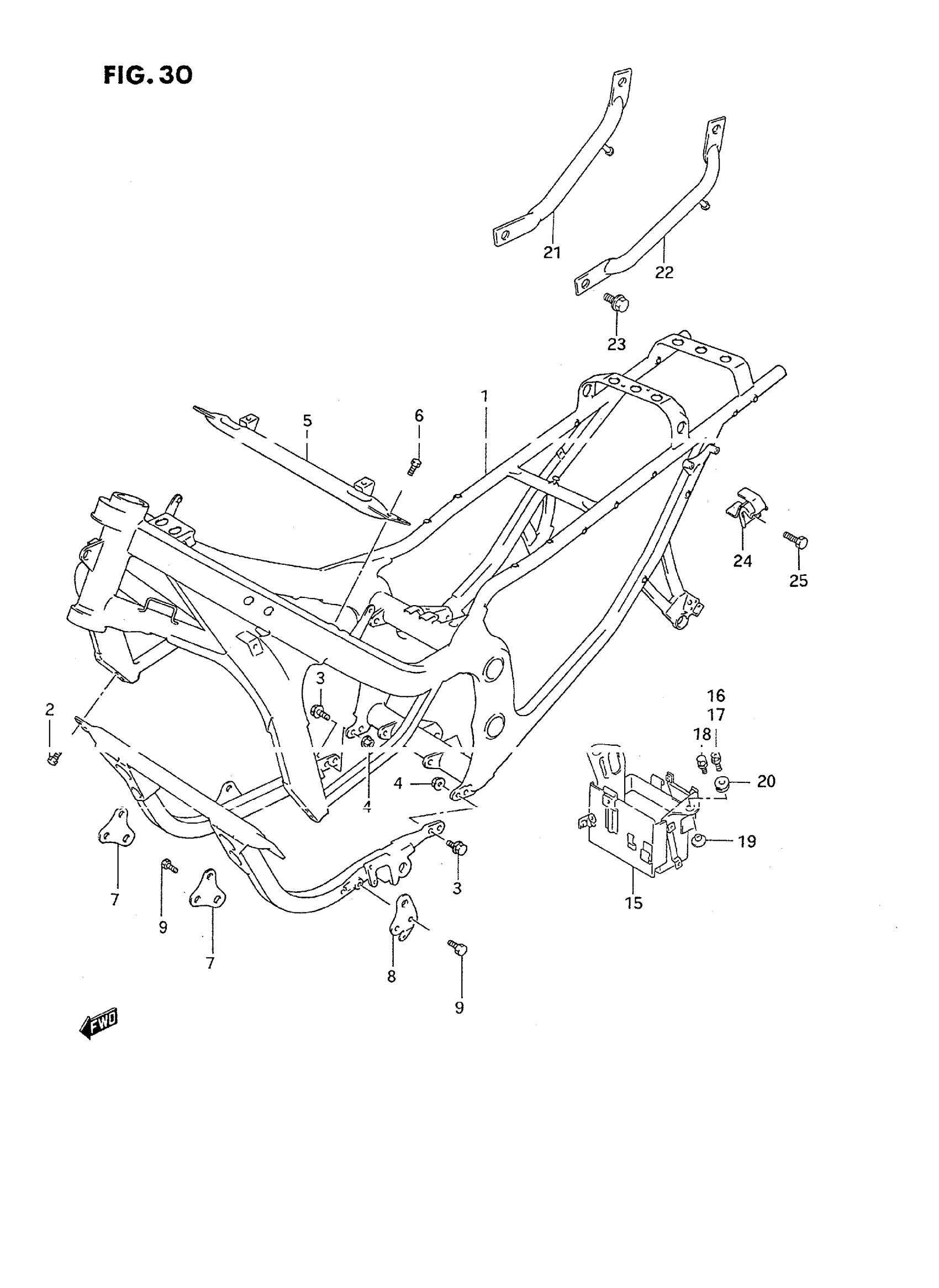

Suzuki GSX600FT (1996) FRAME (MODEL J/K/L/M/N/P) Diagram

#

Description
Price

1

FRAME SET (BLACK) | MODEL J This part replaces 41100-19880-019.

41101-19830-019

Unavailable

1

FRAME SET (BLACK) | MODEL K/L/M/N/P; Includes Item(s) 2 - 7 This part replaces 41100-19881-291.

41101-19830-291

Unavailable

2

TUBE, FRAME DOWN (BLACK) | MODEL J

41140-19C00-019

Unavailable

2

TUBE, FRAME DOWN (BLACK) | MODEL K/L/M/N

41140-19C00-291

Unavailable

3

BOLT | MODEL J This part replaces 01107-08205.

01500-0820A

$2.28

3

BOLT, BRACE | MODEL K This part replaces 01137-08205.

01570-0820A

$3.15

3

BOLT, UPPER | MODEL L/M/N/P

01500-08257

$2.50

4

LOCK WASHER | MODEL J This part replaces 08321-21084.

08321-0108A

$1.84

4

.LOCK WASHER | MODEL L/M/N/P

08321-01087

$2.13

5

BOLT This part replaces 01517-08254.

01550-0825A

$2.32

6

BOLT This part replaces 01517-08304.

01550-0830A

$3.04

7

NUT This part replaces 08319-31085.

08319-3108A

$2.32

8

TUBE, FRAME BRIGE | MODEL J/K This part replaces 41750-19C00.

41750-34C00

Unavailable

8

TUBE, FRAME BRIGE | MODEL L/M/N/P

41750-34C00

Unavailable

9

PLUG, DRAIN | MODEL J This part replaces 01107-08165.

01500-0816B

$2.50

9

BOLT | MODEL K This part replaces 01137-08165.

01570-0816A

$3.03

9

BOLT | MODEL L/M

01570-08167

$3.85

9

BOLT | MODEL N/P

09103-08266

$2.71

10

LOCK WASHER | MODEL J This part replaces 08321-21084.

08321-0108A

$1.84

11

PLATE, NO.1 (BLACK) | MODEL J

41911-19C00-019

Unavailable

11

PLATE, NO.1 (BLACK) | MODEL K/L/M/N/P This part replaces 41911-19C00-291.

41911-19C00-019

Unavailable

12

PLATE, NO.2 (BLACK) | MODEL J This part replaces 41940-19C00-019.

41940-20C00-019

Unavailable

12

PLATE, NO.2 (BLACK) | MODEL K/L/M/N/P This part replaces 41940-19C00-291.

41940-20C00-019

Unavailable

13

PLUG, DRAIN | MODEL J This part replaces 01107-08165.

01500-0816B

$2.50

13

BOLT | MODEL K/L This part replaces 01137-08165.

01570-0816A

$3.03

13

BOLT | MODEL L/M/N/P

01570-08167

$3.85

14

LOCK WASHER | MODEL J This part replaces 08321-21084.

08321-0108A

$1.84

15

HOLDER, BATTERY | MODEL J This part replaces 41540-19C00.

41540-19C02

Unavailable

15

HOLDER, BATTERY | MODEL K/L/M/N/P

41540-19C02

Unavailable

16

SCREW | MODEL J

09128-06010

$1.65

17

LOCK WASHER | MODEL J

08321-01067

$2.13

18

BOLT | MODEL K/L/M/N/P This part replaces 09137-06014.

01570-0630A

$3.03

19

SPACER This part replaces 41570-19C00.

09169-06065

$4.32

20

CUSHION (8.5X20X8) This part replaces 09320-08021.

09320-08510

$1.97

21

GRIP, REAR RH | MODEL J/K This part replaces 43970-19C00.

43970-19C02

Unavailable

21

GRIP, REAR RH | MODEL L/M/N/P This part replaces 43970-19C01.

43970-19C02

Unavailable

22

GRIP, REAR LH | MODEL J/K This part replaces 43980-19C00.

43980-19C02

Unavailable

22

GRIP, REAR LH | MODEL L/M/N/P This part replaces 43980-19C01.

43980-19C02

Unavailable

23

BOLT (8X16) This part replaces 01517-08165.

01550-0816A

$2.32

24

HOLDER, HELMET

95720-20C00

Unavailable

25

BOLT This part replaces 01570-06163.

01570-0616A

$2.23

26

REFER TO FIG.30A(F- 4) FOR

SPECIAL NOTE

Unavailable
