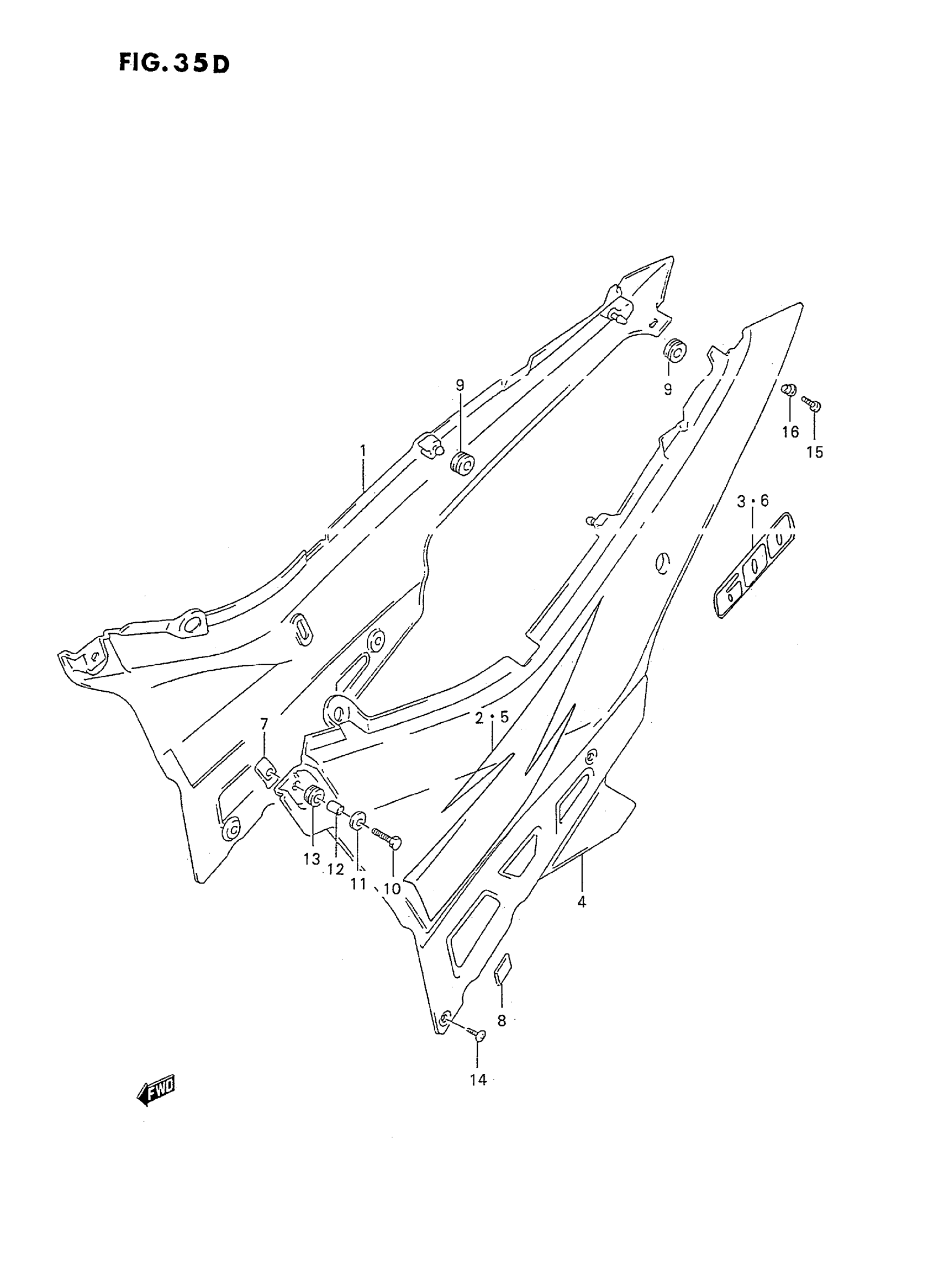

Suzuki GSX600FT (1996) FRAME COVER (MODEL T) Diagram

#

Description
Price

1

COVER, FRAME RH | FOR 33J

47110-43CA0-3DC

Unavailable

1

COVER, FRAME RH | FOR 1ZV; Includes Item(s) 2 - 3

47110-43CA0-D5P

Unavailable

2

TAPE, RH | FOR 3DC

68135-43C20-Z48

Unavailable

2

TAPE, RH | FOR D5P

68135-43C20-Z49

Unavailable

3

EMBLEM, RH

68131-43C20-F2U

Unavailable

4

COVER, FRAME LH | FOR 33J

47210-43CA0-3DC

Unavailable

4

COVER, FRAME LH | FOR 1ZV; Includes Item(s) 5 - 6

47210-43CA0-D5P

Unavailable

5

TAPE, LH | FOR 3DC

68145-43C20-Z48

Unavailable

5

TAPE, LH | FOR D5P

68145-43C20-Z49

Unavailable

6

EMBLEM, LH

68131-43C20-F2U

Unavailable

7

PLATE

47153-19C01

$7.95

8

CUSHION

47161-19C00

$3.03

9

CUSHION, REAR

09320-08018

$3.04

10

SCREW, FRONT

09139-06068

Unavailable

11

WASHER (6.5X18X1.6) This part replaces 09160-06057.

09160-06109

$1.49

12

SPACER (6.5X9X9) This part replaces 09180-06011.

09180-06263

$2.03

13

CUSHION

09320-09016

$1.97

14

SCREW, LOWER

09139-05038

$2.06

15

.SCREW This part replaces 02142-05123.

02142-0512A

$1.49

16

WASHER

09169-05009

$2.47

17

COLOR : 3DC =

SPECIAL NOTE

Unavailable
