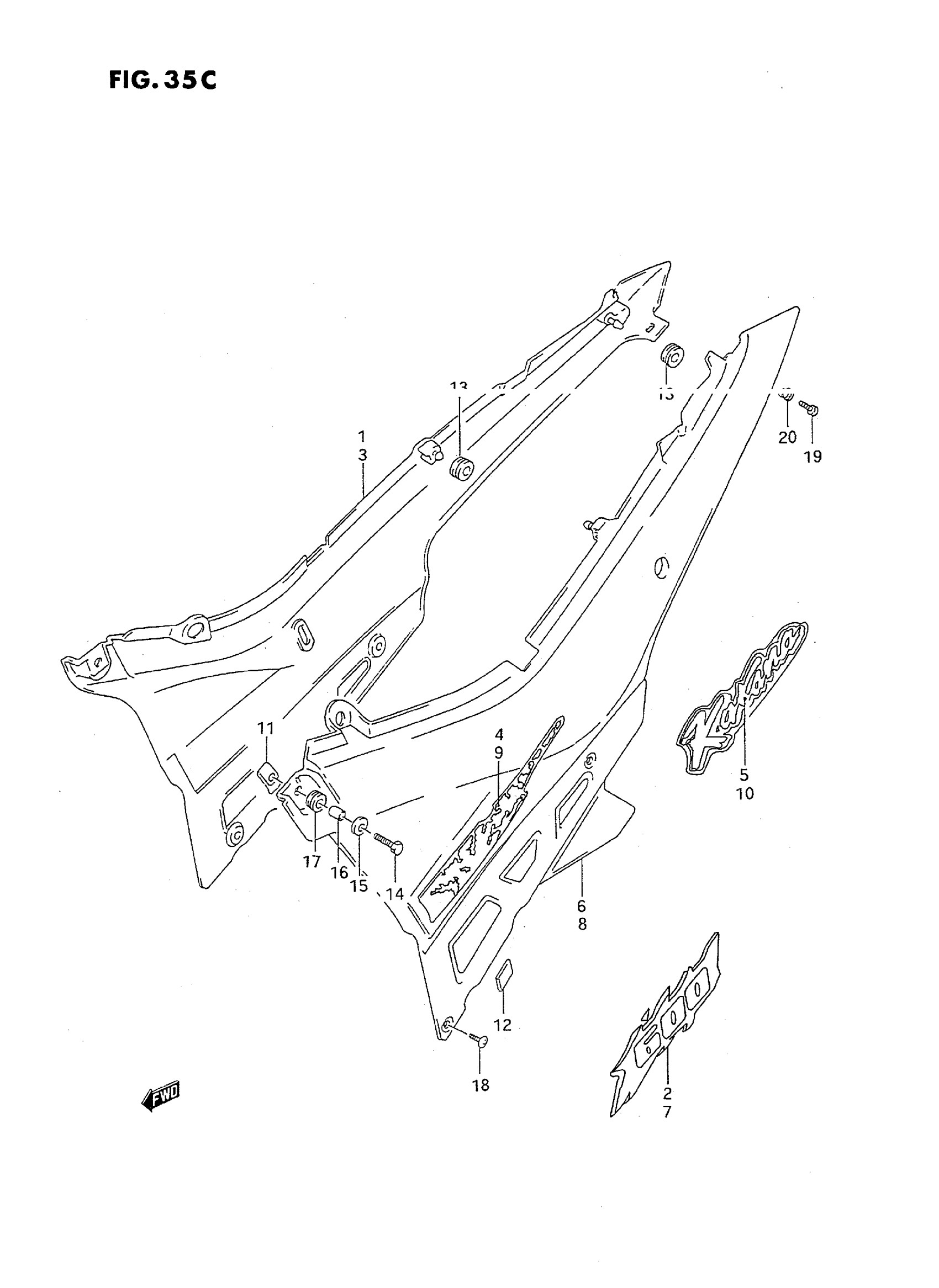

Suzuki GSX600FT (1996) FRAME COVER (MODEL R/S) Diagram

#

Description
Price

1

COVER, FRAME RH | MODEL R FOR 1TY

47110-43C70-A6K

Unavailable

1

COVER, FRAME RH | MODEL R FOR 33J; Includes Item(s) 2 - 2

47110-43C70-3DC

Unavailable

2

EMBLEM | MODEL R FOR A6K

68131-43C10-C3C

Unavailable

2

EMBLEM | MODEL R FOR 3DC

68131-43C10-C3D

Unavailable

3

COVER, FRAME RH (GREEN) | MODEL S

47110-43C90-1ZV

Unavailable

3

COVER, FRAME RH (BLACK) | MODEL S FOR D4A; Includes Item(s) 4 - 5

47110-43C90-33J

Unavailable

4

TAPE, RH | MODEL S FOR 1ZV

68135-43C10-D5D

Unavailable

4

TAPE, RH | MODEL S FOR 33J

68135-43C10-D5C

Unavailable

5

EMBLEM, RH | MODEL S FOR 1ZV

68131-21C20-D5F

Unavailable

5

EMBLEM, RH | MODEL S FOR 33J

68131-21C20-D5E

Unavailable

6

COVER, FRAME LH | MODEL R FOR 1TY

47210-43C70-A6K

Unavailable

6

COVER, FRAME LH | MODEL R FOR 33J; Includes Item(s) 7 - 7

47210-43C70-3DC

Unavailable

7

EMBLEM | MODEL R FOR A6K

68131-43C10-C3C

Unavailable

7

EMBLEM | MODEL R FOR 3DC

68131-43C10-C3D

Unavailable

8

COVER, FRAME LH (GREEN) | MODEL S

47210-43C90-1ZV

Unavailable

8

COVER, FRAME LH (BLACK) | MODEL S FOR D4A; Includes Item(s) 9 - 10

47210-43C90-33J

Unavailable

9

TAPE, LH | MODEL S FOR 1ZV

68145-43C10-D5D

Unavailable

9

TAPE, LH | MODEL S FOR 33J

68145-43C10-D5C

Unavailable

10

EMBLEM, LH | MODEL S FOR 1ZV

68141-43C20-D5F

Unavailable

10

EMBLEM, LH | MODEL S FOR 33J

68141-43C20-D5E

Unavailable

11

PLATE

47153-19C01

$7.95

12

CUSHION

47161-19C00

$3.03

13

CUSHION, REAR

09320-08018

$3.04

14

SCREW, FRONT

09139-06068

Unavailable

15

WASHER (6.5X18X1.6) This part replaces 09160-06057.

09160-06109

$1.49

16

SPACER (6.5X9X9) This part replaces 09180-06011.

09180-06263

$2.03

17

CUSHION

09320-09016

$1.97

18

SCREW, LOWER

09139-05038

$2.06

19

.SCREW This part replaces 02142-05123.

02142-0512A

$1.49

20

WASHER

09169-05009

$2.47

21

COLOR : A6K =

SPECIAL NOTE

Unavailable
