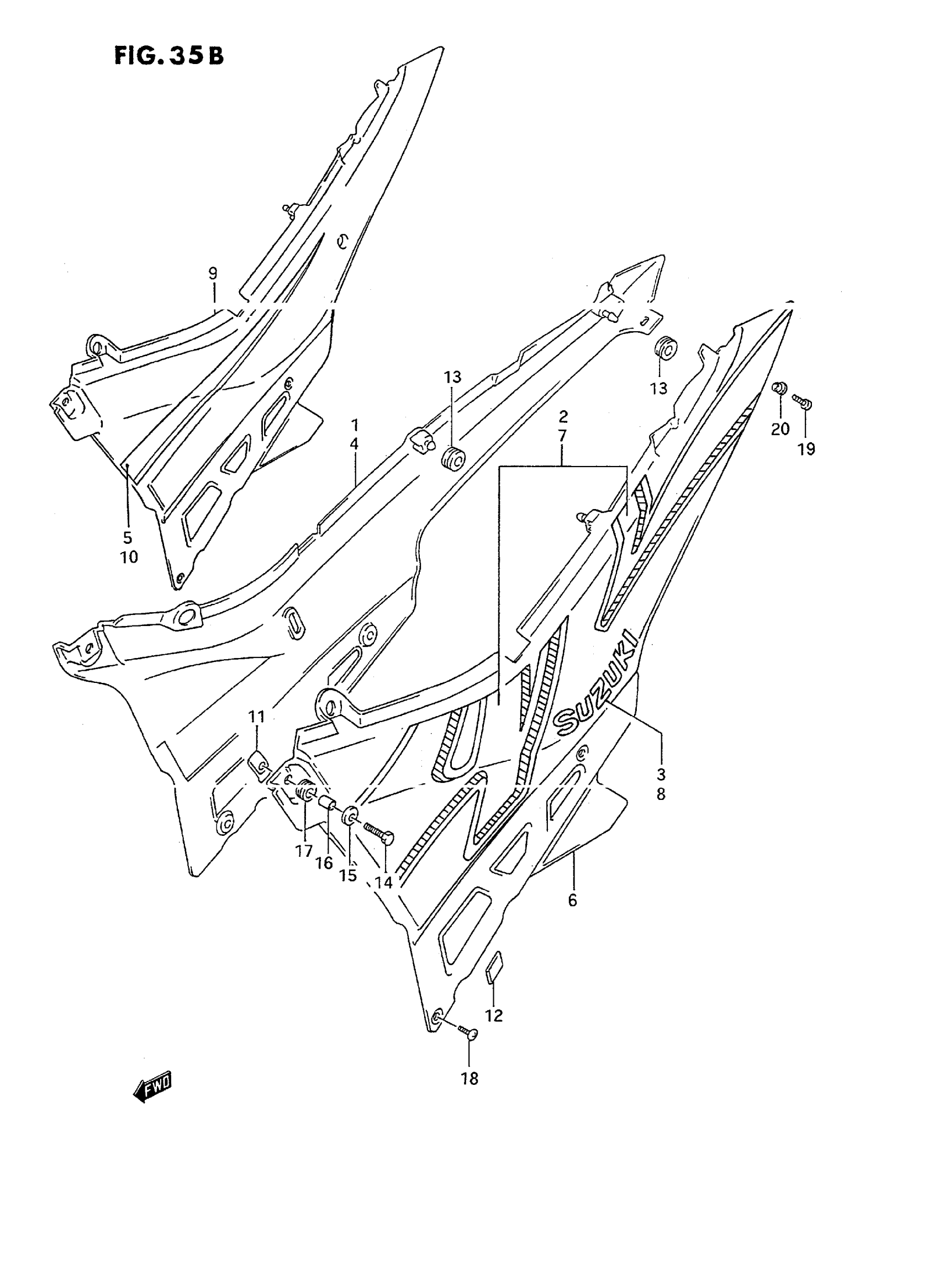

Suzuki GSX600FT (1996) FRAME COVER (MODEL N/P) Diagram

#

Description
Price

1

COVER, FRAME RH | MODEL N

47110-43C50-7TL

Unavailable

1

COVER, FRAME RH | MODEL N; Includes Item(s) 2 - 3

47110-43C50-3DC

Unavailable

2

TAPE SET, FRAME COVER RH | MODEL N FOR 19A

68130-43C00-K42

Unavailable

2

TAPE SET, FRAME COVER RH | MODEL N FOR 33J

68130-43C00-K43

Unavailable

3

EMBLEM (SILVER) | MODEL N

68181-32B00-13L

Unavailable

4

COVER, FRAME RH | MODEL P FOR 1MW

47110-43C60-N88

Unavailable

4

COVER, FRAME RH | MODEL P FOR 36X; Includes Item(s) 5 - 5

47110-43C60-3DC

Unavailable

5

TAPE, RH | MODEL P FOR N88

68135-43C00-A3P

Unavailable

5

TAPE, RH | MODEL P FOR 3DC

68135-43C00-A3N

Unavailable

6

COVER, FRAME LH | MODEL N

47210-43C50-7TL

Unavailable

6

COVER, FRAME LH | MODEL N; Includes Item(s) 7 - 8

47210-43C50-3DC

Unavailable

7

TAPE SET, FRAME COVER LH | MODEL N FOR 19A

68140-43C00-K42

Unavailable

7

TAPE SET, FRAME COVER LH | MODEL N FOR 33J

68140-43C00-K43

Unavailable

8

EMBLEM (SILVER) | MODEL N

68181-32B00-13L

Unavailable

9

COVER, FRAME LH | MODEL P FOR 1MW

47210-43C60-N88

Unavailable

9

COVER, FRAME LH | MODEL P FOR 36X; Includes Item(s) 10 - 10

47210-43C60-3DC

Unavailable

10

TAPE, LH | MODEL P FOR N88

68145-43C00-A3P

Unavailable

10

TAPE, LH | MODEL P FOR 3DC

68145-43C00-A3N

Unavailable

11

PLATE

47153-19C01

$7.95

12

CUSHION

47161-19C00

$3.03

13

CUSHION, REAR

09320-08018

$3.04

14

BOLT This part replaces 09128-06006.

09128-06057

$1.65

15

WASHER (6.5X18X1.6) This part replaces 09160-06057.

09160-06109

$1.49

16

SPACER (6.5X9X9) This part replaces 09180-06011.

09180-06263

$2.03

17

CUSHION

09320-09016

$1.97

18

SCREW, LOWER

09139-05038

$2.06

19

.SCREW This part replaces 02142-05124.

02142-0512A

$1.49

20

WASHER

09169-05009

$2.47

21

COLOR : 7TL =

SPECIAL NOTE

Unavailable
